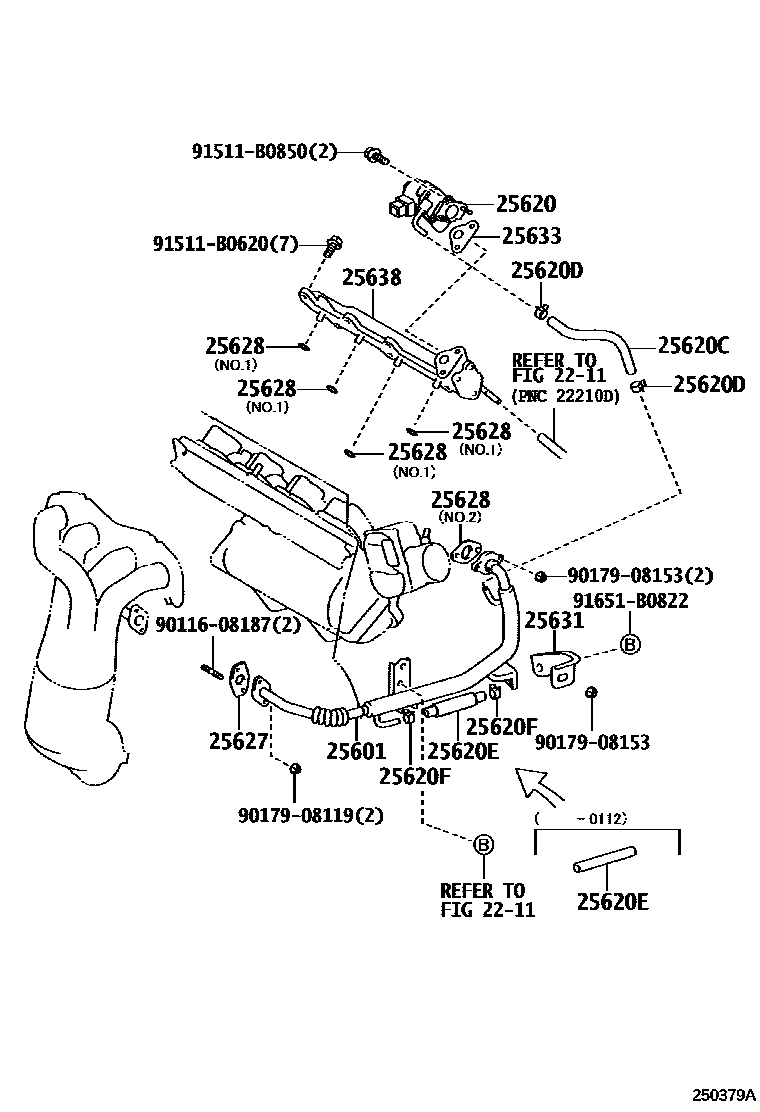

Toyota OPA — EXHAUST GAS RECIRCULATION SYSTEM

2211

25601PIPE SUB-ASSY, EGR, NO.1

main25611-28010i1AZFSE..ACT10200008-200507

sub25611-28011

main25611-28011i1AZFSE..ACT10200507

25620VALVE ASSY, EGR

main25620-28090i1AZFSE..ACT10200008-200205

sub25620-28091

25620CHOSE, WATER BY-PASS, NO.1

main99555-10100i1AZFSE..ACT10200008-200205

25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)

main96135-41300i1AZFSE..ACT10200008-200205

sub96135-51300

25620EHOSE, WATER BY-PASS NO.2

main16264-28070i1AZFSE..ACT10200112-200205

main99555-10200i1AZFSE..ACT10200008-200112

25620FCLIP(FOR WATER BY-PASS HOSE, NO.2)

main96135-41300i1AZFSE..ACT10200008-200205

sub96135-51300

25627GASKET, EGR VALVE

main25627-74080i1AZFSE..ACT10200008-200205

25628GASKET, EGR INLET

main25628-28010i1AZFSE..ACT10200008-200504

main25628-28030i1AZFSE..ACT10200008-200504

25631STAY, EGR PIPE, NO.1

main25631-28010i1AZFSE..ACT10200008-200205

25633GASKET, EGR VALVE

main25633-28010i1AZFSE..ACT10200008-200205

25638CHAMBER, EGR DELIVERY

main25638-28010i1AZFSE..ACT10200008-200205

sub25638-28011

9011608187

main90116-08187

9017908119

main90179-08119

9017908153

main90179-08153

91511B0620

main91511-B0620

91511B0850

main91511-B0850

91651B0822

main91651-B0822

18 parts on this diagram · 1 diagram in section
