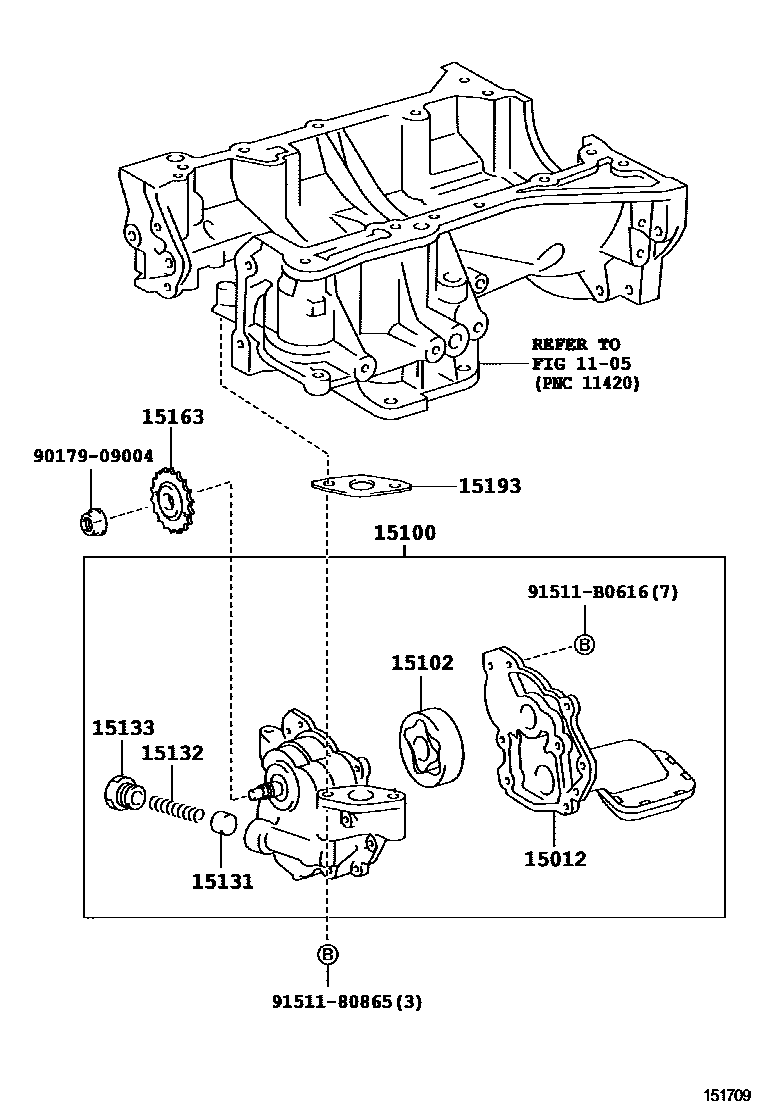

Toyota OPA — ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

1105

15012COVER SUB-ASSY, OIL PUMP

main15012-28030i1AZFSE..ACT10200008-200205

15100PUMP ASSY, OIL

main15100-22040i1ZZFE..ZCT1#200004-200206

sub15100-22041

main15100-22041i1ZZFE..ZCT1#200206

main15100-28030i1AZFSE..ACT10200008-200205

15102ROTOR SET, OIL PUMP

main15102-28030i1AZFSE..ACT10200008-200205

15131VALVE, OIL PUMP RELIEF

main15131-24010i1ZZFE..ZCT1#200004-200205

main15131-46040i1AZFSE..ACT10200008-200205

15132SPRING, OIL PUMP RELIEF VALVE

main15132-22040i1ZZFE..ZCT1#200004-200205

main15132-28020i1AZFSE..ACT10200008-200505

main15132-46020i1AZFSE..ACT10200505

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1ZZFE..ZCT1#200004-200205

main15133-28020i1AZFSE..ACT10200008-200205

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i1AZFSE..ACT10200008-200205

15193GASKET, OIL PUMP

main15193-28010i1AZFSE..ACT10200008-200205

main15197-22010i1ZZFE..ZCT1#200004-200205

9017909004

main90179-09004

9151180865

main91511-80865

91511B0616

main91511-B0616

12 parts on this diagram · 4 diagrams in section
