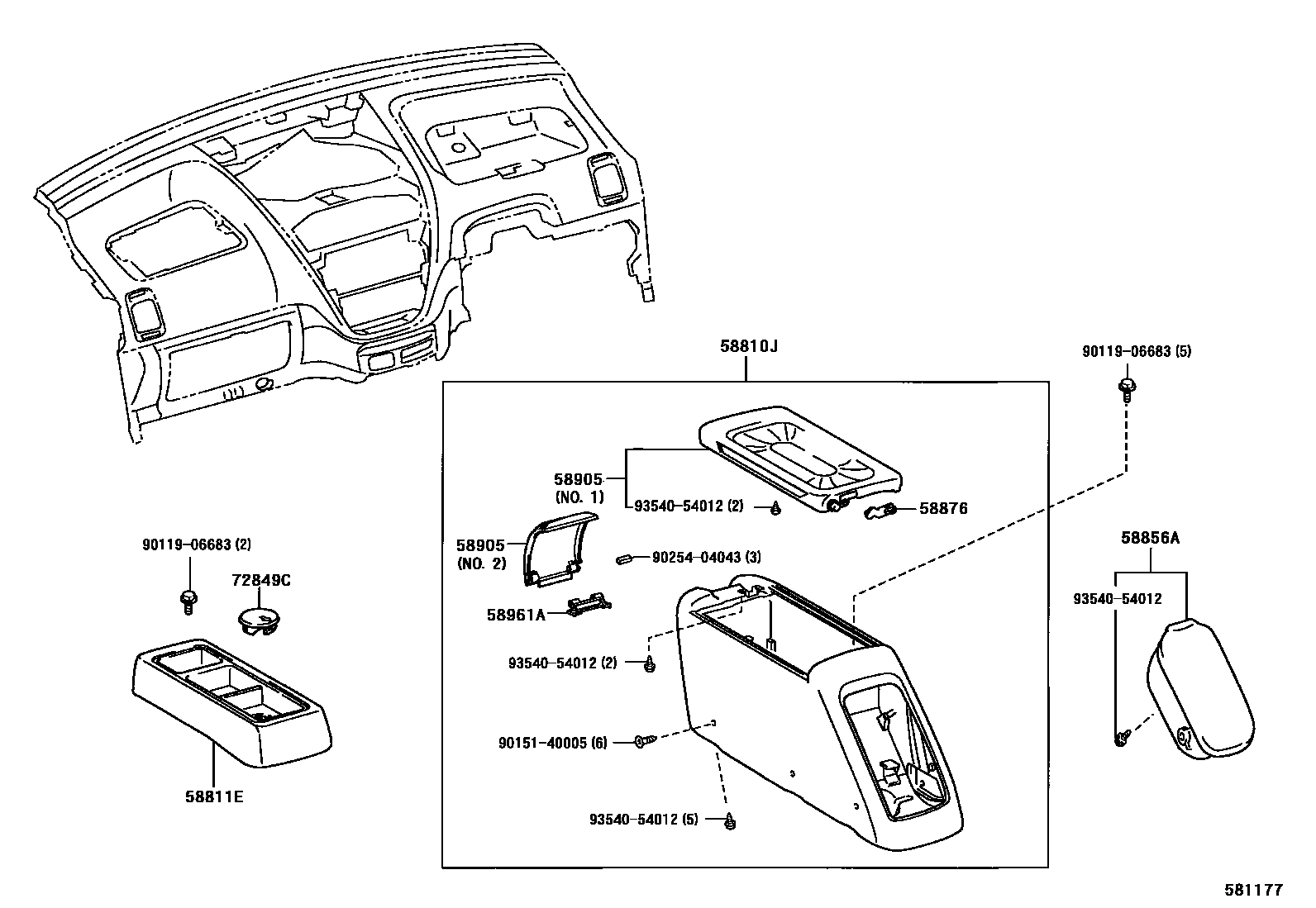

Toyota OPA — CONSOLE BOX & BRACKET

0001 1 0002 1

58810JBOX ASSY, CONSOLE

main58810-63010-B0iACT10,ZCT1#200004-200205

LT.GRAY,TRIM1#

58811EBOX, CONSOLE, UPPER

main58811-63020-B0iACT10,ZCT1#..A200004-200205

LT.GRAY,TRIM1#

main58811-63030-B0iACT10,ZCT1#200205

LT.GRAY,TRIM1#

58856AHOLDER, CONSOLE BOX

main58805-63010-B0iACT10,ZCT1#200004-200205

LT.GRAY,TRIM1#

58876ARM, CONSOLE UPPER PANEL

main58876-63010iACT10,ZCT1#200004-200205

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-63010-B0iACT10,ZCT1#200004-200205

main58951-63020-B0iACT10,ZCT1#200004-200205

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-63010-B0iACT10,ZCT1#200004-200205

LT.GRAY,TRIM1#

72849CCAP, SEAT ARMREST, NO.2

main72849-44010-B1iACT10,ZCT1#..A200004-200205

LT.GRAY,TRIM1#

9011906683

main90119-06683

9015140005

main90151-40005

9025404043

main90254-04043

9354054012

main93540-54012

11 parts on this diagram · 2 diagrams in section
