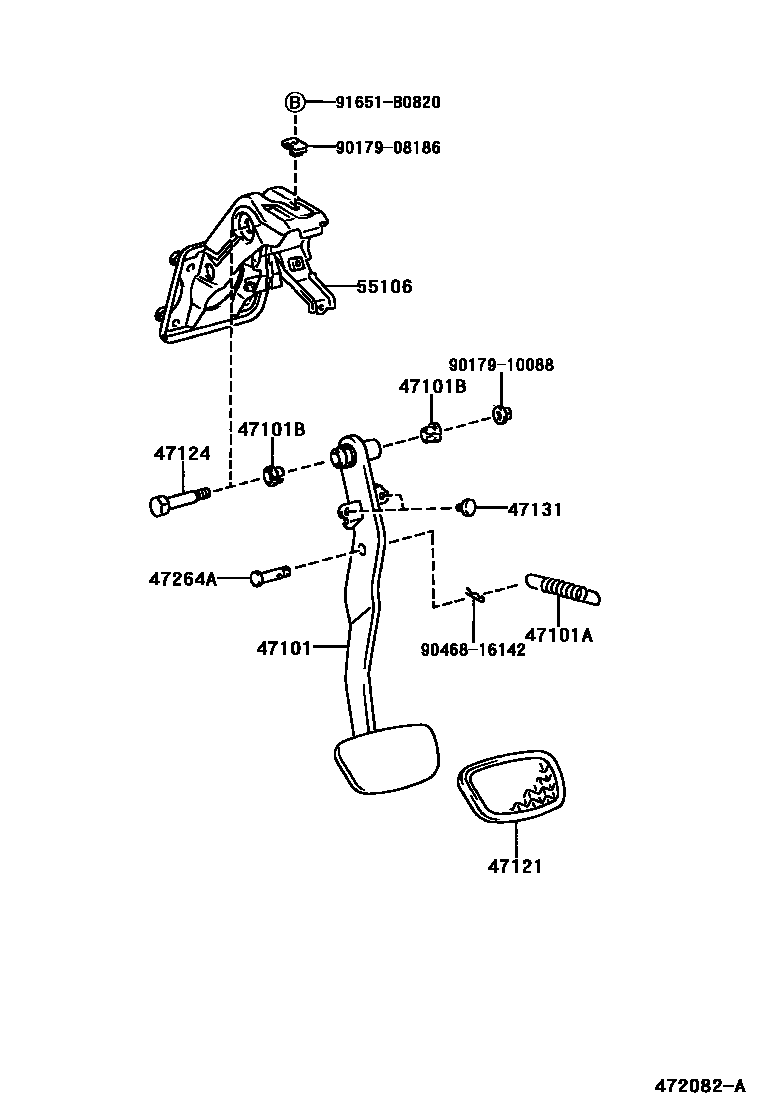

Toyota OPA — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-32190iACT10,ZCT1#200004-200205

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-06053iACT10,ZCT1#200004-200205

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iACT10,ZCT1#200004-200205

47121PAD, BRAKE PEDAL

main47121-50010iACT10,ZCT1#200004-200205

47124SHAFT, BRAKE PEDAL

main90109-10167iACT10,ZCT1#200004-200205

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06049iACT10,ZCT1#200004-200205

47264APIN(FOR PUSH ROD)

main90249-08051iACT10,ZCT1#200004-200205

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-32080iACT10,ZCT1#200004-200205

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

91651B0820

main91651-B0820

12 parts on this diagram · 1 diagram in section
