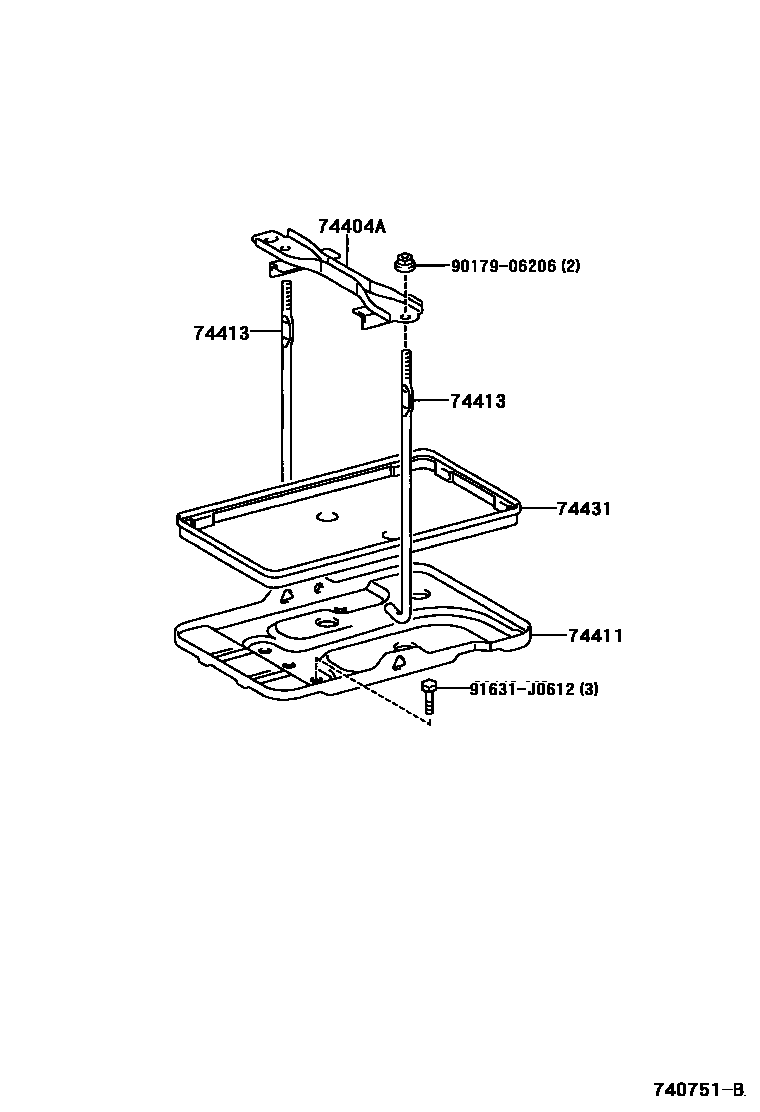

Toyota OPA — BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-63010iACT10,ZCT1#200004-200205

74411CARRIER, BATTERY

main74411-63010iACT10,ZCT1#200004-200112

sub74411-63020

main74411-63020iACT10,ZCT1#200112-200205

74413BOLT, BATTERY CLAMP

main74451-20060iACT10,ZCT1#200004-200205

74431TRAY, BATTERY

main74431-12060iACT10,ZCT1#200004-200307

main74431-20120iACT10,ZCT1#200307

9017906206

main90179-06206

91631J0612

main91631-J0612

6 parts on this diagram · 1 diagram in section
