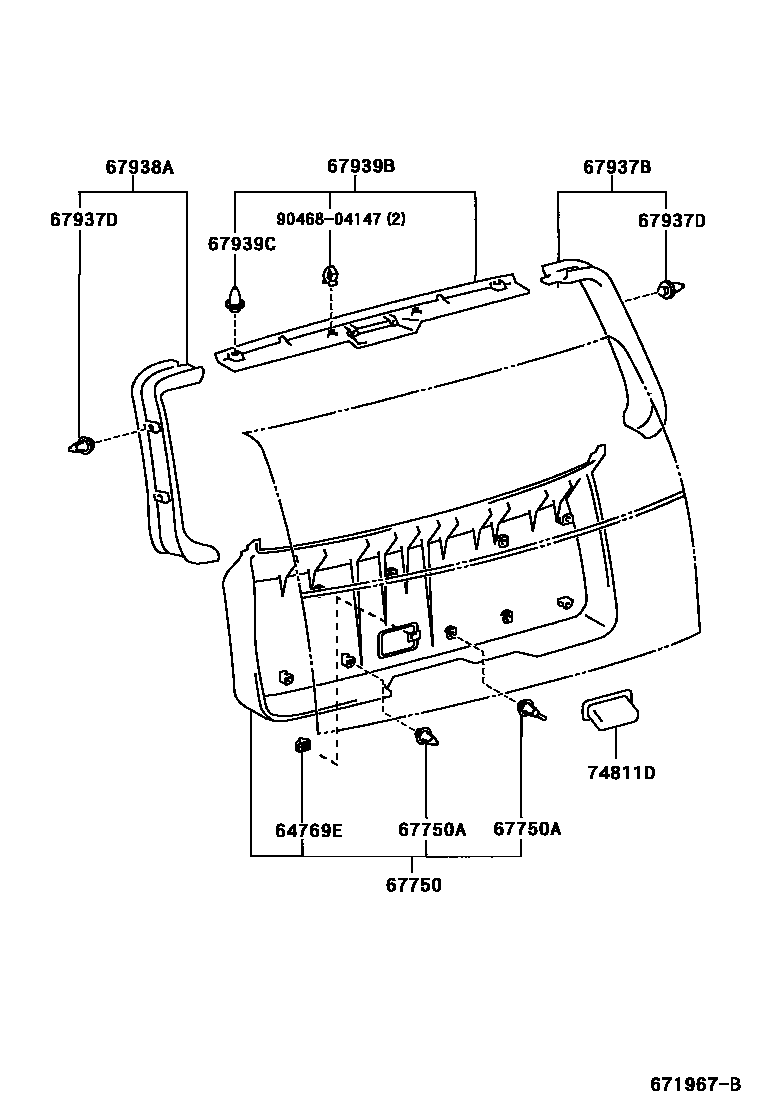

Toyota OPA — BACK DOOR PANEL & GLASS

0001 1 0002 1

64769EKNOB, JACK COVER

main64769-20010-B2iACT10,ZCT1#..I200205

sub64769-20010

main64769-20010-B2iACT10,ZCT1#200004-200205

DK.GRAY,TRIM1#

sub64769-20010

main64769-20010-B4iACT10,ZCT1#200205

sub64769-20010

67750BOARD ASSY, BACK DOOR TRIM

main67750-63010-B0iACT10,ZCT1#200004-200205

DARK GRAY,TRIM1#

main67750-63010-B0iACT10,ZCT1#..I200205

main67750-63010-B1iACT10,ZCT1#200205

67750ACLIP(FOR BACK DOOR TRIM)

main67771-12050iACT10,ZCT1#200004-200205

main90467-10151iACT10,ZCT1#200004-200205

67937BGARNISH, BACK DOOR SIDE, RH

main67937-63010-B0iACT10,ZCT1#200004-200205

LT. GRAY,TRIM1#

sub67937-63010

main67937-63010-B1iACT10,ZCT1#200205

LT. GRAY,TRIM1#

sub67937-63010

67937DRETAINER, DOOR TRIM

main67771-30070iACT10,ZCT1#200004-200205

67938AGARNISH, BACK DOOR SIDE, LH

main67938-63010-B0iACT10,ZCT1#200004-200205

LT. GRAY,TRIM1#

sub67938-63010

main67938-63010-B1iACT10,ZCT1#200205

LT. GRAY,TRIM1#

sub67938-63010

67939BGARNISH, BACK DOOR, CENTER

main67939-63010-B0iACT10,ZCT1#200004-200205

LT. GRAY,TRIM1#

sub67939-63010

main67939-63010-B1iACT10,ZCT1#200205

LT. GRAY,TRIM1#

sub67939-63010

67939CCLIP(FOR BACK DOOR CENTER GARNISH)

main67771-35010iACT10,ZCT1#200004-200205

sub67771-42010

74811DHANDLE, DOOR PULL

main74811-13010-C0iACT10,ZCT1#200004-200205

BLACK,TRIM1#

sub74811-13010

9046804147

main90468-04147

10 parts on this diagram · 2 diagrams in section
