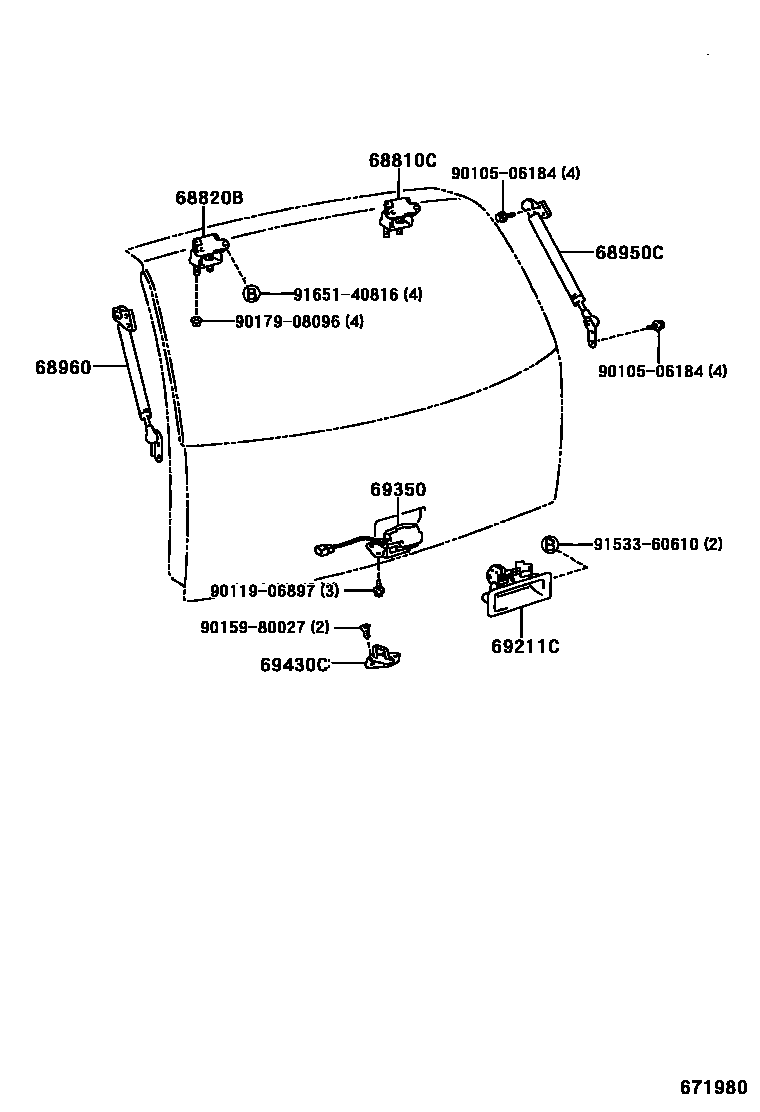

Toyota OPA — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iACT10,ZCT1#200212

main68810-44010iACT10,ZCT1#200004-200211

68820BHINGE ASSY, BACK DOOR, LH

main68810-21050iACT10,ZCT1#200212

main68810-44010iACT10,ZCT1#200004-200211

68950CSTAY ASSY, BACK DOOR, RH

main68950-63010iACT10,ZCT1#200004-200205

68960STAY ASSY, BACK DOOR, LH

main68960-63010iACT10,ZCT1#200004-200205

69211CHANDLE, BACK DOOR OUTSIDE

main69023-63010-A0iACT10,ZCT1#200004-200108

SUPER WHITE 2,040

main69023-63010-A1iACT10,ZCT1#200108-200205

SU. WHITE PM.,051

main69023-63010-B0iACT10,ZCT1#200004-200205

SILVER ME.,1C0

main69023-63010-C0iACT10,ZCT1#200004-200205

BLACK MC.,209

main69023-63010-D0iACT10,ZCT1#200004-200205

RED MC.,3M8

main69023-63010-D1iACT10,ZCT1#200101-200108

PALE ROSE ME.OP.,3N7

main69023-63010-D2iACT10,ZCT1#200205

RED M.M.,3N8

main69023-63010-E0iACT10,ZCT1#200205

BEIGE ME.,4P7

main69023-63010-F0iACT10,ZCT1#200004-200205

CHAMPAGNE ME.,586

main69023-63010-G0iACT10,ZCT1#200205

JADE GREEN M.M.,6S9

main69023-63010-J0iACT10,ZCT1#200004-200101

DK.BLUE M.M.,8P4

main69023-63010-J1iACT10,ZCT1#200101-200205

BLUE M.M.,8P5

69350LOCK ASSY, BACK DOOR

main69350-63010iACT10,ZCT1#200004-200205

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-32070iACT10,ZCT1#200004-200205

9010506184

main90105-06184

9011906897

main90119-06897

9015980027

main90159-80027

9017908096

main90179-08096

9153360610

main91533-60610

9165140816

main91651-40816

13 parts on this diagram · 1 diagram in section
