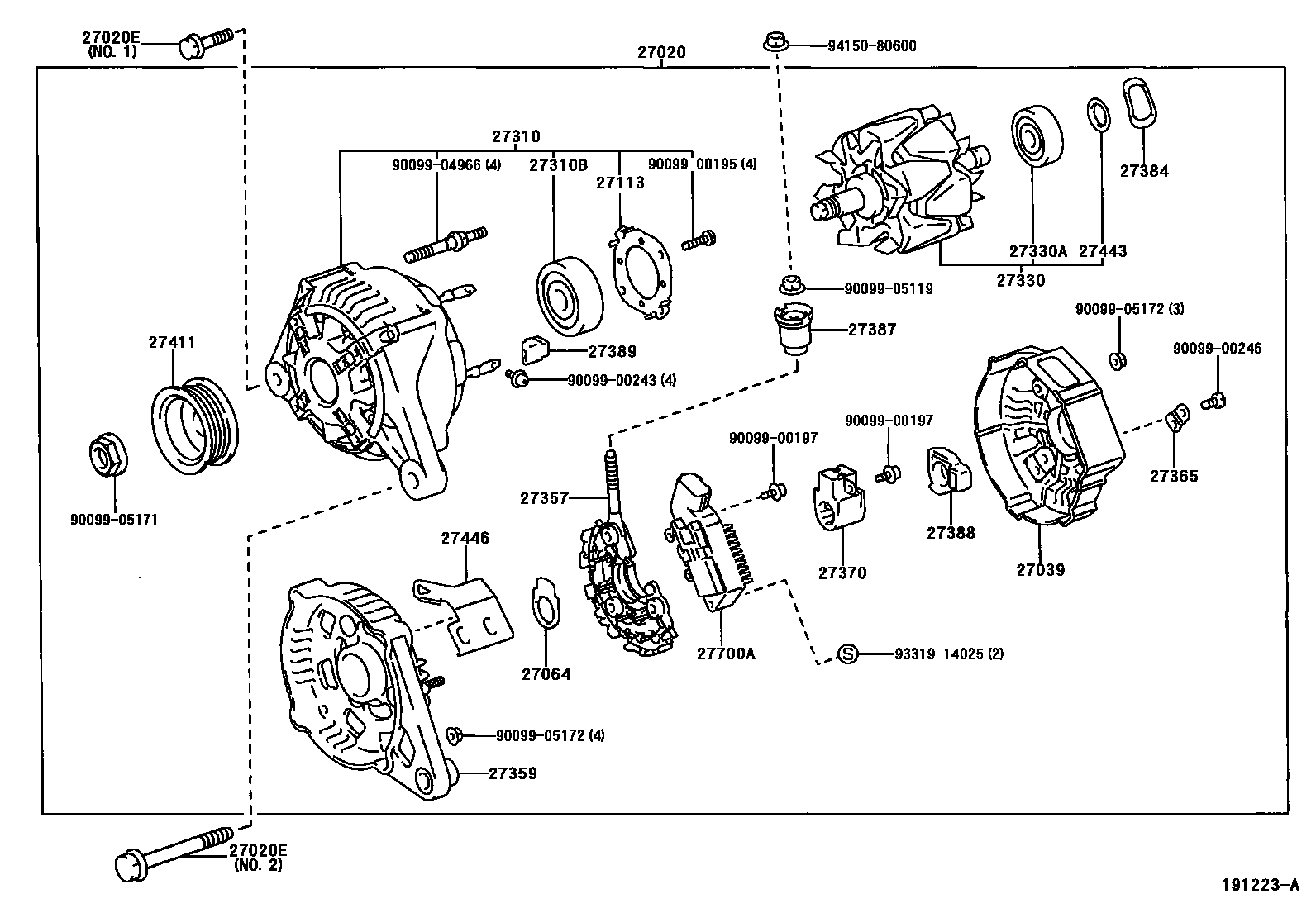

Toyota OPA — ALTERNATOR

0001 112V 80A 0002 112V 90A 0003 112V 80A 0004 112V 90A

27020ALTERNATOR ASSY

main27060-22150i1ZZFE..ZCT1#200004-200205

main27060-22220i1ZZFE..ZCT1#200205

main27060-28120i1AZFSE..ACT10200008-200205

sub27060-28110

main27060-28210i1AZFSE..ACT10200205

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1ZZFE..ZCT1#200004-200205

main91511-60840i1AZFSE..ACT10200008-200205

sub91511-J0840

main91511-80830i1ZZFE..ZCT1#200004-200205

main91511-J0840i1AZFSE..ACT10200205

main91512-81085i1AZFSE..ACT10200008-200205

27039COVER, ALTERNATOR REAR END

main27039-20020i1AZFSE..ACT10200008-200101

sub27039-28090

main27039-22050i1ZZFE..ZCT1#200101-200205

main27039-28090i1AZFSE..ACT10200101-200205

main27039-46190i1ZZFE..ZCT1#200004-200101

sub27039-22050

27064SEAL, ALTERNATOR PLATE

main27064-42010i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-22060i1ZZFE..ZCT1#200004-200205

main27310-28090i1AZFSE..ACT10200008-200205

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10219i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

27330ROTOR ASSY, ALTERNATOR

main27330-74550i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22050i1ZZFE..ZCT1#200004-200205

main27357-22070i1AZFSE..ACT10200008-200205

27359FRAME, ALTERNATOR RECTIFIER END

main27359-22040i1ZZFE..ZCT1#200004-200205

main27359-28090i1AZFSE..ACT10200008-200205

27365PLATE, TERMINAL

main27365-55080i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

27384WASHER

main27384-50030i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

27387INSULATOR, TERMINAL

main27387-42021i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

27388COVER, ALTERNATOR BRUSH

main27388-42010i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

27389INSULATOR, TERMINAL

main27389-42010i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

27411PULLEY, ALTERNATOR

main27411-28090i1AZFSE..ACT10200008-200205

main27411-50050i1ZZFE..ZCT1#200004-200205

main27411-50190i1ZZFE..ZCT1#200205

27443COVER, ALTERNATOR BEARING

main27443-63020i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

27446CLIP, ALTERNATOR CORD

main27446-28060i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

27700AREGULATOR ASSY, GENERATOR

main27700-20050i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

main27700-21040i1AZFSE,1ZZFE..ACT10,ZCT1#200205

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9331914025

main93319-14025

9415080600

main94150-80600

31 parts on this diagram · 4 diagrams in section
