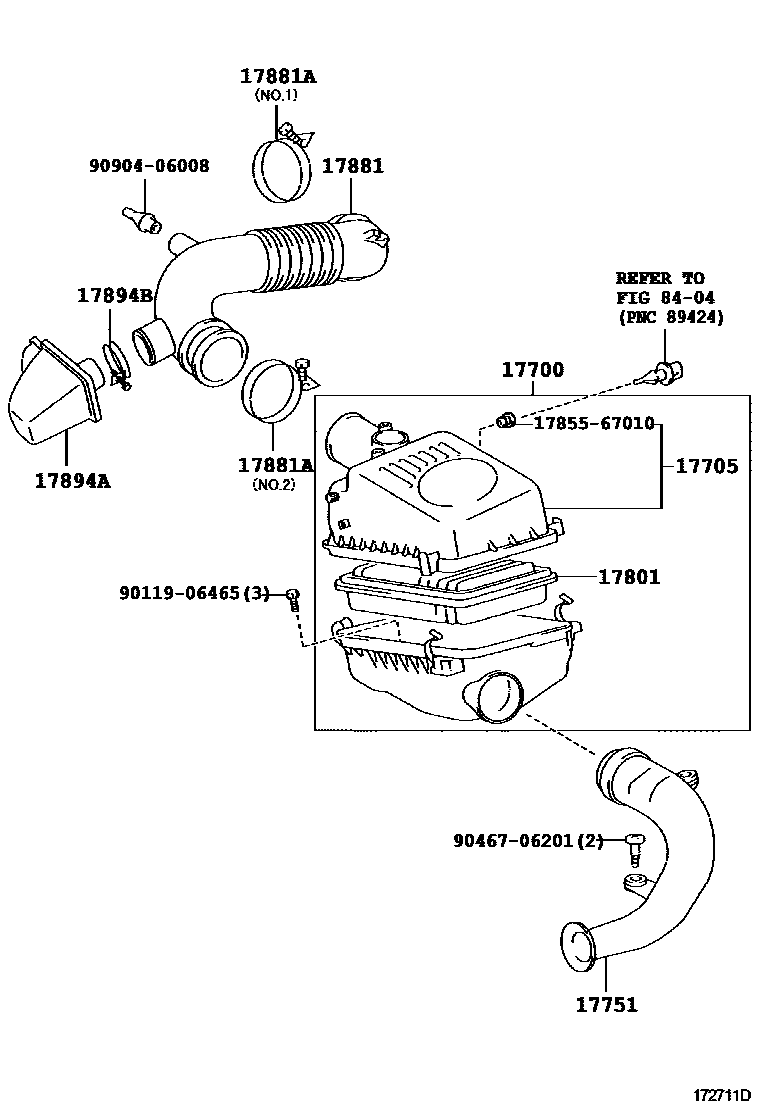

Toyota OPA — AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-22140i1ZZFE..ZCT1#200004-200205

sub17700-22120

main17700-28110i1AZFSE..ACT10200008-200205

17705CAP SUB-ASSY, AIR CLEANER

main17705-22140i1ZZFE..ZCT1#200004-200205

sub17705-22120

main17705-28070i1AZFSE..ACT10200008-200205

17751INLET, AIR CLEANER, NO.1

main17751-22080i1AZFSE..ACT10200004-200205

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-22020i1ZZFE..ZCT1#200004-200205

17881HOSE, AIR CLEANER, NO.1

main17881-22080i1ZZFE..ZCT1#200004-200205

main17881-28060i1AZFSE..ACT10200008-200205

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10730i1AZFSE..ACT10200008-200205

main96111-10800i1AZFSE..ACT10200008-200205

main96111-10800i1ZZFE..ZCT1#200004-200205

17894ARESONATOR, INTAKE AIR, NO.2

main17894-16060i1AZFSE..ACT10200008-200205

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10500i1AZFSE..ACT10200008-200205

8404

1785567010GASKET, AIR INLET DUCT, NO.1

main17855-67010

9011906465

main90119-06465

9046706201

main90467-06201

9090406008

main90904-06008

13 parts on this diagram · 2 diagrams in section
