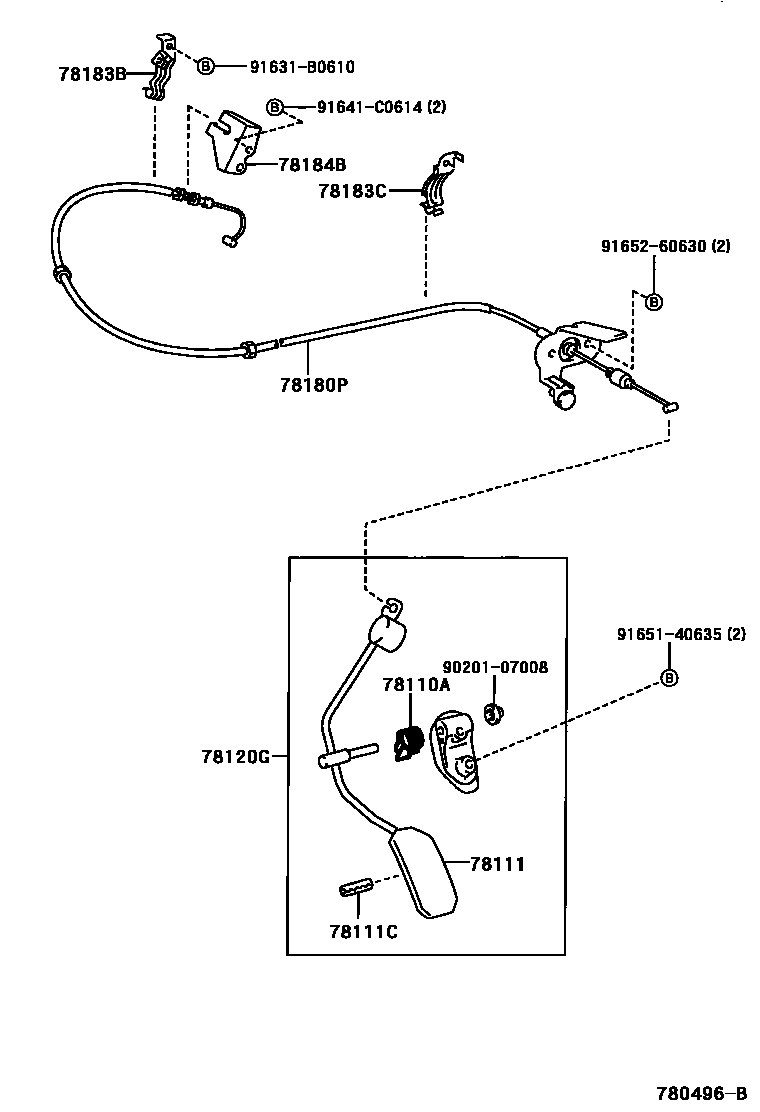

Toyota OPA — ACCELERATOR LINK

0001 1 0002 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03194iZCT1#200205

78111PEDAL, ACCELERATOR

main78111-32020iACT10,ZCT1#200004-200205

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iACT10,ZCT1#200205

78120GROD ASSY, ACCELERATOR PEDAL

main78010-63010iACT10200008-200205

main78120-32170iZCT1#200004-200205

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-63010iZCT1#200004-200205

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-63010iZCT1#200205

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-63020iZCT10200205

main78183-63030iZCT15200004-200205

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12360iZCT1#200004-200205

9020107008

main90201-07008

91631B0610

main91631-B0610

91641C0614

main91641-C0614

9165140635

main91651-40635

9165260630

main91652-60630

13 parts on this diagram · 2 diagrams in section
