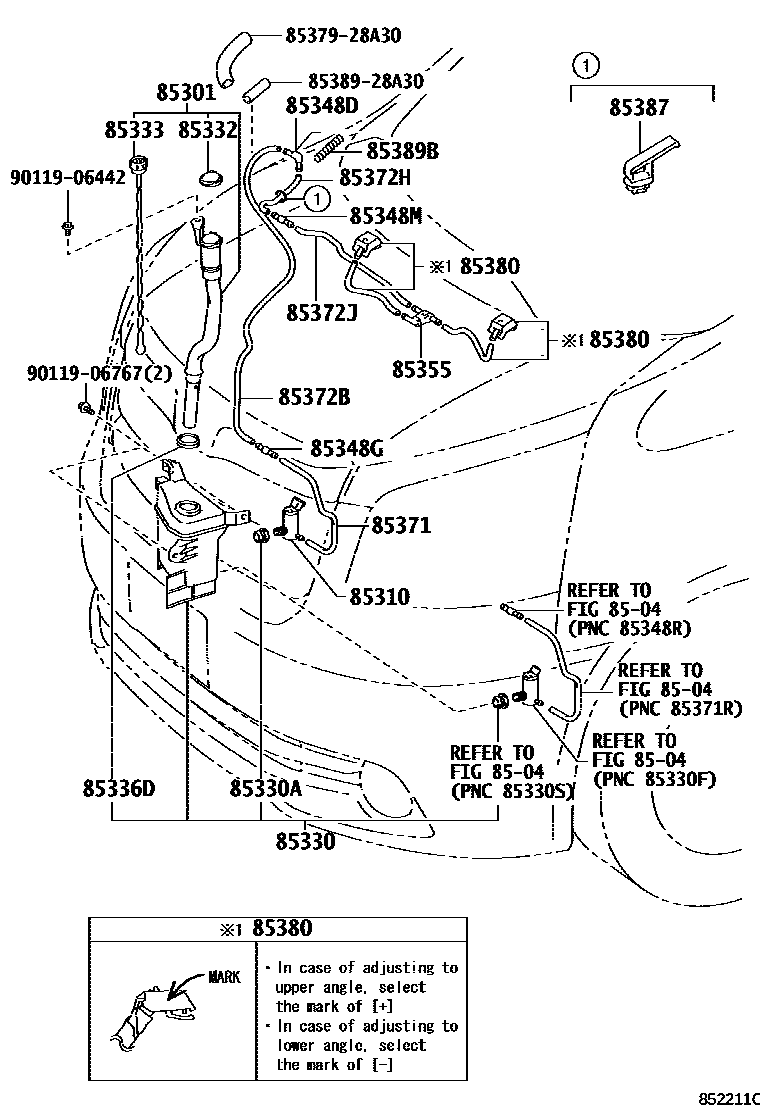

Toyota NOAH — WINDSHIELD WASHER

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-28090i200808-201401

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-28090i200808-201612

85330JAR ASSY, WINDSHIELD WASHER

main85315-44060i200808-201401

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i200808-201401

85332CAP, WINDSHIELD WASHER JAR

main85386-28040i200808-201612

85333FILTER, WINDSHIELD WASHER JAR

main85312-28030i200808-201612

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i200808-201401

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200i200808-201401

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i200808-201401

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i200808-201004

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i200808-201004

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200808-201401

L=1450(*H,L=270)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200808-201401

L=1800(*H,L=720)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i200808-201401

L=1450(*H,L=120)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001i200808-201004

L=1800(*H,L=670)

85380NOZZLE & HOSE ASSY, FR WASHER

main85380-28160i200808-201612

MARK +1

main85380-28170i200808-201612

MARK +3

main85380-28180i200808-201612

MARK -1

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-60610i200808-201401

85389BPROTECTOR, WINDSHIELD WASHER

main85389-22660i200808-201401

8537928A30JOINT

main85379-28A30

8538928A30PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-28A30

9011906442

main90119-06442

9011906767

main90119-06767

23 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota NOAH

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota NOAH. Key components include: REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
