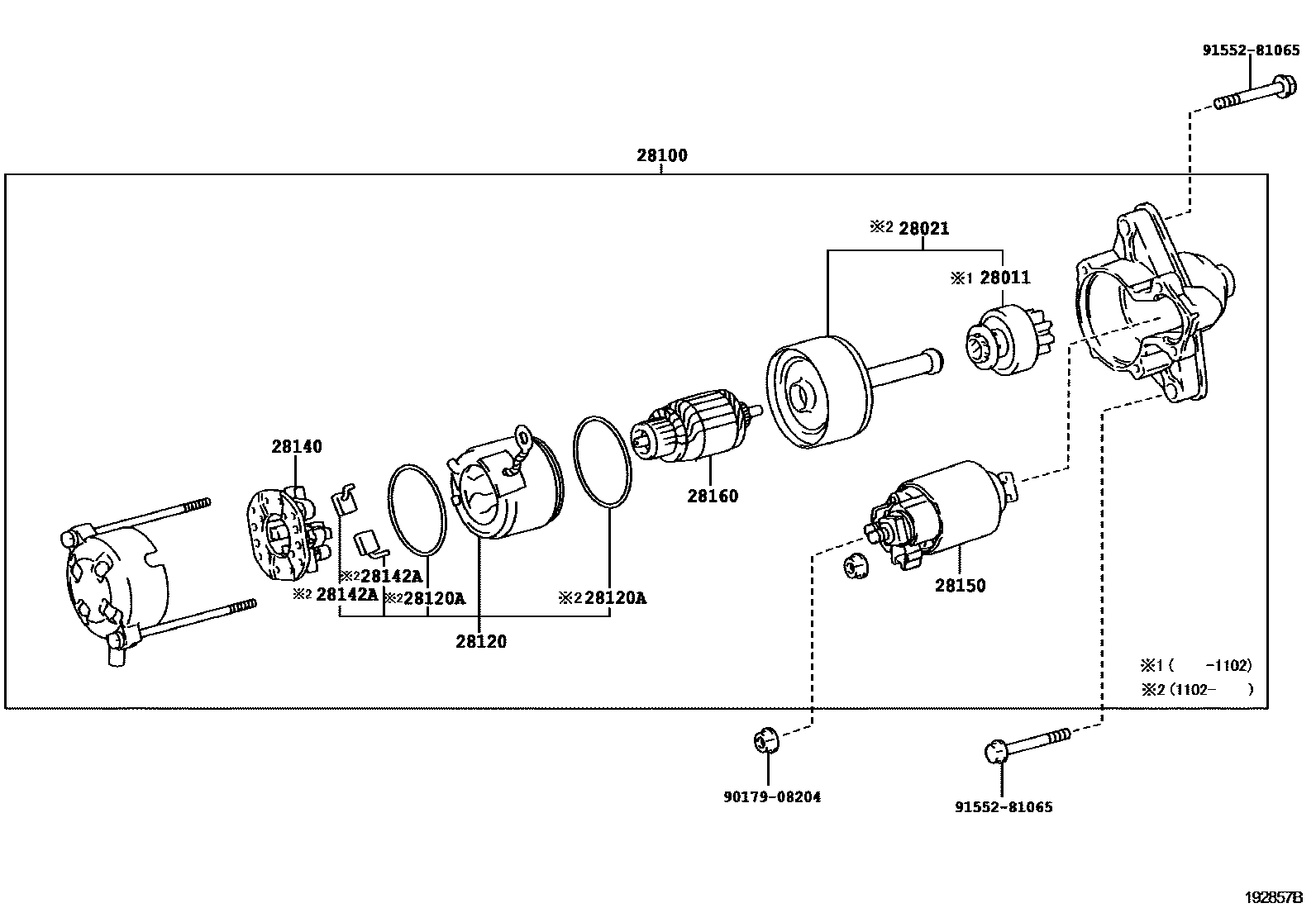

Toyota NOAH — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i3ZRFE..ZRR70200808-201004

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-70020i3ZRFAE..ZRR70201102

28100STARTER ASSY

main28100-37030i3ZRFE..ZRR70200808-200906

12V 1.0KW

main28100-37031i3ZRFE..ZRR70200907-201004

12V 1.0KW

main28100-37032i3ZRFAE..ZRR70201409

12V 1.0KW

28120YOKE ASSY, STARTER

main28120-40130i3ZRFAE..ZRR70201004

main28120-70050i3ZRFE..ZRR70200808-200907

28120ARING, O(FOR STARTER YOKE)

main90099-14092×2i3ZRFAE..ZRR70201102

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i3ZRFE..ZRR70200808-201004

28142ASTARTER KIT

main28142-70020×2i3ZRFAE..ZRR70201102

28150SWITCH ASSY, MAGNET STARTER

main28150-22100i3ZRFE..ZRR70200808-201004

28160ARMATURE ASSY, STARTER

main28160-70050i3ZRFE..ZRR70200808-201004

9017908204

main90179-08204

9155281065

main91552-81065

11 parts on this diagram · 1 diagram in section
