Toyota NOAH — SIDE WINDOW

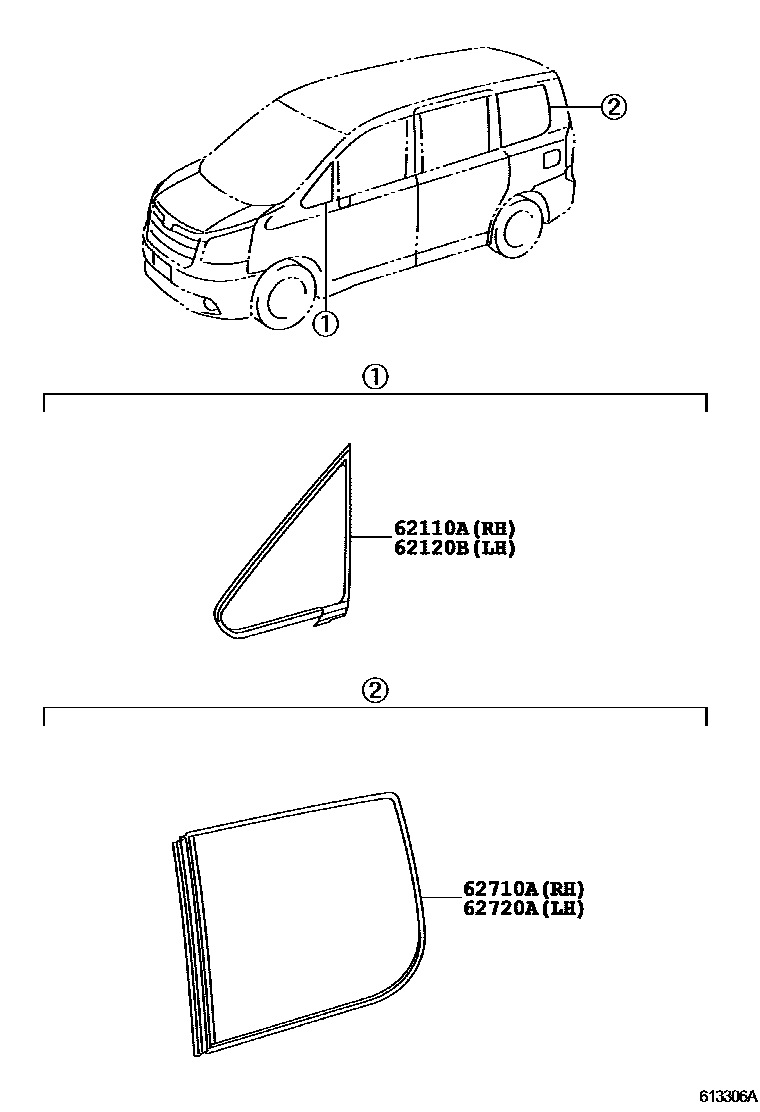

Parts diagram

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-28070i200808-201004

main62110-28071i201209-201401

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-28200i200808-201004

main62120-28201i201209-201401

62710AWINDOW ASSY, QUARTER, RH

main62710-28550i200808-201004

*UVCT,T=3.1,GREEN

main62710-28551i201209-201401

*UVCT,T=3.1,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-28280i200808-201004

*UVCT,T=3.1,GREEN

main62720-28281i201209-201401

*UVCT,T=3.1,GREEN

4 parts on this diagram · 1 diagram in section
