Toyota NOAH — REAR DOOR WINDOW REGULATOR & HINGE

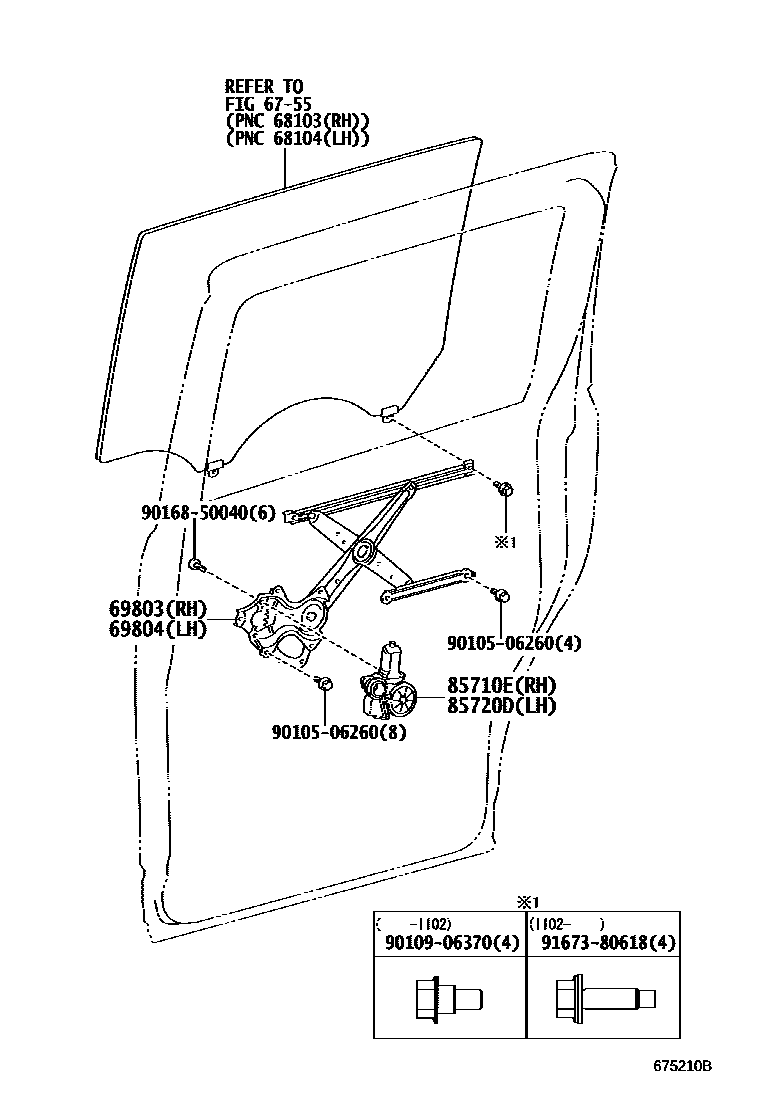

Parts diagram

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-28040i200808-201004

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-28100i200808-201004

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-28150i200808-200908

main85710-28151i200909-201004

main85710-28153i201303-201401

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-28140i200808-200908

main85720-28141i200909-201004

main85720-28143i201303-201401

9010506260

main90105-06260

9010906370

main90109-06370

9016850040

main90168-50040

9167380618

main91673-80618

9 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota NOAH

This section contains 9 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota NOAH. Key components include: REAR DOOR PANEL & GLASS, REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH, REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH, MOTOR ASSY, POWER WINDOW REGULATOR, RH, MOTOR ASSY, POWER WINDOW REGULATOR, LH.
