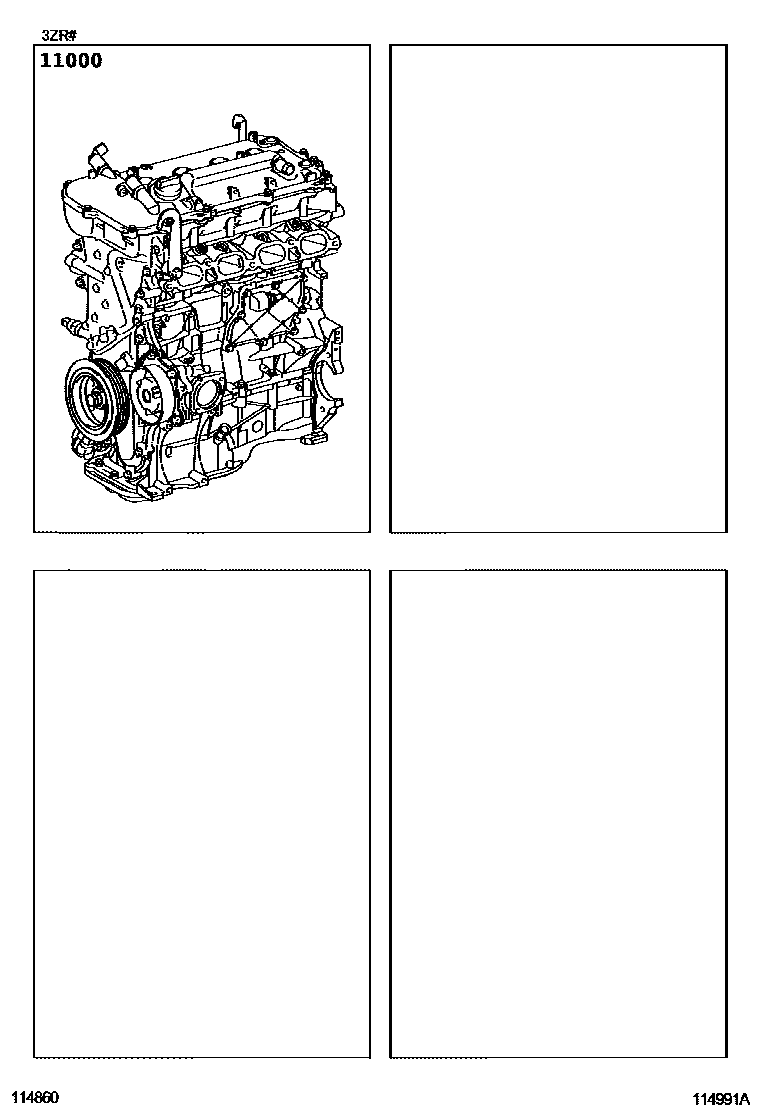

Toyota NOAH — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-37291i200808-201004

main19000-37362i201004-201505

main19000-37364i201505

1 parts on this diagram · 1 diagram in section
