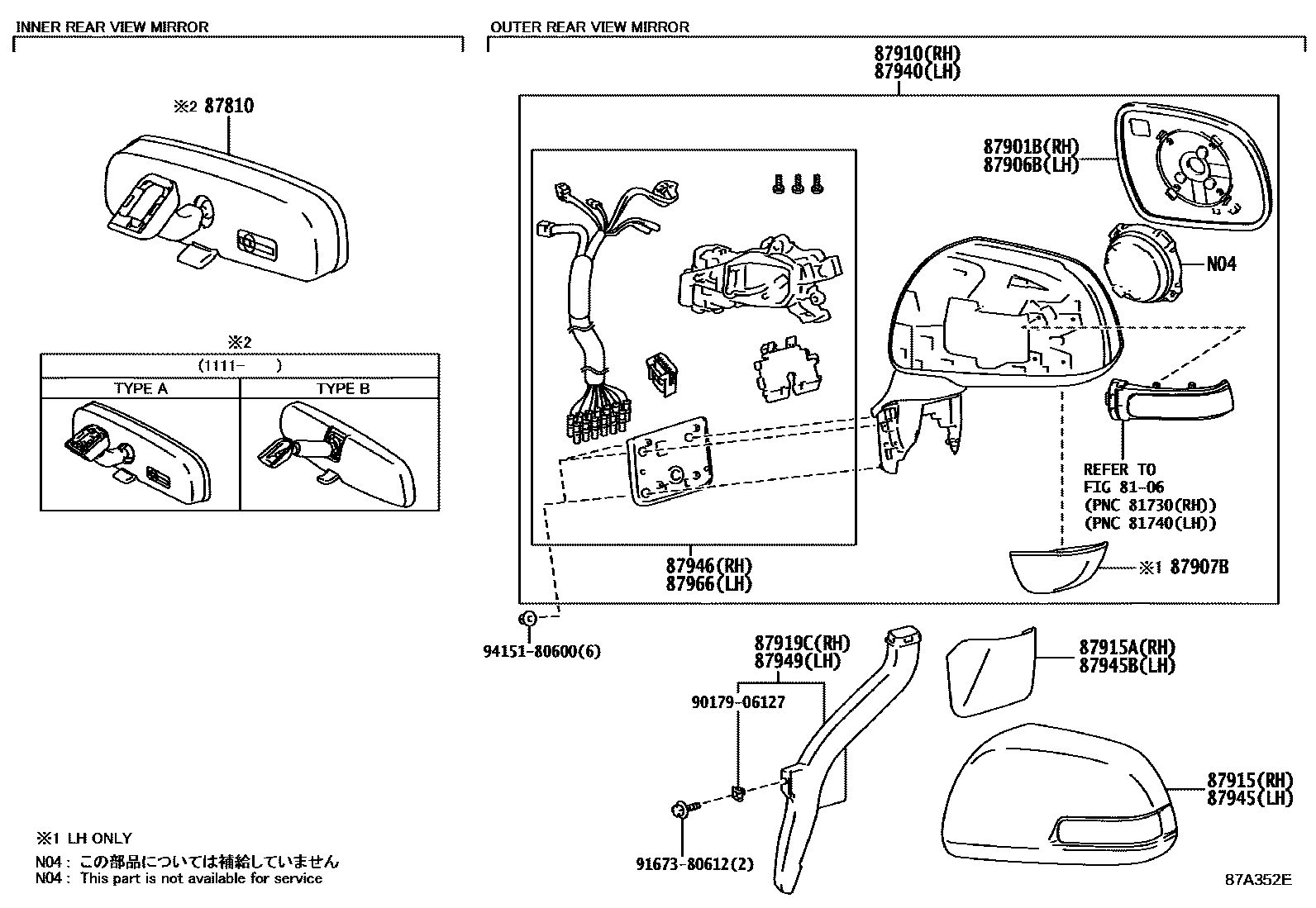

Toyota NOAH — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
TYPE B:REFER ILLUST.
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87907BDEVICE SUB-ASSY,FRONT FENDER SIDE VIEW,LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
87915ACOVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DK. RED M.M.,3Q3
SILKY GOLD M.M.,5A4
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
LT.BLUE M.M.,8S1
DK.VIOLET M.M.,9AF
87919CGUIDE, OUTER MIRROR WIRE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
87945BCOVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DK. RED M.M.,3Q3
SILKY GOLD M.M.,5A4
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
LT.BLUE M.M.,8S1
DK.VIOLET M.M.,9AF
87946RETRACTOR, OUTER MIRROR, RH
87949GUIDE, OUTER MIRROR WIRE, LH
87966RETRACTOR, OUTER MIRROR, LH
9017906127
main90179-06127
9167380612
main91673-80612
9415180600
main94151-80600
18 parts on this diagram · 1 diagram in section
