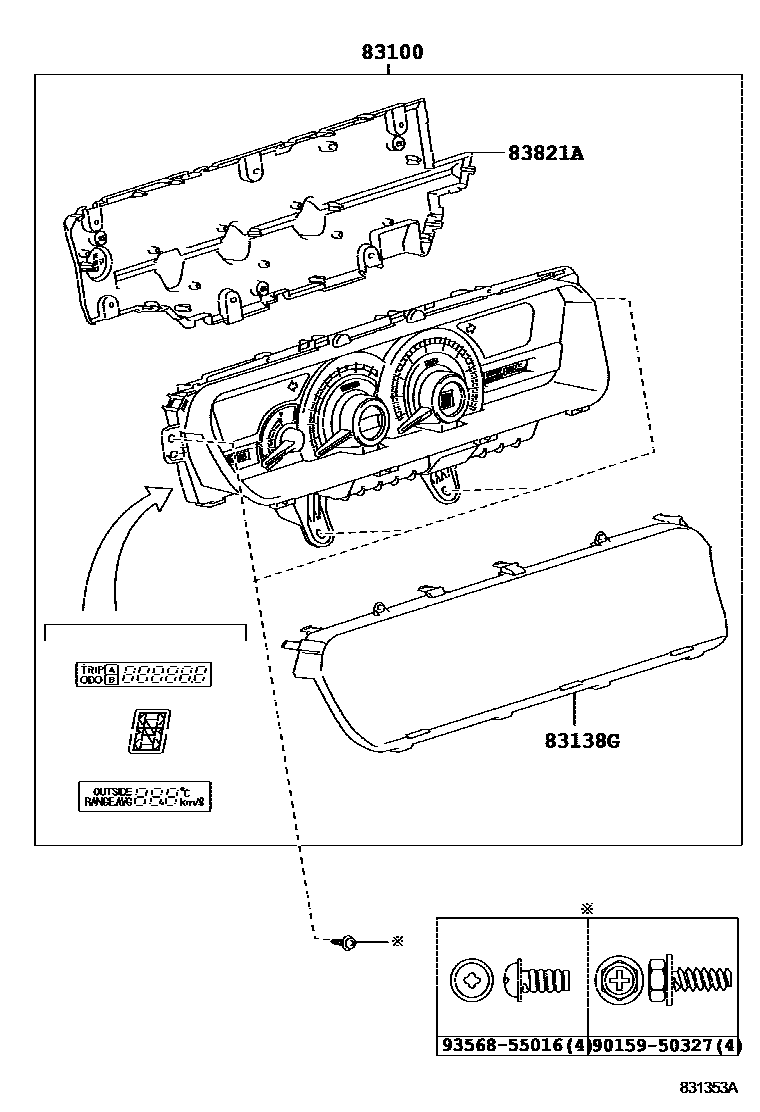

Toyota NOAH — METER

83100METER ASSY, COMBINATION

main83800-28E60iZRR70200808-201004

main83800-28J30iZRR70201004-201209

main83800-28J31iZRR70..GEN201209-201401

main83800-28E31supersedes 83800-28E20iZRR70..IDN201212

INDONESIA DX

83138GGLASS, COMBINATION METER

main83852-28E80iZRR70200808-201004

83821ACOVER, COMBINATION METER, NO.1

main83821-28E80iZRR70200808-201004

9015950327

main90159-50327

9356855016

main93568-55016

5 parts on this diagram · 1 diagram in section
