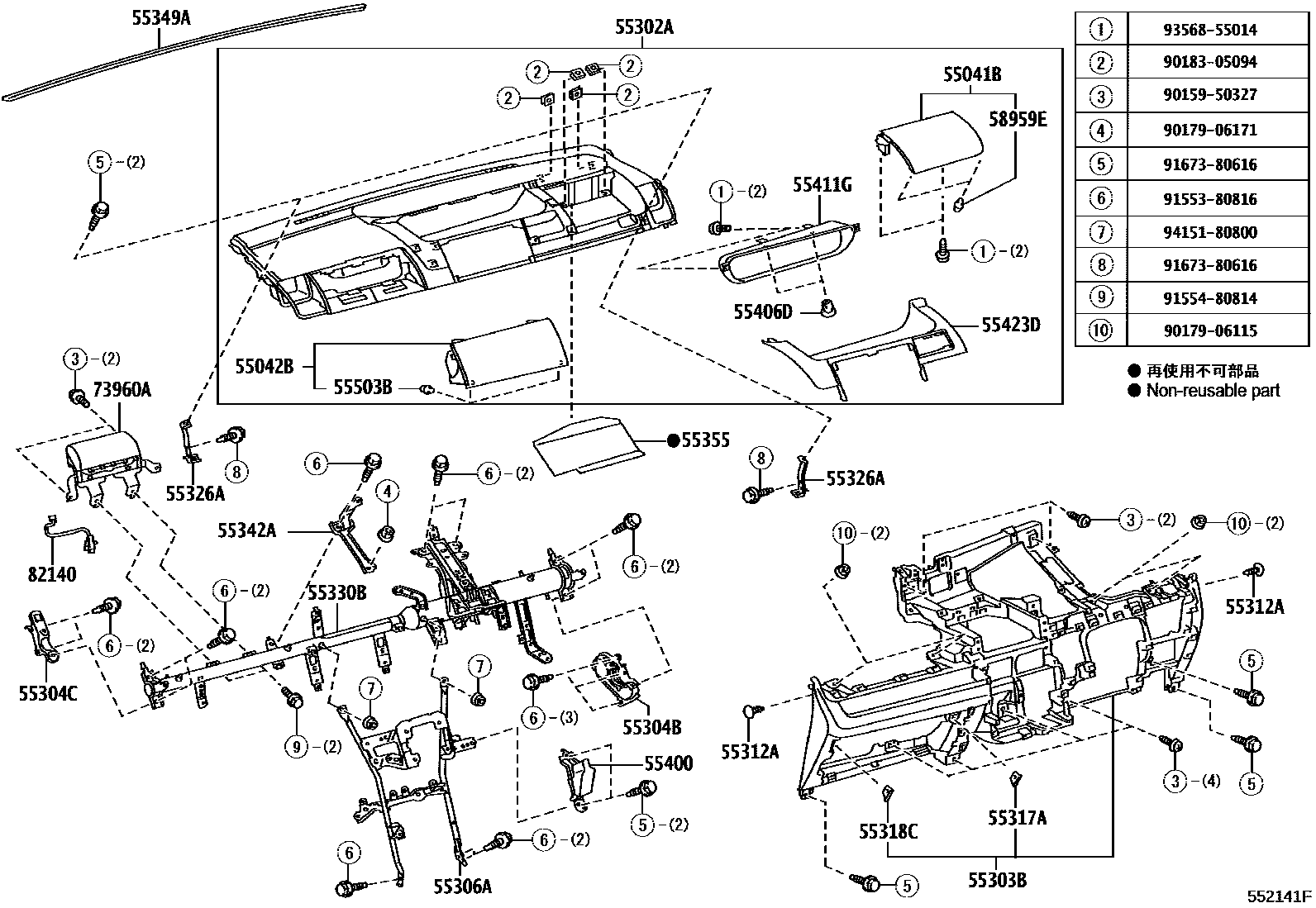

Toyota NOAH — INSTRUMENT PANEL & GLOVE COMPARTMENT
55041BDOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1
BLACK,TRIM2#
ASH BROWN,TRIM4#
55042BDOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2
BLACK,TRIM2#
ASH BROWN,TRIM4#
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
BLACK,TRIM2#
ASH BROWN,TRIM4#
ASH BROWN,TRIM4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
BLACK,TRIM2#
GREGE,TRIM4#
55304BBRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING
55304CBRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55312ACLIP, INSTRUMENT PANEL
BLACK
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM2#
GREGE,TRIM4#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM2#
GREGE,TRIM4#
55326ASTAY, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2
55349ACUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55400PAD ASSY, INSTRUMENT PANEL SAFETY
55406DCLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1
55423DPLATE, METER HOOD SET
BLACK,TRIM2#
ASH BROWN,TRIM4#
55503BCUSHION(FOR GLOVE COMPARTMENT)
58959ECUSHION, CONSOLE COMPARTMENT DOOR
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
82140WIRE ASSY, INSTRUMENT PANEL
9015950327
main90159-50327
9017906115
main90179-06115
9017906171
main90179-06171
9018305094
main90183-05094
9155380816
main91553-80816
9155480814
main91554-80814
9167380616
main91673-80616
9356855014
main93568-55014
9415180800
main94151-80800
32 parts on this diagram · 4 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota NOAH
This section contains 68 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota NOAH. Key components include: DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1, DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT, UPPER, PANEL SUB-ASSY, INSTRUMENT, LOWER.
