Toyota NOAH — HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
81125ACORD, HEADLAMP, RH
81135UNIT ASSY, HEADLAMP, RH
81139COVER, HEADLAMP SOCKET
81144COVER, HEADLAMP, NO.1
81165CORD, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9010506298
main90105-06298
9015950346
main90159-50346
9018905142
main90189-05142

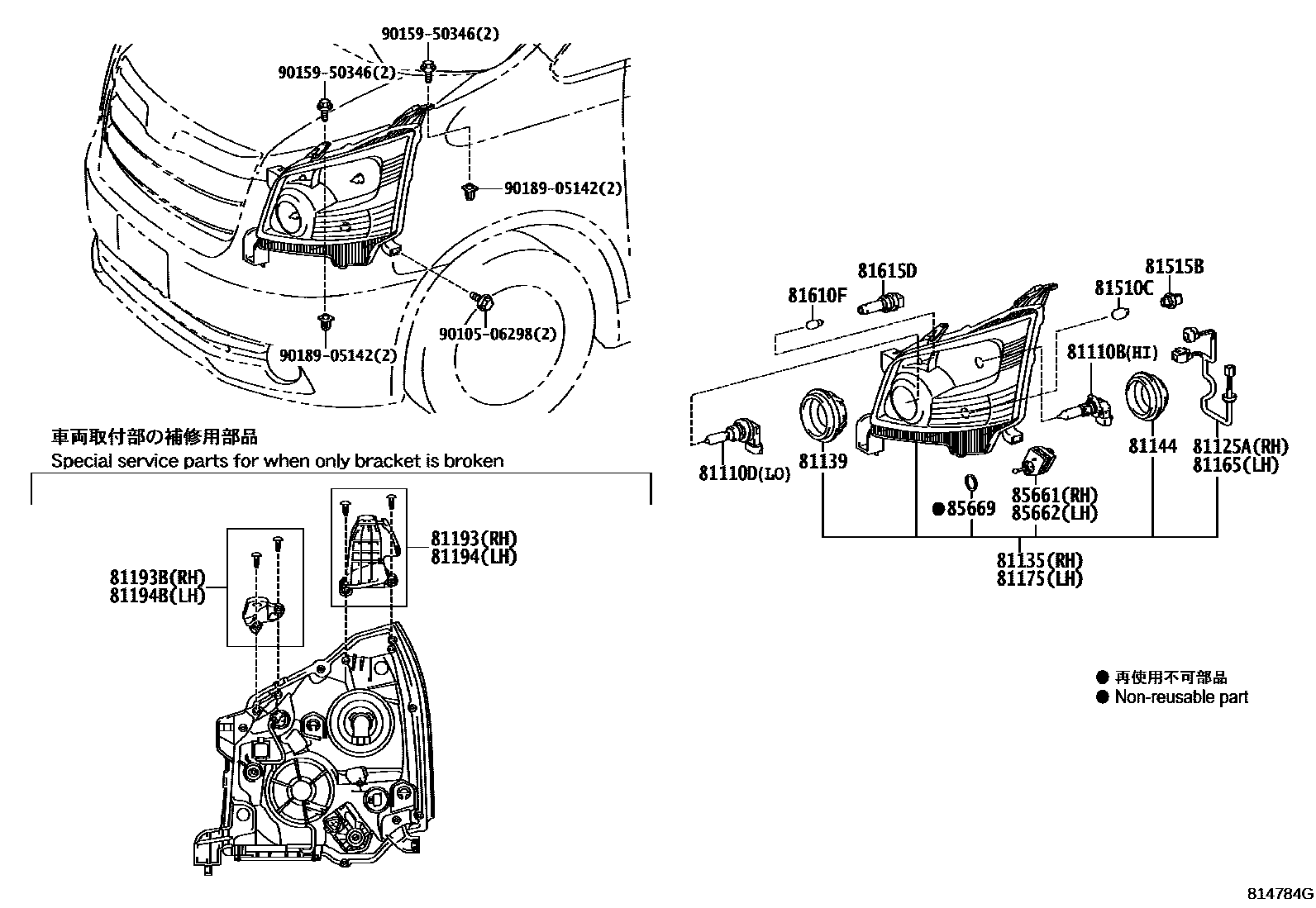

22 parts on this diagram · 3 diagrams in section
HEADLAMP for Toyota NOAH
This section contains 29 genuine Toyota parts for the HEADLAMP system of the Toyota NOAH. Key components include: COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), BULB, DISCHARGE HEADLAMP.
