Toyota NOAH — FRONT DOOR WINDOW REGULATOR & HINGE

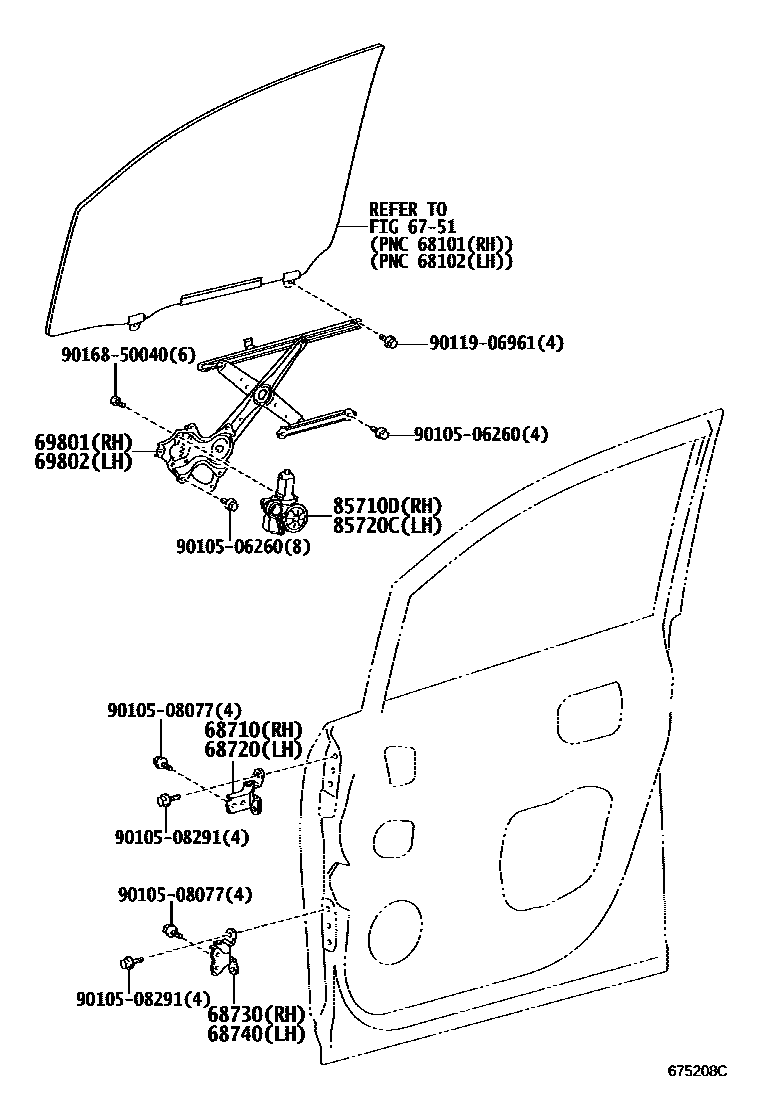

Parts diagram

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i201004-201612

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i200808-201004

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33021i201004-201612

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33021i200808-201004

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-28100i200808-201004

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-28080i201004

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30400i200909-201004

main85710-30500i201008-201302

main85710-48060i200808-200908

main85710-52171i201303-201401

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-30340i201004-201008

main85720-30440i201008-201302

main85720-48070i200808-200908

main85720-52161i201303-201401

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9011906961

main90119-06961

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota NOAH

This section contains 14 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota NOAH. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
