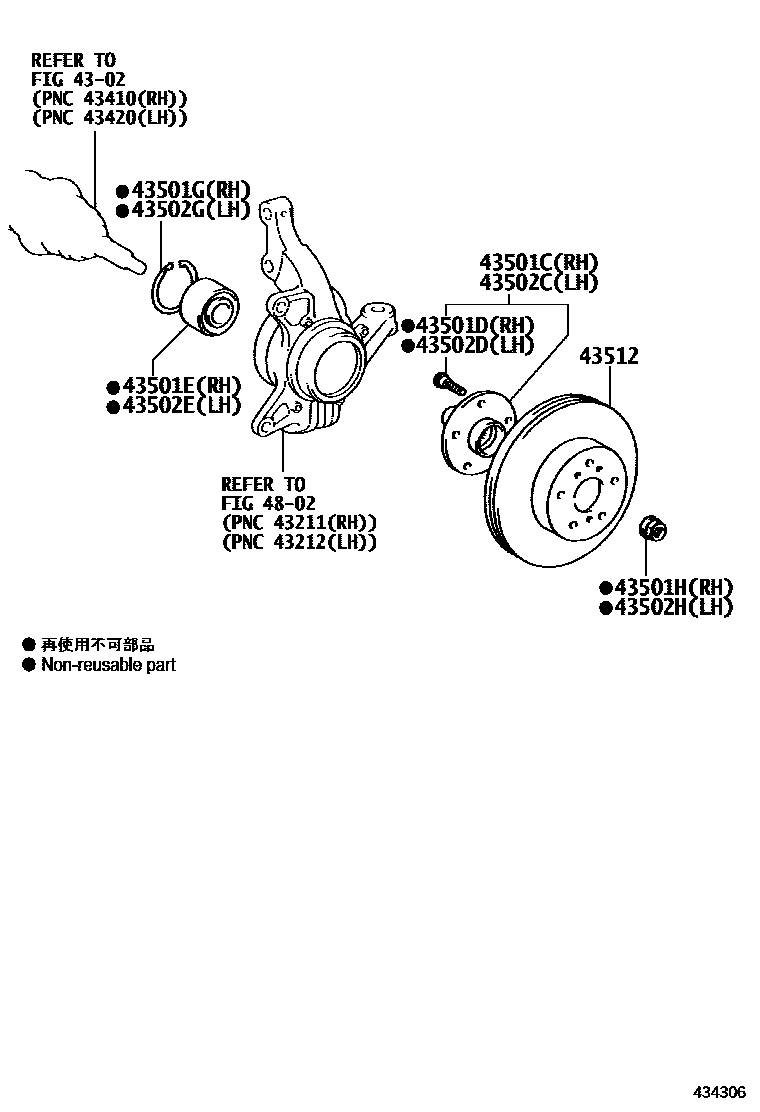

Toyota NOAH — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-42020iZRR70200808-201004

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iZRR70..GEN201111-201401

main90942-02070×5iZRR70200808-201004

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-43009iZRR70201004

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001iZRR70200808-201004

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZRR70200808-201004

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-42020iZRR70..GEN201004-201401

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iZRR70..GEN201111-201401

main90942-02070×5iZRR70201004-201110

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-43009iZRR70200808-201004

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001iZRR70..GEN201004-201401

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZRR70200808-201004

43512DISC, FRONT

main43512-42040×2iZRR70200808-201004

4802

13 parts on this diagram · 1 diagram in section
