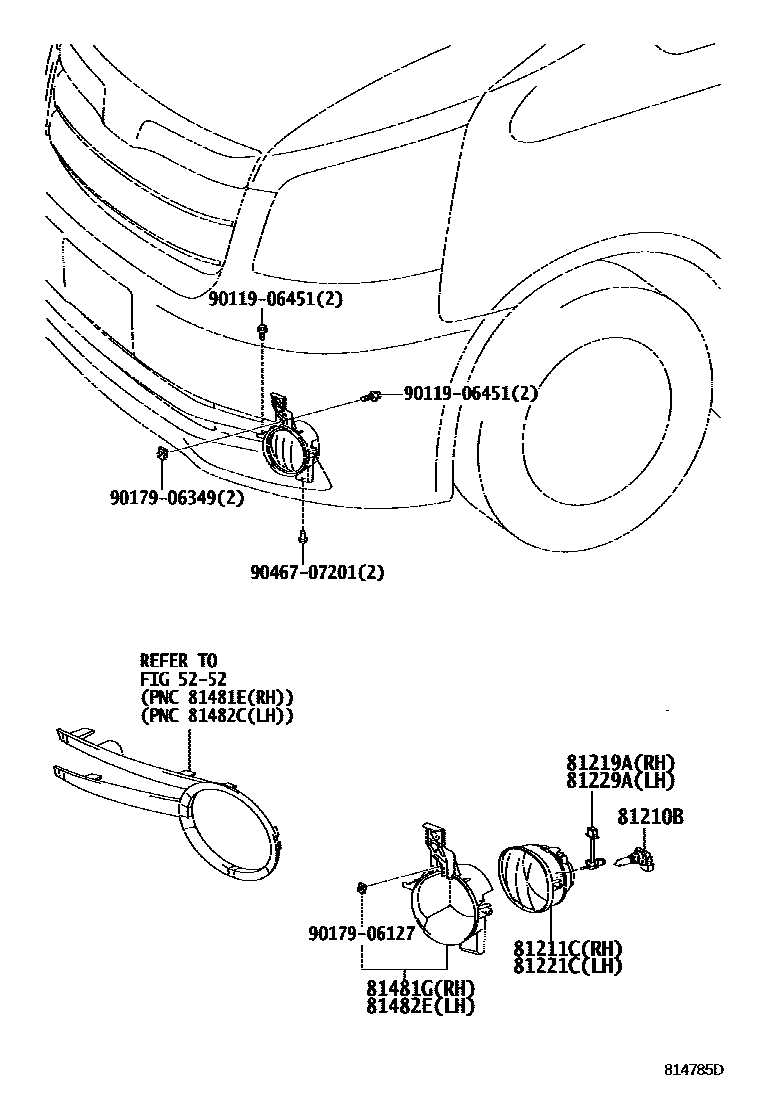

Toyota NOAH — FOG LAMP

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81210BBULB, FOG LAMP

main90981-13047×2i200808-201004

12V 51W,HALOGEN

main90981-13075×2i201004

12V 55W,HALOGEN,PHILIPS

main90981-13081×2i201004

12V 55W,HALOGEN,OSRAM

81211CLAMP UNIT, FOG LAMP, RH

main81211-42050i200808-201004

81219ABRACKET, FOG LAMP, RH

main81218-42050i200808-201004

81221CLAMP UNIT, FOG LAMP, LH

main81221-42050i200808-201004

81229ABRACKET, FOG LAMP, LH

main81228-42050i200808-201004

81481GBRACKET, FOG LAMP, RH

main81481-28200i200808-201004

81482EBRACKET, FOG LAMP, LH

main81482-28200i200808-201004

9011906451

main90119-06451

9017906127

main90179-06127

9017906349

main90179-06349

9046707201

main90467-07201

12 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota NOAH

This section contains 15 genuine Toyota parts for the FOG LAMP system of the Toyota NOAH. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, BRACKET, FOG LAMP, RH.
