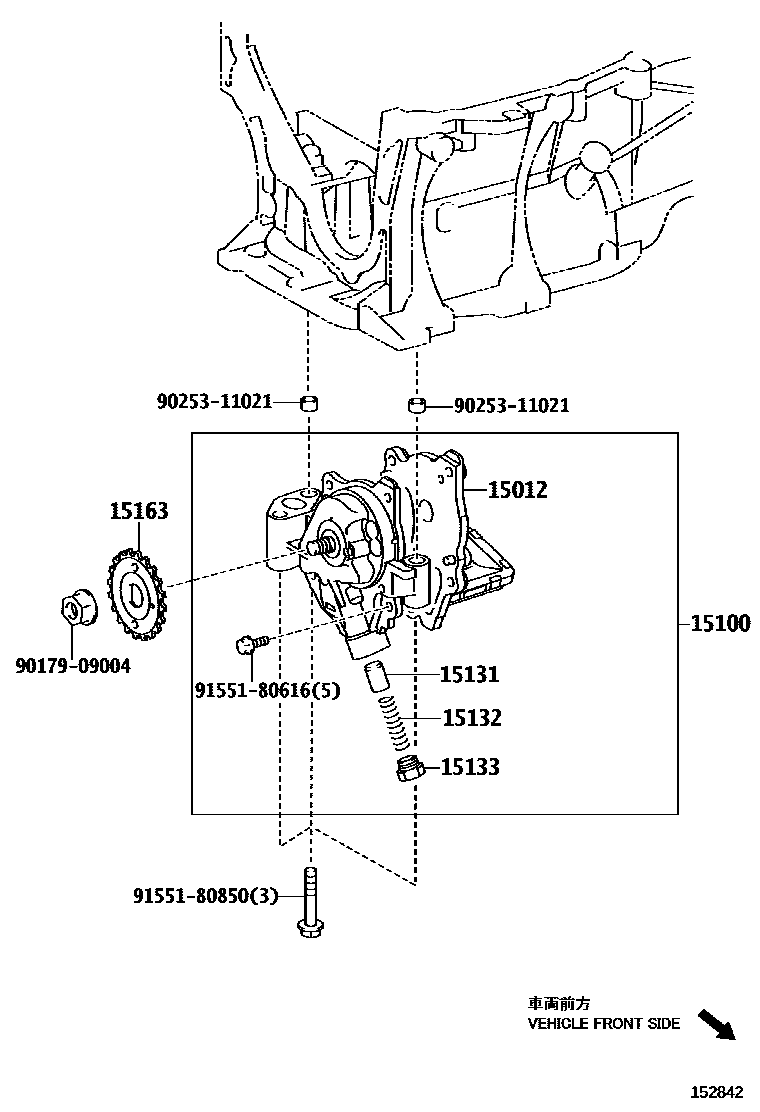

Toyota NOAH — ENGINE OIL PUMP

15012COVER SUB-ASSY, OIL PUMP

main15012-37010i200808-201004

15100PUMP ASSY, OIL

main15100-37020i201004-201309

main15100-37021i201309-201401

main15100-37030i200808-201004

15131VALVE, OIL PUMP RELIEF

main15131-0A040i200808-201004

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46060i200808-201004

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i200808-201004

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i200808-201004

9017909004

main90179-09004

9025311021

main90253-11021

9155180616

main91551-80616

9155180850

main91551-80850

10 parts on this diagram · 2 diagrams in section

ENGINE OIL PUMP for Toyota NOAH

This section contains 10 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota NOAH. Key components include: COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, VALVE, OIL PUMP RELIEF, SPRING, OIL PUMP RELIEF VALVE, PLUG, OIL PUMP RELIEF VALVE.
