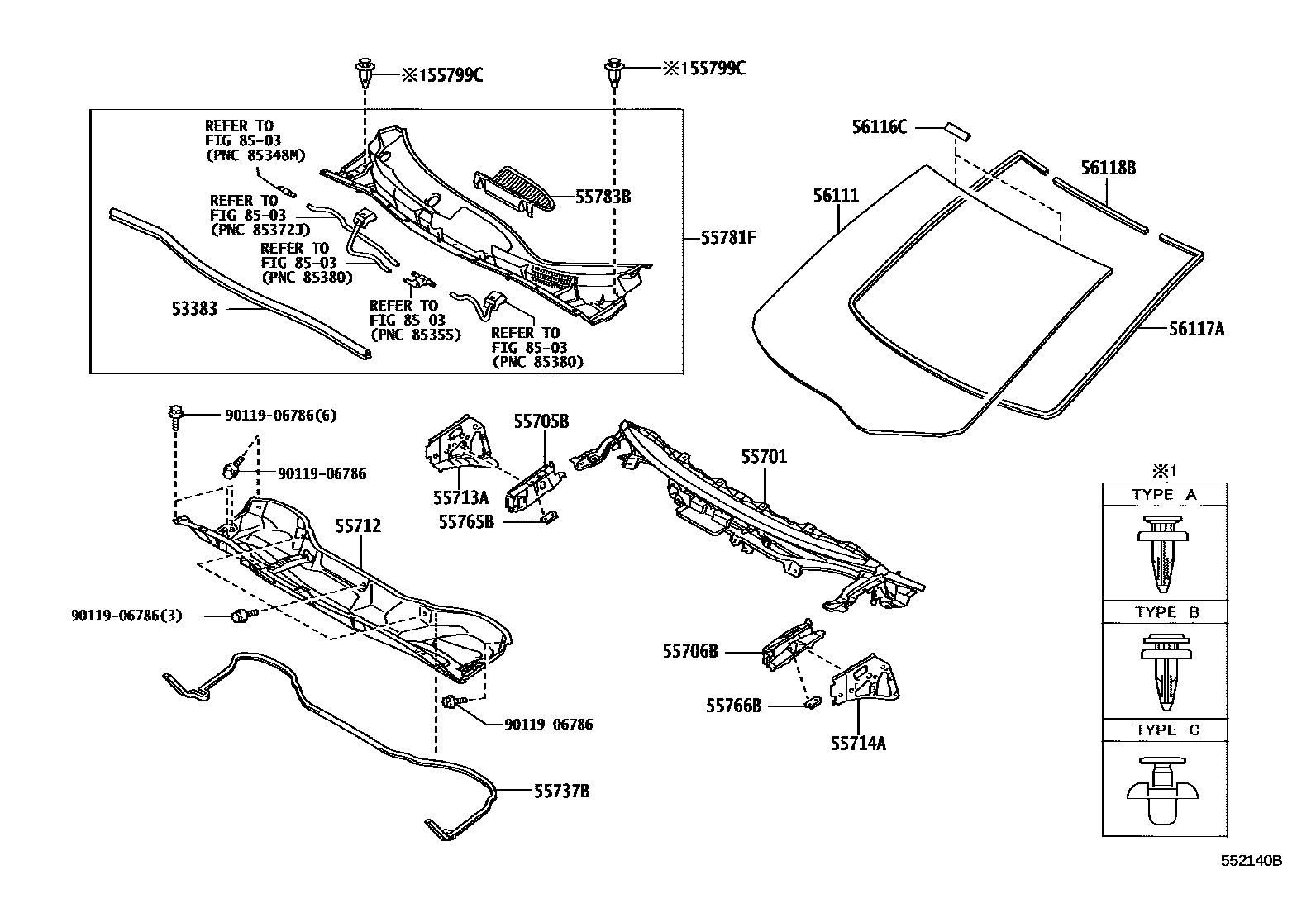

Toyota NOAH — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-28070iZRR70..GEN201004-201401

55701PANEL SUB-ASSY, COWL

main55700-28071iZRR70200808-201004

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-28040iZRR70200808-201004

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-28070iZRR70200808-201004

55712PANEL, COWL TOP OUTSIDE, FRONT

main55720-28170iZRR70200808-201004

55713APANEL, COWL TOP SIDE, RH

main55713-28050iZRR70200808-201004

55714APANEL, COWL TOP SIDE, LH

main55714-28040iZRR70200808-201004

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-28040iZRR70200808-201004

55765BBRACKET, HOOD DAMPER MOUNTING

main55765-44010iZRR70200808-201004

55766BBRACKET, HOOD DAMPER MOUNTING

main55765-44010iZRR70200808-201004

55781FLOUVER, COWL TOP VENTILATOR

main55708-28202iZRR70201004-201202

main55708-28203iZRR70..GEN201203-201401

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-28070iZRR70200808-201004

55799CCLIP, COWL TOP VENTILATOR LOUVER

main53879-60010×2iZRR70200808-201004

TYPE C:REFER ILLUST.

main55799-28010×2iZRR70..IDN201004

TYPE A:REFER ILLUST.

main55799-28020×2iZRR70..IDN201004

TYPE B:REFER ILLUST.

56111GLASS, WINDSHIELD

main56101-28381iZRR70201004-201208

*LAM,T=4.56,GREEN

main56101-28382iZRR70..GEN201209-201401

*LAM,T=4.56,GREEN

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iZRR70..IDN201309

main56116-35050×2iZRR70200808-201004

56117ADAM, WINDOW GLASS ADHESIVE

main56117-28160iZRR70..GEN201004-201401

L=3570

sub56117-50130

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-28060iZRR70200808-201004

L=642

sub56118-50050

8503

9011906786

main90119-06786

19 parts on this diagram · 2 diagrams in section
