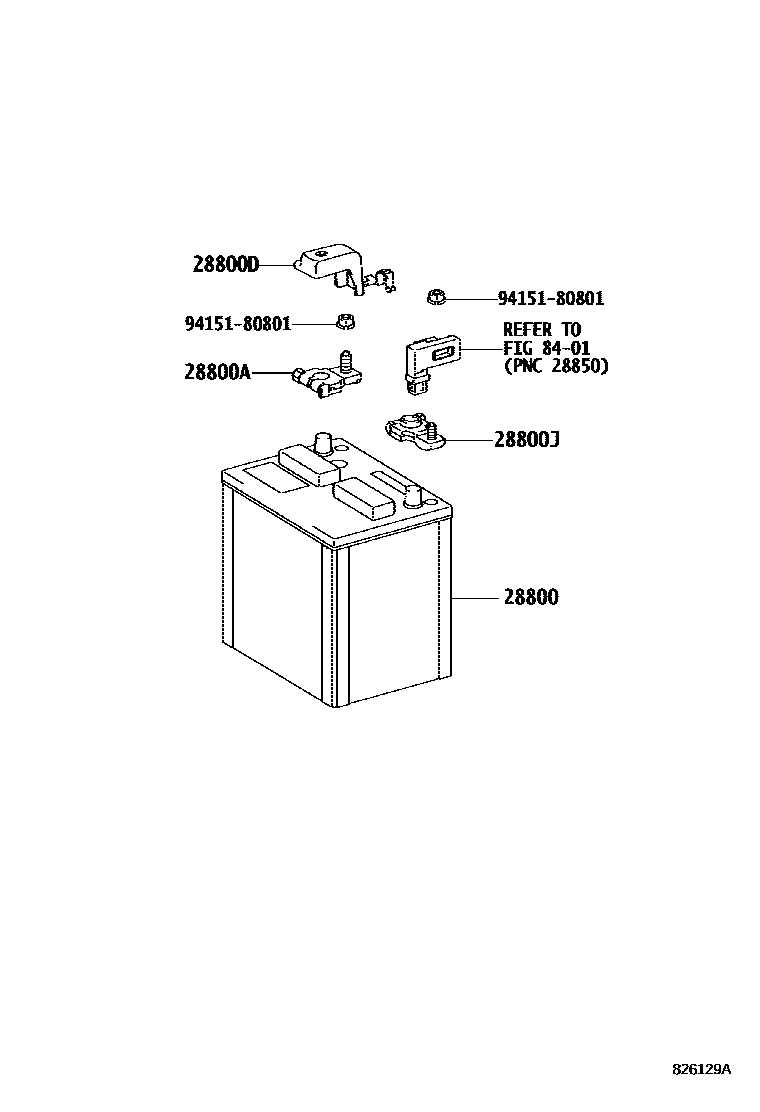

Toyota NOAH — BATTERY & BATTERY CABLE

28800BATTERY

main28800-0C050i201212

55D23L

main28800-42041i200808-201004

55D23L,YUASA

main28800-42061i200808-201004

55D23L,FURUKAWA

main28800-42062i201205-201401

55D23L

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i201004

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i200808-201004

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i200808-201004

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota NOAH

This section contains 6 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota NOAH. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), TERMINAL, BATTERY NEGATIVE, SWITCH & RELAY & COMPUTER.
