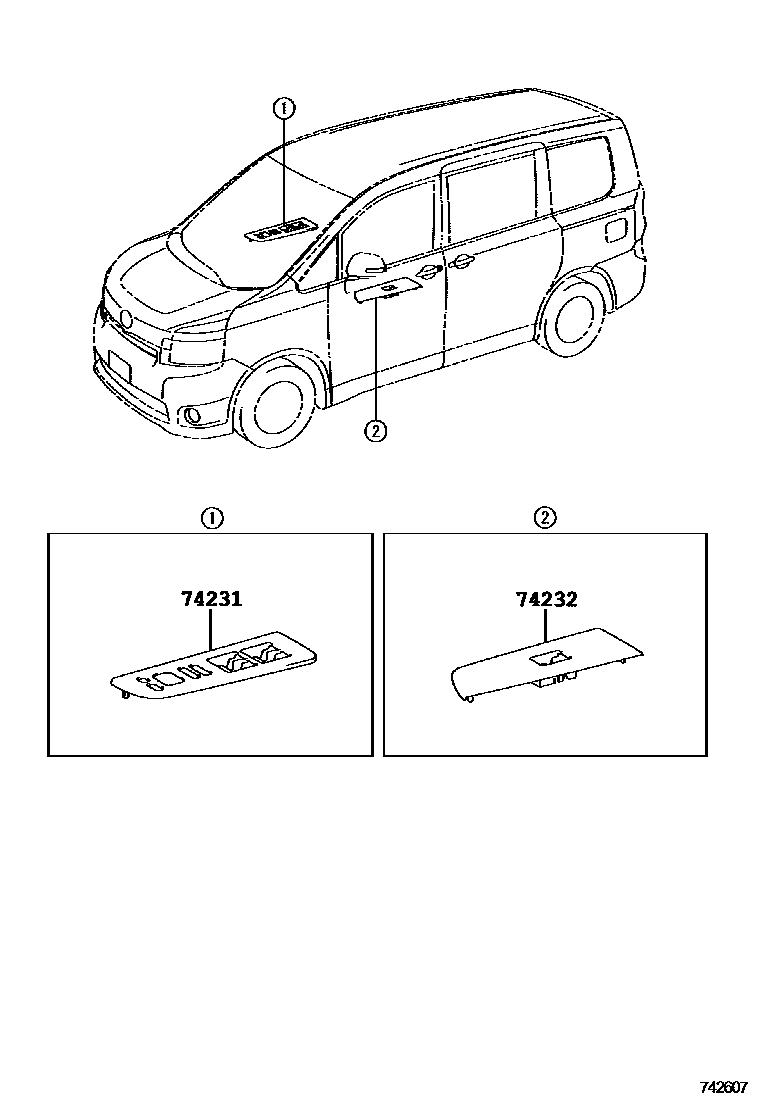

Toyota NOAH — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-28A10-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main74231-28A10-E1iZRR70..IDN201212-201401

ASH BROWN,TRIM4#

main74231-28B20iZRR70..E..GEN201004-201401

SILVER

main74231-28B30iZRR70..S201004-201401

SILVER

main74231-28A30supersedes 74231-28A20iZRR70200808-201004

HONG KONG SPEC,SILVER

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-28580-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main74232-28580-E1iZRR70..IDN201212-201401

ASH BROWN,TRIM4#

main74232-28590iZRR70200808-201004

SILVER

main74232-28660iZRR70..GEN201004-201401

SILVER

2 parts on this diagram · 2 diagrams in section
