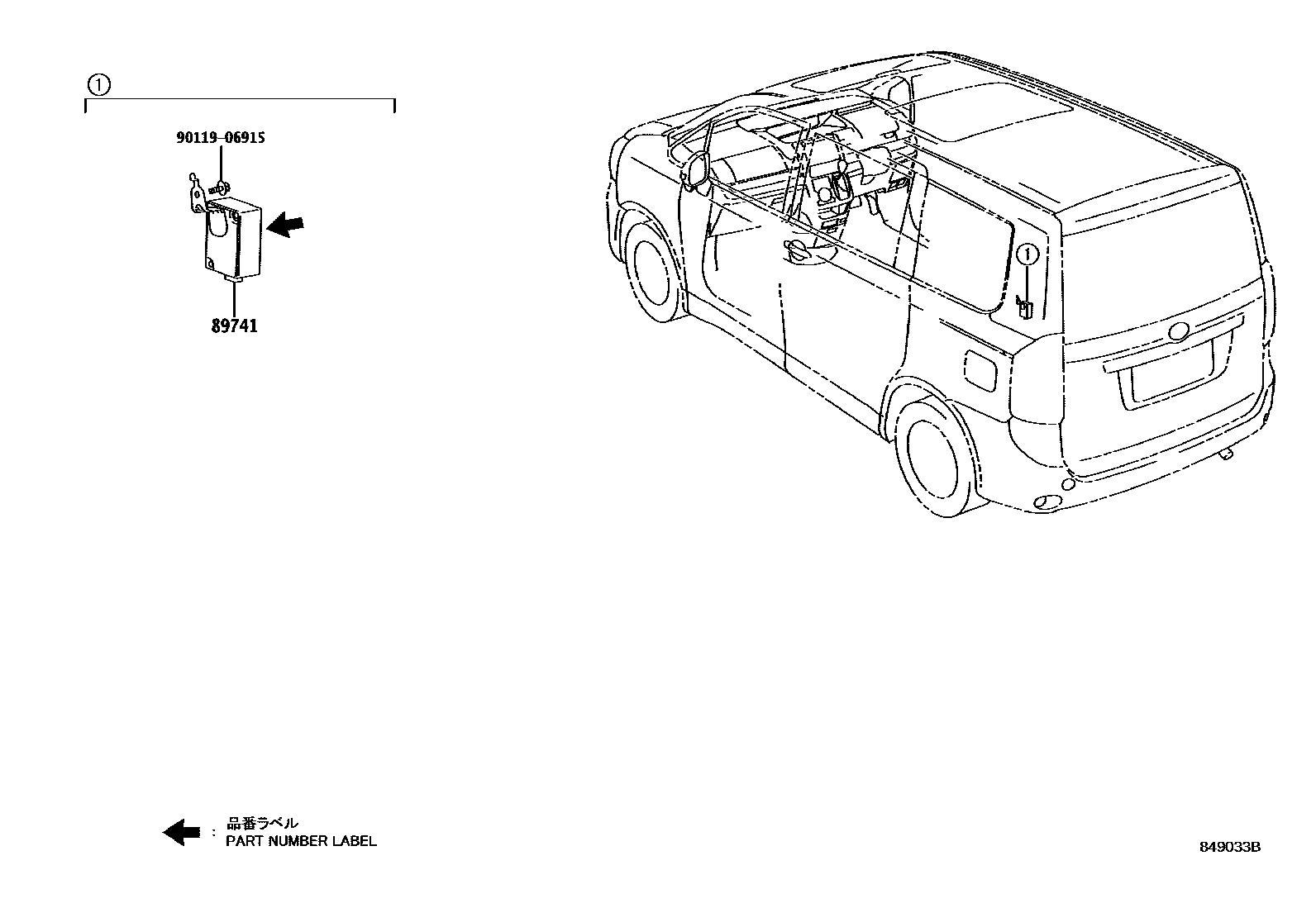

Toyota NOAH/VOXY — WIRELESS DOOR LOCK
89741RECEIVER, DOOR CONTROL
main89740-28060iZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR7#..(S,X,Z)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5; ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200706-201004
main89741-28280iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5); ZRR7#..(S,X,Z)..(CBU,IV5); ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5; ZRR7#..S,Z;ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU200706-200810
main89741-28281iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5); ZRR7#..X..CBU; ZRR7#..X..IV5; ZRR70..X..CBU201004-201106
main89741-28290iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5); ZRR7#..X..CBU; ZRR7#..X..IV5; ZRR70..X..CBU201106-201108
9011906915
main90119-06915
2 parts on this diagram · 2 diagrams in section
WIRELESS DOOR LOCK for Toyota NOAH/VOXY
This section contains 14 genuine Toyota parts for the WIRELESS DOOR LOCK system of the Toyota NOAH/VOXY. Key components include: RECEIVER, DOOR CONTROL, HARNESS, ELECTRICAL KEY WIRE, NO.1, HARNESS, ELECTRICAL KEY WIRE, NO.2, BUZZER, WIRELESS DOOR LOCK, COMPUTER ASSY, SMART KEY.
