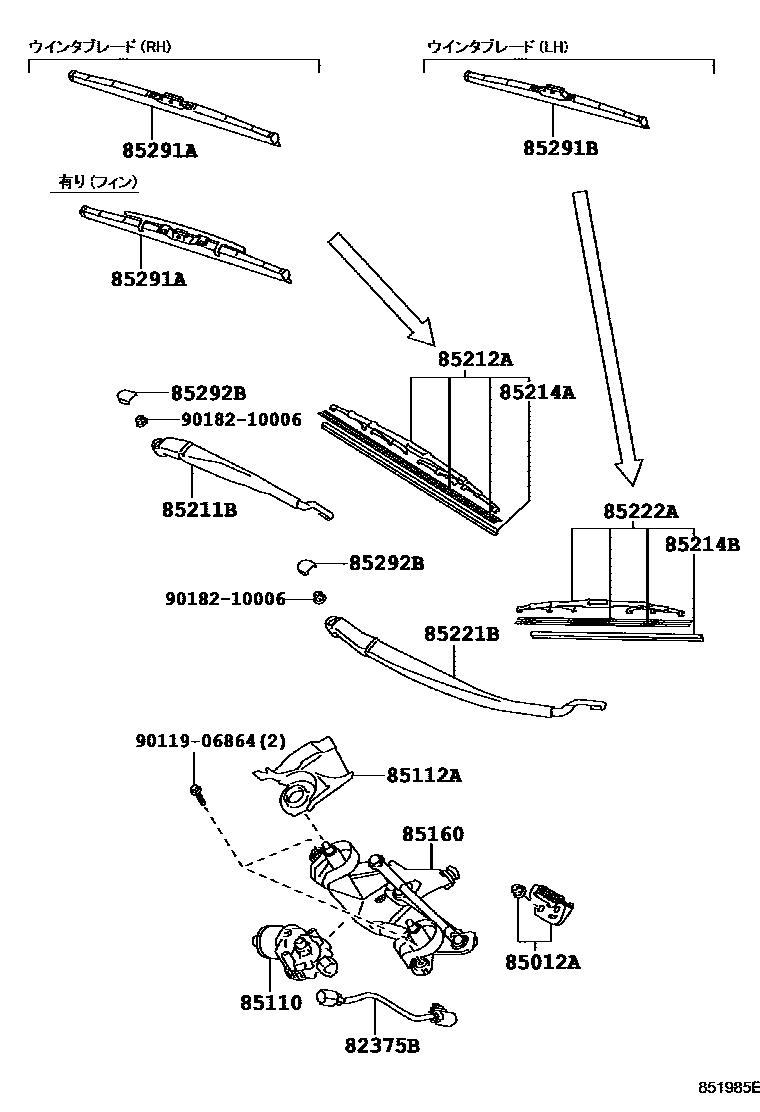

Toyota NOAH/VOXY — WINDSHIELD WIPER
82375BWIRE, WIPER MOTOR
85012ACRANK SUB-ASSY, FRONT WIPER
85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1
85160LINK ASSY, WINDSHIELD WIPER
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
sub85214-52110
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85291ABLADE, FRONT WIPER, WINTER, RH
85291BBLADE, FRONT WIPER, WINTER, LH
85292BCAP, FRONT WIPER ARM HEAD
9011906864
main90119-06864
9018210006
main90182-10006
16 parts on this diagram · 1 diagram in section
