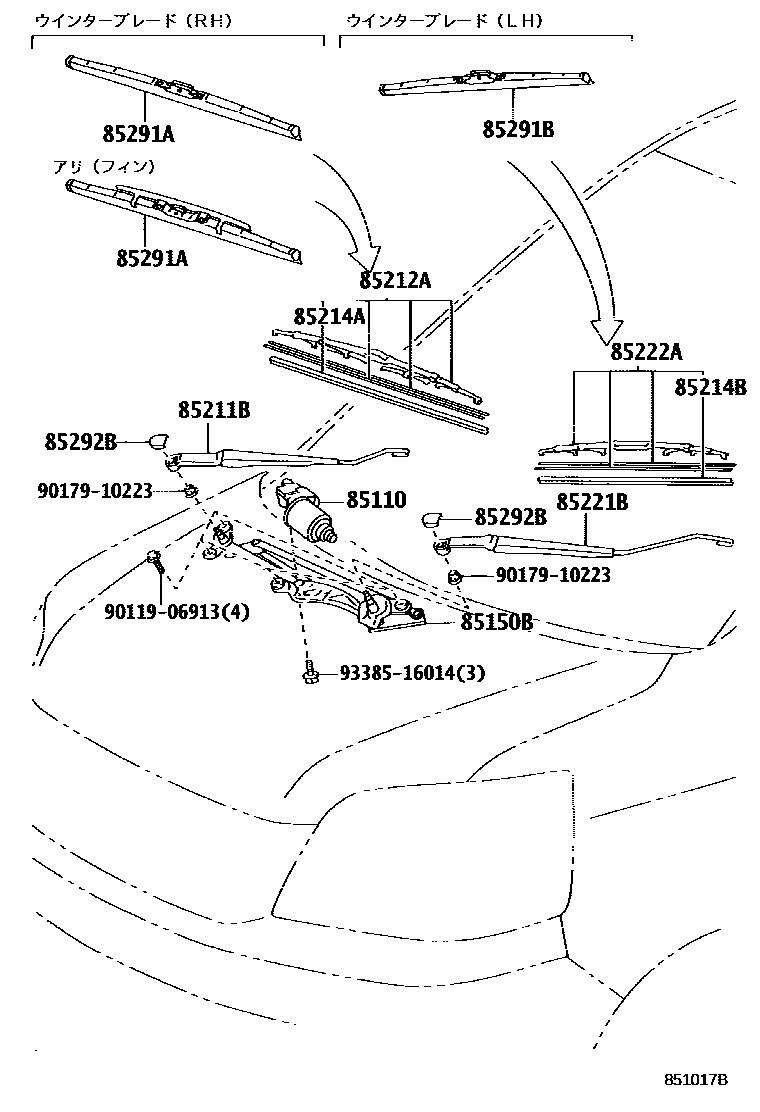

Toyota NOAH/VOXY — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28210iAZR6#200111-200408

main85110-28220iAZR6#200111-200408

85150BLINK ASSY, WIPER

main85150-28170iAZR6#200111-200408

main85150-28180iAZR6#200408

85211BARM, FRONT WIPER, RH

main85211-28170iAZR6#..4HC200111-200209

main85211-28171iAZR6#200209-200408

85212ABLADE, FR WIPER, RH

main85212-44100iAZR6#..4HC200111-200209

sub85212-68010

main85212-58020iAZR6#200209-200408

sub85212-68010

85214ARUBBER, WIPER, RH

main85214-44130iAZR6#200111-200408

main85214-44140iAZR6#200412

85214BRUBBER, WIPER, LH

main85214-44120iAZR6#200408-200411

main85214-68010iAZR6#200412-200605

main85214-68011iAZR6#200606

85221BARM, FRONT WIPER, LH

main85221-28130iAZR6#..4HC200111-200209

main85221-28131iAZR6#200209-200408

85222ABLADE, FR WIPER, LH

main85222-28140iAZR6#200408-200605

main85222-28141iAZR6#200606

main85222-44050iAZR6#..4HC200111-200209

sub85222-44051

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-44070iAZR6#200408

main85291-44090iAZR6#200408

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-28120iAZR6#200111-200408

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iAZR6#200111-200408

9011906913

main90119-06913

9017910223

main90179-10223

9338516014

main93385-16014

14 parts on this diagram · 1 diagram in section
