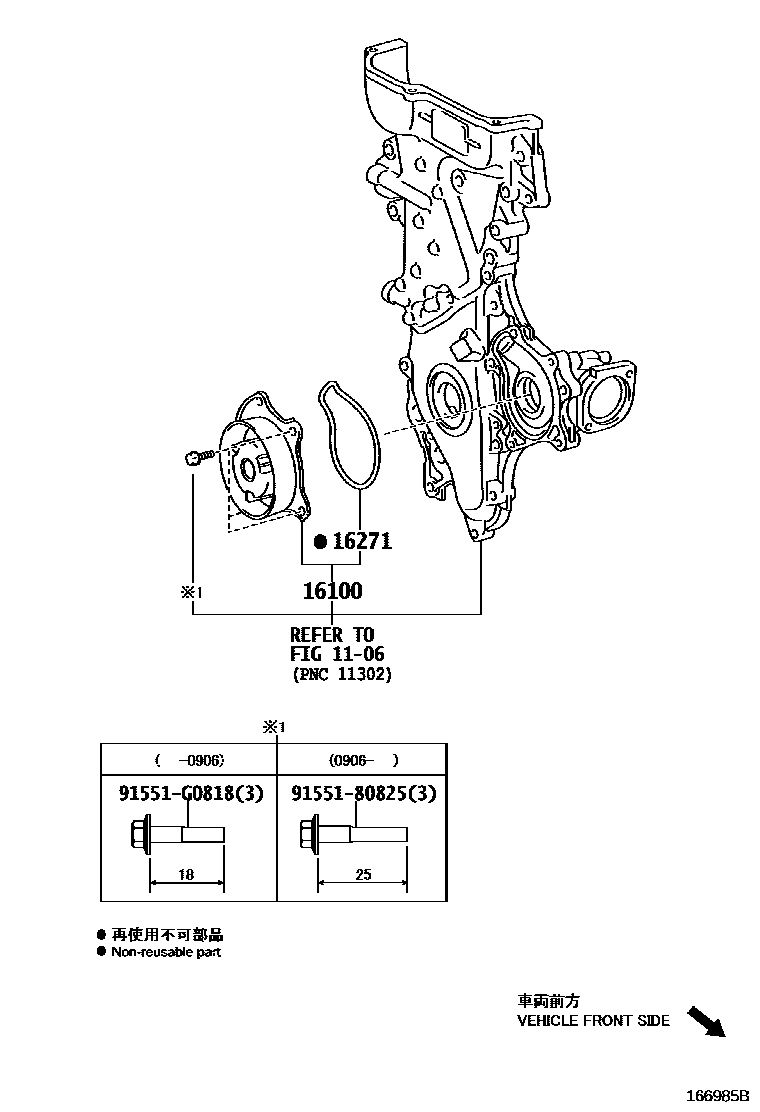

Toyota NOAH/VOXY — WATER PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-39465i200706-200906

main16100-39466i200906-201004

16271GASKET, WATER PUMP

main16271-37010i200706-201004

9155180825

main91551-80825

91551G0818

main91551-G0818

5 parts on this diagram · 1 diagram in section

WATER PUMP for Toyota NOAH/VOXY

This section contains 5 genuine Toyota parts for the WATER PUMP system of the Toyota NOAH/VOXY. Key components include: TIMING GEAR COVER & REAR END PLATE, PUMP ASSY, ENGINE WATER, GASKET, WATER PUMP.
