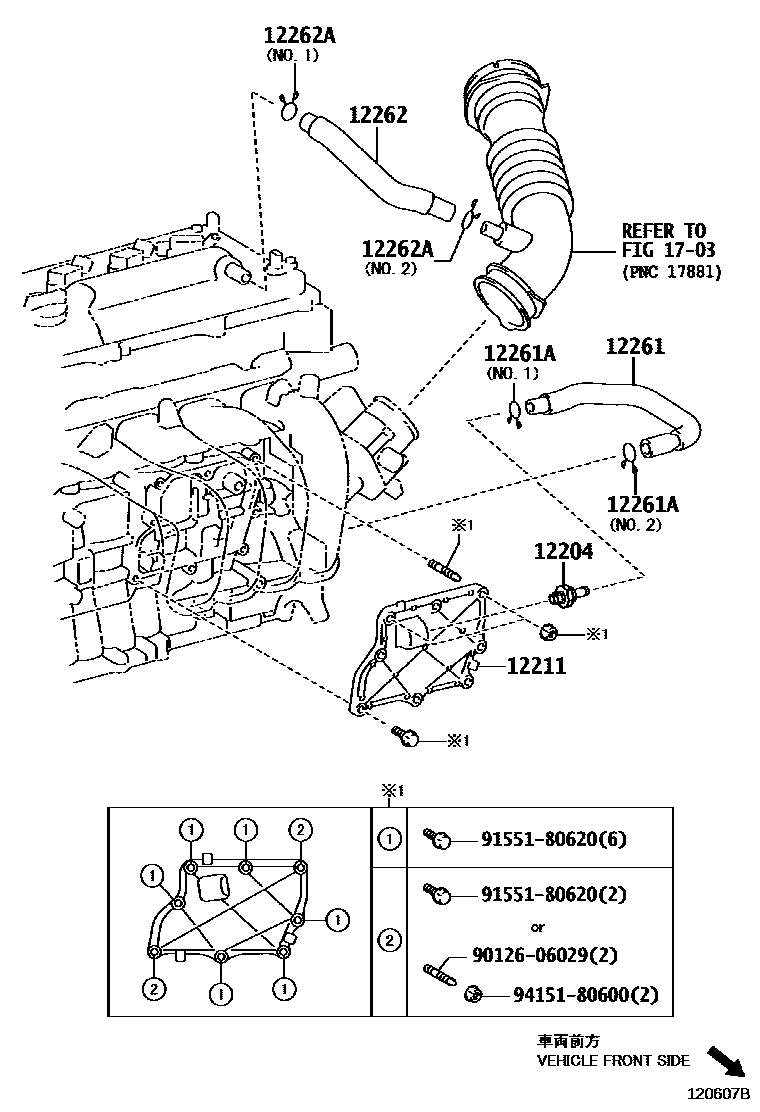

Toyota NOAH/VOXY — VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-37010i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201401

12211CASE, VENTILATION, NO.1

main12211-37010i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201401

12261HOSE, VENTILATION

main12261-37040i3ZRFE..ZRR7#..CBU,IV5200706-201002

main12261-37050i3ZRFAE..ZRR7#..CBU,IV5200706-201401

main12261-37080i3ZRFE..ZRR7#..CBU,IV5201003-201004

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-22005i3ZRFAE..ZRR7#..CBU,IV5201111-201401

main90467-15120i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201401

main90467-22010i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-200809

main90467-23002i3ZRFAE..ZRR7#..CBU,IV5200809-201111

12262HOSE, VENTILATION, NO.2

main12262-37020i3ZRFE..ZRR7#..CBU,IV5200706-201004

main12262-37030i3ZRFAE..ZRR7#..CBU,IV5200706-201401

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201401

1703

9012606029

main90126-06029

9155180620

main91551-80620

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section
