Toyota NOAH/VOXY — VACUUM PUMP

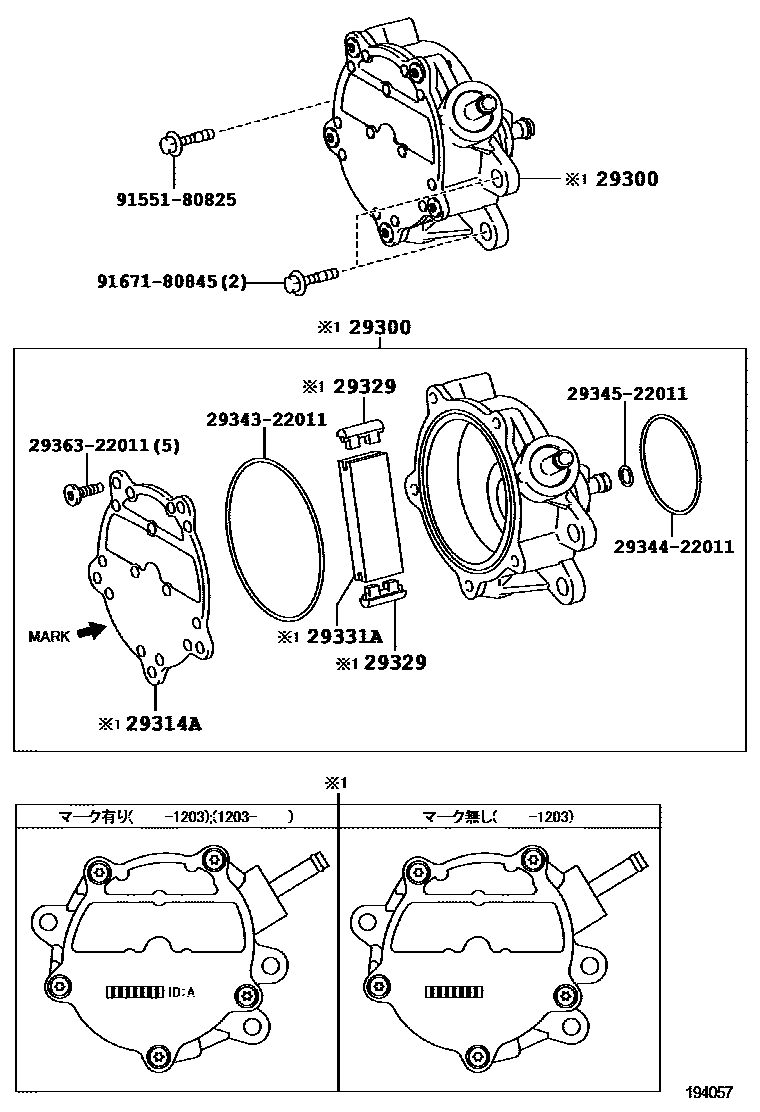

Parts diagram

29300PUMP ASSY, VACUUM

main29300-22011i200706-201004

main29300-37010i200805-201004

29314ACOVER, END

main29314-22011i200706-201004

main29314-37010i201203-201401

29329CAP, VACUUM PUMP VANE

main29329-22011×2i200706-201004

main29329-37010×2i201203-201401

29331AVANE, VACUUM PUMP

main29331-22011i201004-201203

main29331-37010i200805-201004

2934322011RING, O VACUUM PUMP, NO.1

main29343-22011

2934422011RING, O VACUUM PUMP, NO.2

main29344-22011

2934522011RING, O VACUUM PUMP, NO.3

main29345-22011

2936322011SCREW, HOLLOW VACUUM PUMP

main29363-22011

9155180825

main91551-80825

9167180845

main91671-80845

10 parts on this diagram · 1 diagram in section

VACUUM PUMP for Toyota NOAH/VOXY

This section contains 10 genuine Toyota parts for the VACUUM PUMP system of the Toyota NOAH/VOXY. Key components include: PUMP ASSY, VACUUM, COVER, END, CAP, VACUUM PUMP VANE, VANE, VACUUM PUMP, RING, O VACUUM PUMP, NO.1.
