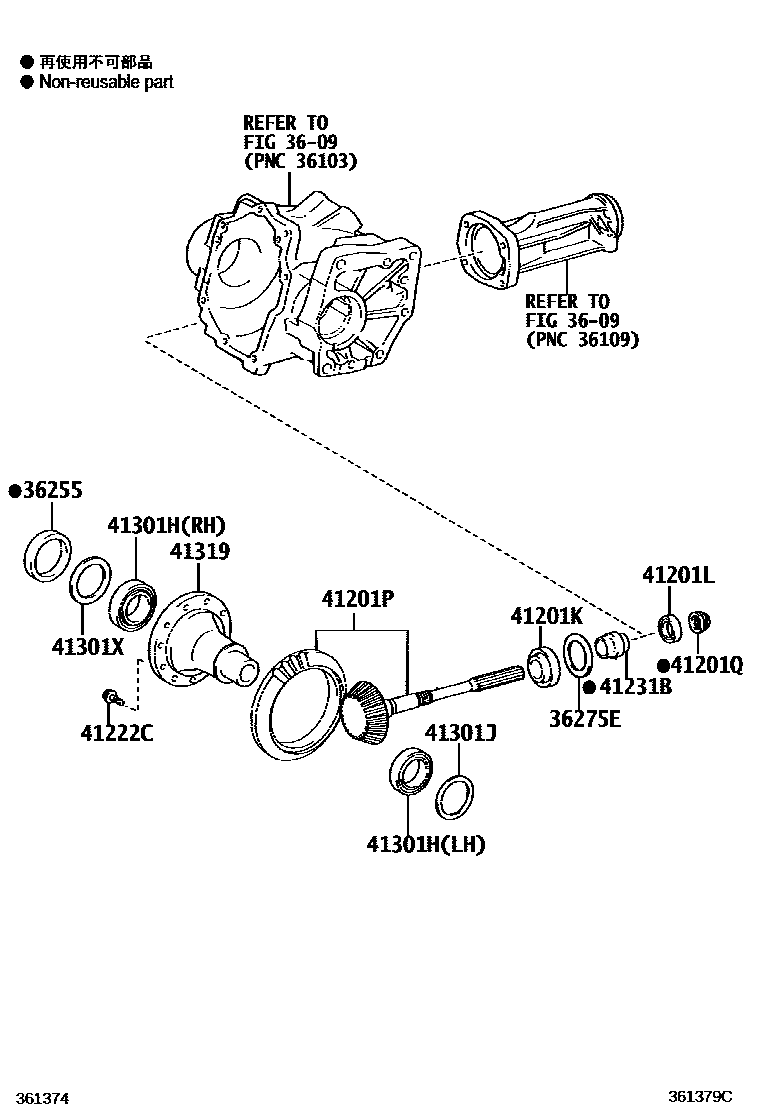

Toyota NOAH/VOXY — TRANSFER GEAR
3609
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36275EWASHER, TRANSFER OUTPUT SHAFT
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201QNUT (FOR TRANSFER GEAR)
41222CBOLT (FOR TRANSFER RING GEAR)
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
sub36265-48C40
sub36265-48C70
sub36265-48D00
sub36265-48D30
sub36265-48D60
sub36265-48D90
sub36265-48E20
sub36265-48E50
sub36265-48E80
sub36265-48F10
sub36265-48F40
sub36265-48F70
sub36265-48G00
sub36265-48G30
sub36265-48G60
sub36265-48G90
sub36265-48J20
sub36265-48J50
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
sub36266-48220
sub36266-48250
sub36266-48280
sub36266-48310
sub36266-48340
sub36266-48370
sub36266-48400
sub36266-48430
sub36266-48460
sub36266-48490
sub36266-48520
sub36266-48550
sub36266-48580
sub36266-48610
sub36266-48640
sub36266-48670
sub36266-48700
sub36266-48730
sub36266-48760
sub36266-48790
sub36266-48820
sub36266-48850
sub36266-48880
41319CASE, TRANSFER RING GEAR MOUNTING
13 parts on this diagram · 1 diagram in section
