Toyota NOAH/VOXY — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� 0003 1�������� �������� 0004 1��� 0005 1������������ 1/2 0006 1������������ 2/2 0007 1������� 0008 1������� 0009 1���(������� / ��������������)0010 1���(������� / ��������������)0011 1���,���,��� & �������

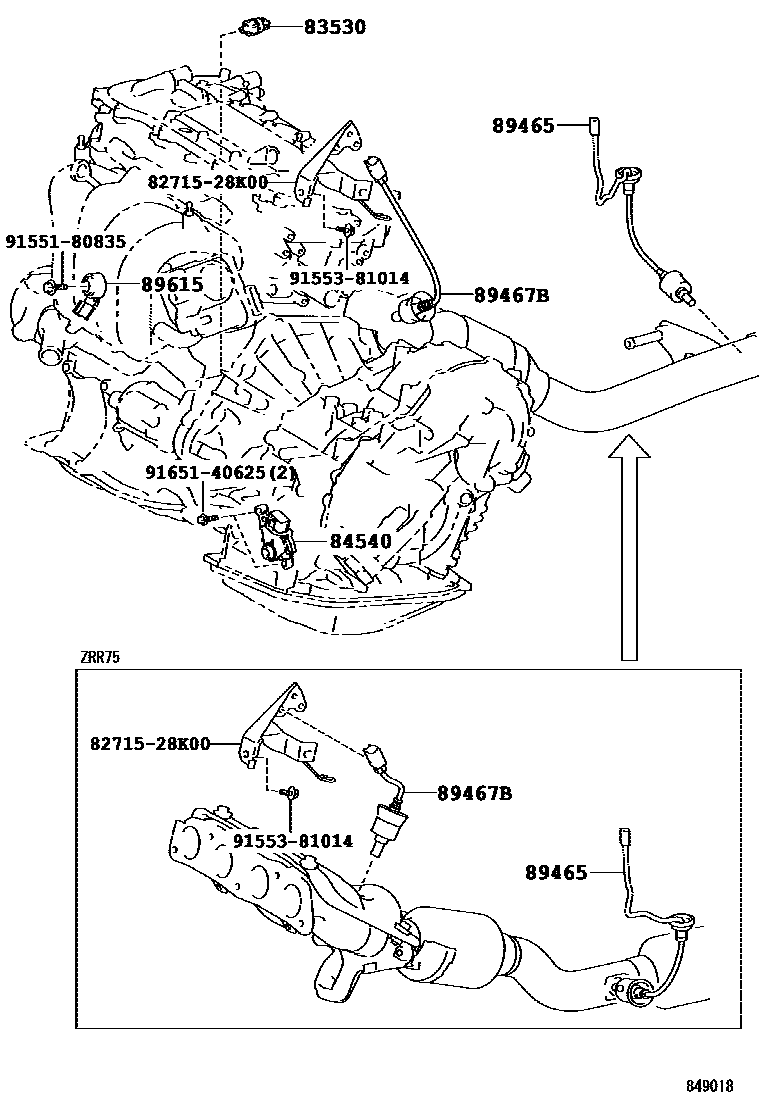

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZRR7#..CBU,IV5201310-201401

sub83530-12060

main83530-60020iZRR7#..CBU,IV5200706-201310

84540SWITCH ASSY, NEUTRAL START

main84540-52070iZRR7#..CBU,IV5200706-201401

89465SENSOR, OXYGEN

main89465-28450iZRR70..CBU,IV5200706-201401

main89465-28460iZRR75..CBU,IV5200706-201401

89467BSENSOR, AIR FUEL RATIO

main89467-12030iZRR70..CBU,IV5200706-201401

main89467-28090iZRR75..CBU,IV5200706-201401

89615SENSOR, KNOCK CONTROL

main89615-20090iZRR7#..CBU,IV5200706-201401

8271528K00BRACKET,WIRING HARNESS CLAMP

main82715-28K00

9155180835

main91551-80835

9155381014

main91553-81014

9165140625

main91651-40625

9 parts on this diagram · 11 diagrams in section
