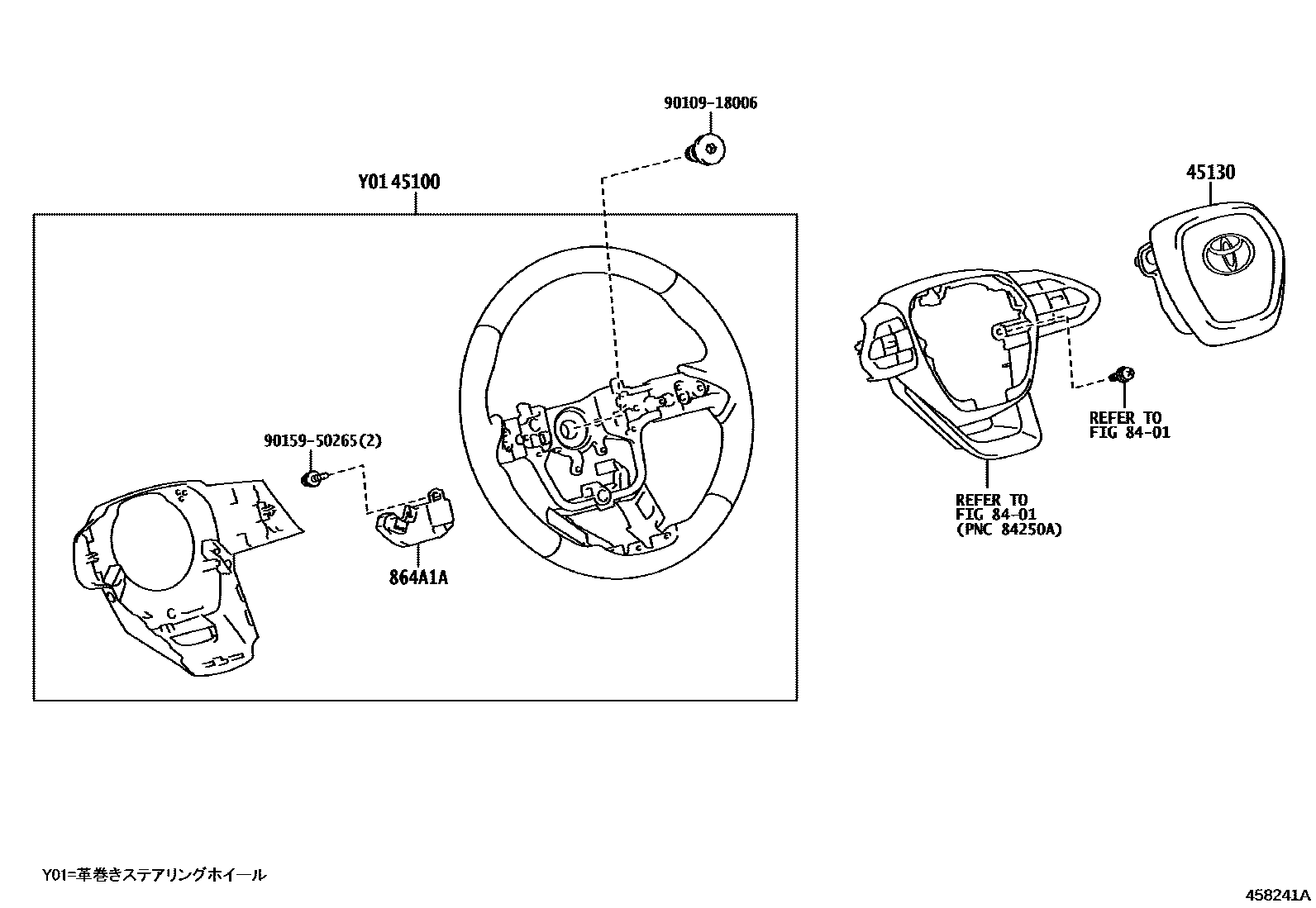

Toyota NOAH/VOXY — STEERING WHEEL
45100WHEEL ASSY, STEERING
main45100-28600-C1supersedes 45100-28570-C1iMZRA9#,ZWR9#..G; MZRA90,95,ZWR90,95..Z; MZRA92..08S..SG;MZRA95..SG..IV5202201-202501
45130BUTTON ASSY, HORN
main45130-28630-C0iMZRA9#,ZWR9#..G; MZRA90,95,ZWR90,95..Z; MZRA92..08S..SG;MZRA95..SG..IV5; MZRA95..X..IV5202201-202501
BLACK,TRIM0#,2#; BLACK,TRIM1#; BLACK,TRIM2#; BLACK,TRIM2#,4#
8401SWITCH & RELAY & COMPUTER
864A1ACOMPUTER, MULTIPLEX NETWORK STEERING
9010918006
main90109-18006
9015950265
main90159-50265
6 parts on this diagram · 1 diagram in section
STEERING WHEEL for Toyota NOAH/VOXY
This section contains 6 genuine Toyota parts for the STEERING WHEEL system of the Toyota NOAH/VOXY. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, SWITCH & RELAY & COMPUTER, COMPUTER, MULTIPLEX NETWORK STEERING.
