Toyota NOAH/VOXY — STEERING WHEEL
45100WHEEL ASSY, STEERING
45116ORNAMENT, STEERING WHEEL, NO.1
45117ORNAMENT, STEERING WHEEL, NO.2
45130BUTTON ASSY, HORN
DK.GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM2#
ASH BROWN,TRIM4#
45184COVER, STEERING WHEEL BOSS, LOWER
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
ASH BROWN,TRIM4#
45186COVER, STEERING WHEEL, LOWER NO.2
DK.GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
ASH BROWN,TRIM4#
BLACK,TRIM2#
GREGE,TRIM4#
ASH BROWN,TRIM4#
BLACK,TRIM2#
ASH BROWN,TRIM4#
45187COVER, STEERING WHEEL, LOWER NO.3
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
ASH BROWN,TRIM4#
BLACK,TRIM2#
ASH BROWN,TRIM4#
45188SCREW, STEERING WHEEL PAD ATTACHING
45201PNUT, STEERING WHEEL SET
8401SWITCH & RELAY & COMPUTER
9015950199
main90159-50199
9016840113
main90168-40113
12 parts on this diagram · 4 diagrams in section

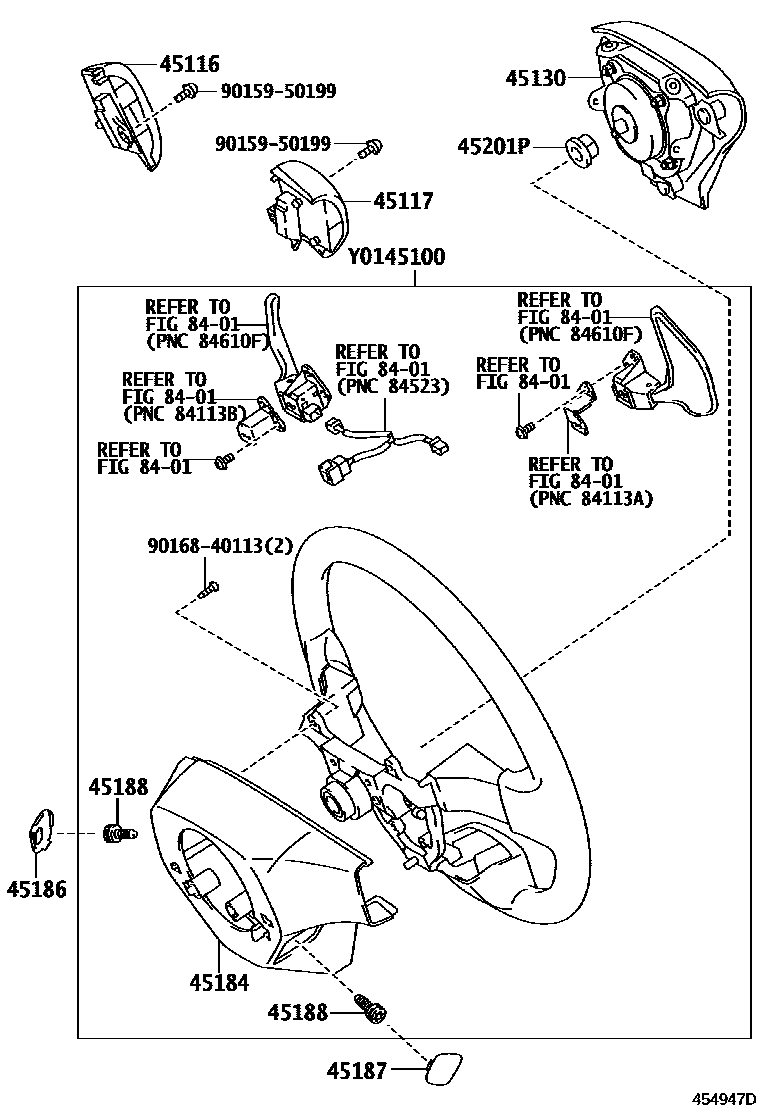

STEERING WHEEL for Toyota NOAH/VOXY
This section contains 13 genuine Toyota parts for the STEERING WHEEL system of the Toyota NOAH/VOXY. Key components include: WHEEL ASSY, STEERING, WIRE SUB-ASSY, HORN BUTTON, ORNAMENT, STEERING WHEEL, NO.1, ORNAMENT, STEERING WHEEL, NO.2, BUTTON ASSY, HORN.
