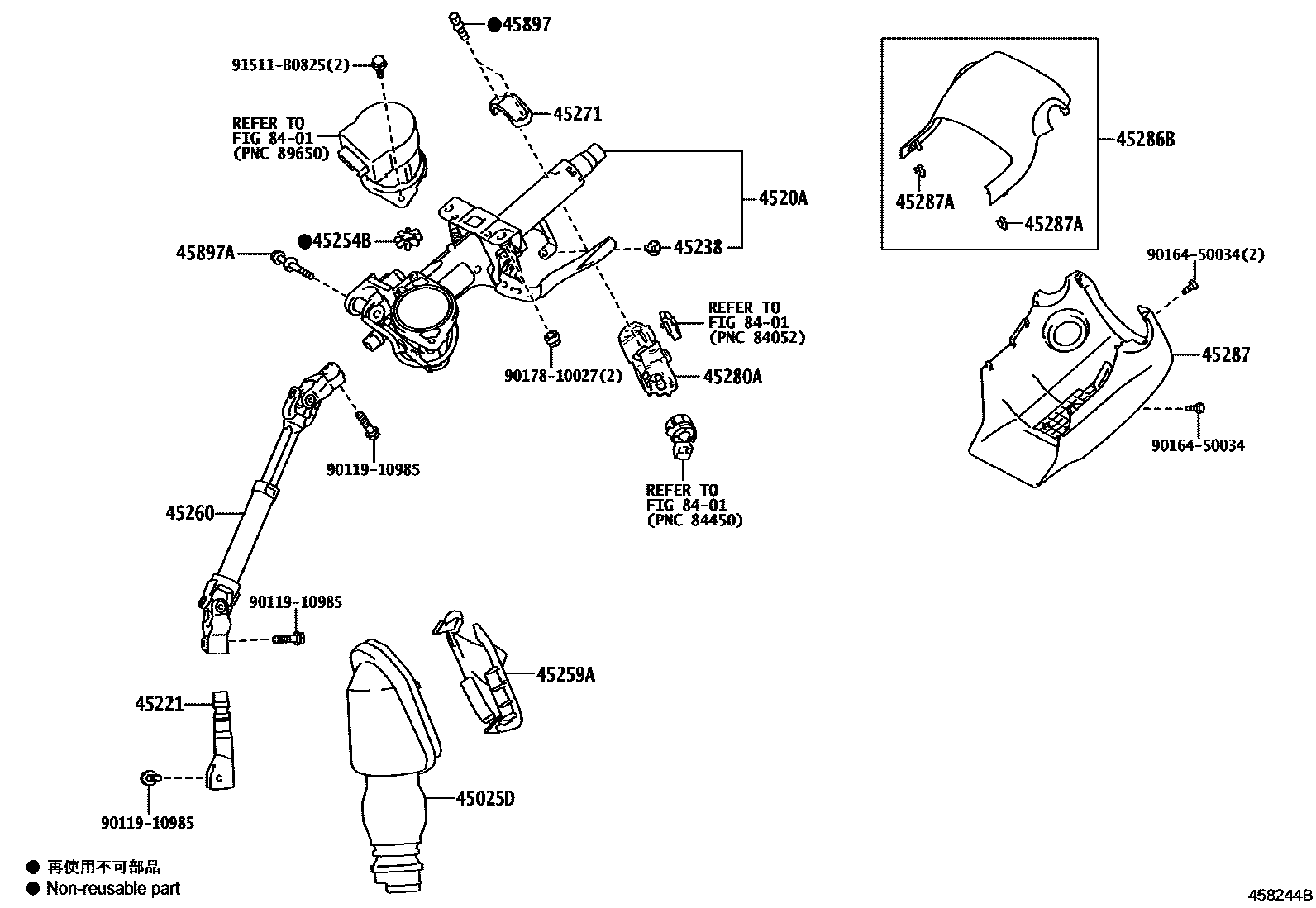

Toyota NOAH/VOXY — STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
45221SHAFT, STEERING INTERMEDIATE
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
main45286-28400-C0iMZRA9#,ZWR9#..G; MZRA9#..X; MZRA90,95,ZWR90,95..Z; MZRA92..08S..SG;MZRA95..SG..IV5202201-202501
BLACK,TRIM0#,2#; BLACK,TRIM1#; BLACK,TRIM2#; BLACK,TRIM2#,4#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM1#
main45024-12110-C0iMZRA9#,ZWR9#..G; MZRA90,95,ZWR90,95..Z; MZRA92..08S..SG;MZRA95..SG..IV5; MZRA95..X..IV5202201-202501
main45024-V1010-C0iMZRA9#,ZWR9#..G; MZRA90,95,ZWR90,95..Z; MZRA92..08S..SG;MZRA95..SG..IV5202301-202501
45287ACLIP(FOR STEERING COLUMN COVER)
main90467-05171×2iZWR9#..G,Z;MZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97..(G,X,Z)..CBU202201-202501
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
8401SWITCH & RELAY & COMPUTER
9011910985
main90119-10985
9016450034
main90164-50034
9017810027
main90178-10027
91511B0825
main91511-B0825
19 parts on this diagram · 2 diagrams in section
STEERING COLUMN & SHAFT for Toyota NOAH/VOXY
This section contains 21 genuine Toyota parts for the STEERING COLUMN & SHAFT system of the Toyota NOAH/VOXY. Key components include: ACTUATOR ASSY, STEERING LOCK(W/ECU), COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1, COLUMN SUB-ASSY, ELECTRIC POWER STEERING, SHAFT, STEERING INTERMEDIATE, CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING).
