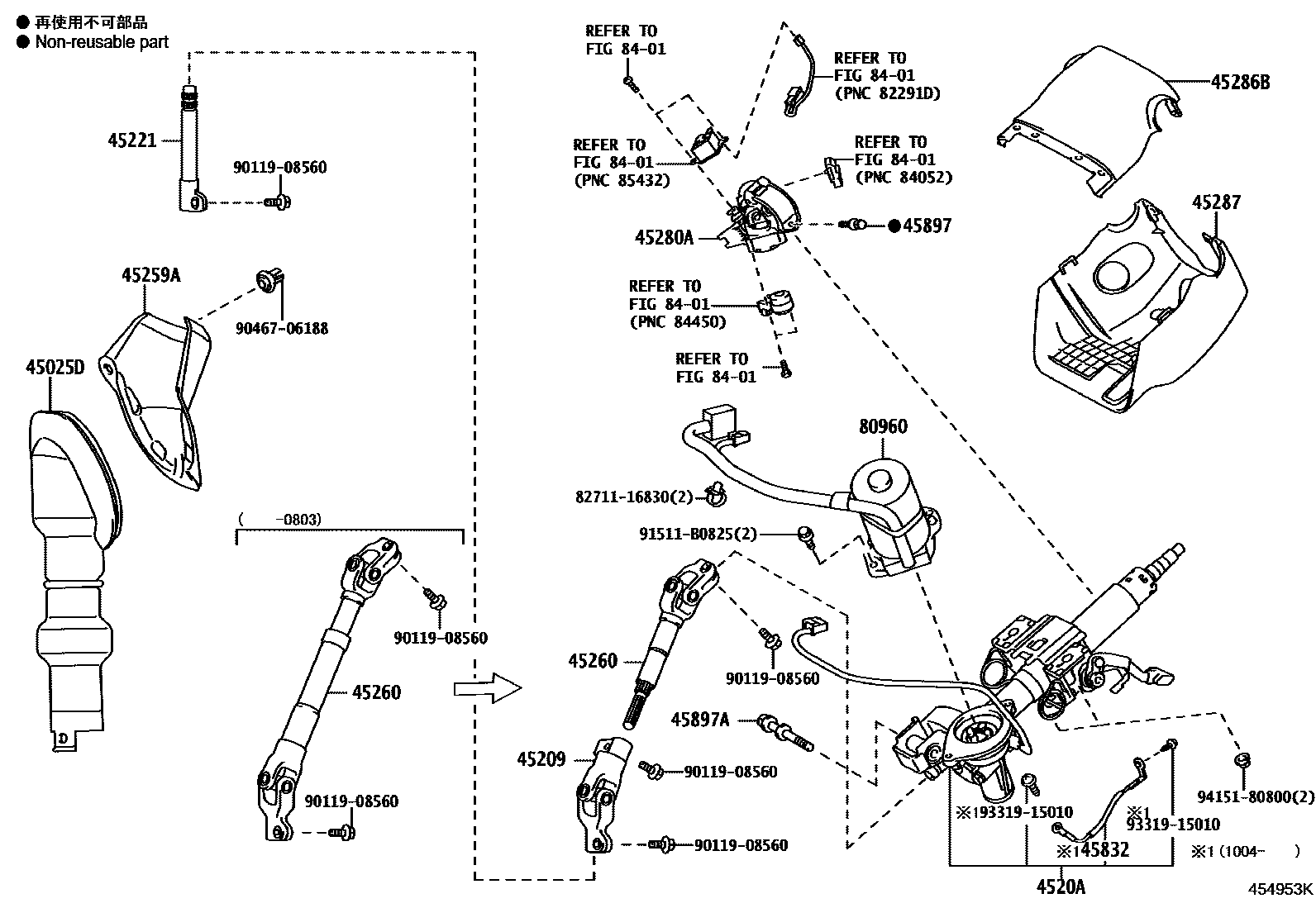

Toyota NOAH/VOXY — STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45209YOKE SUB-ASSY, STEERING SLIDING
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
main4520A-28080iZRR70..HTWVM..(CBU,IV5);ZRR75..(G,SI,V,ZS)..CBU; ZRR70..S,Z;ZRR75..(S,X,Z)..CBU; ZRR75..IV5200801-201004
45221SHAFT, STEERING INTERMEDIATE
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
main45286-28371-E2iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401
ASH BROWN,TRIM4#
45287COVER, STEERING COLUMN, LWR
DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
ASH BROWN,TRIM4#
45832CABLE, TILT STEERING SUPPORT BOND
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
80960MOTOR ASSY, POWER STEERING
8401SWITCH & RELAY & COMPUTER
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
9011908560
main90119-08560
9046706188
main90467-06188
91511B0825
main91511-B0825
9331915010
main93319-15010
9415180800
main94151-80800
20 parts on this diagram · 4 diagrams in section
STEERING COLUMN & SHAFT for Toyota NOAH/VOXY
This section contains 23 genuine Toyota parts for the STEERING COLUMN & SHAFT system of the Toyota NOAH/VOXY. Key components include: ACTUATOR ASSY, STEERING LOCK(W/ECU), COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1, YOKE SUB-ASSY, STEERING SLIDING, COLUMN SUB-ASSY, ELECTRIC POWER STEERING, SHAFT, STEERING INTERMEDIATE.
