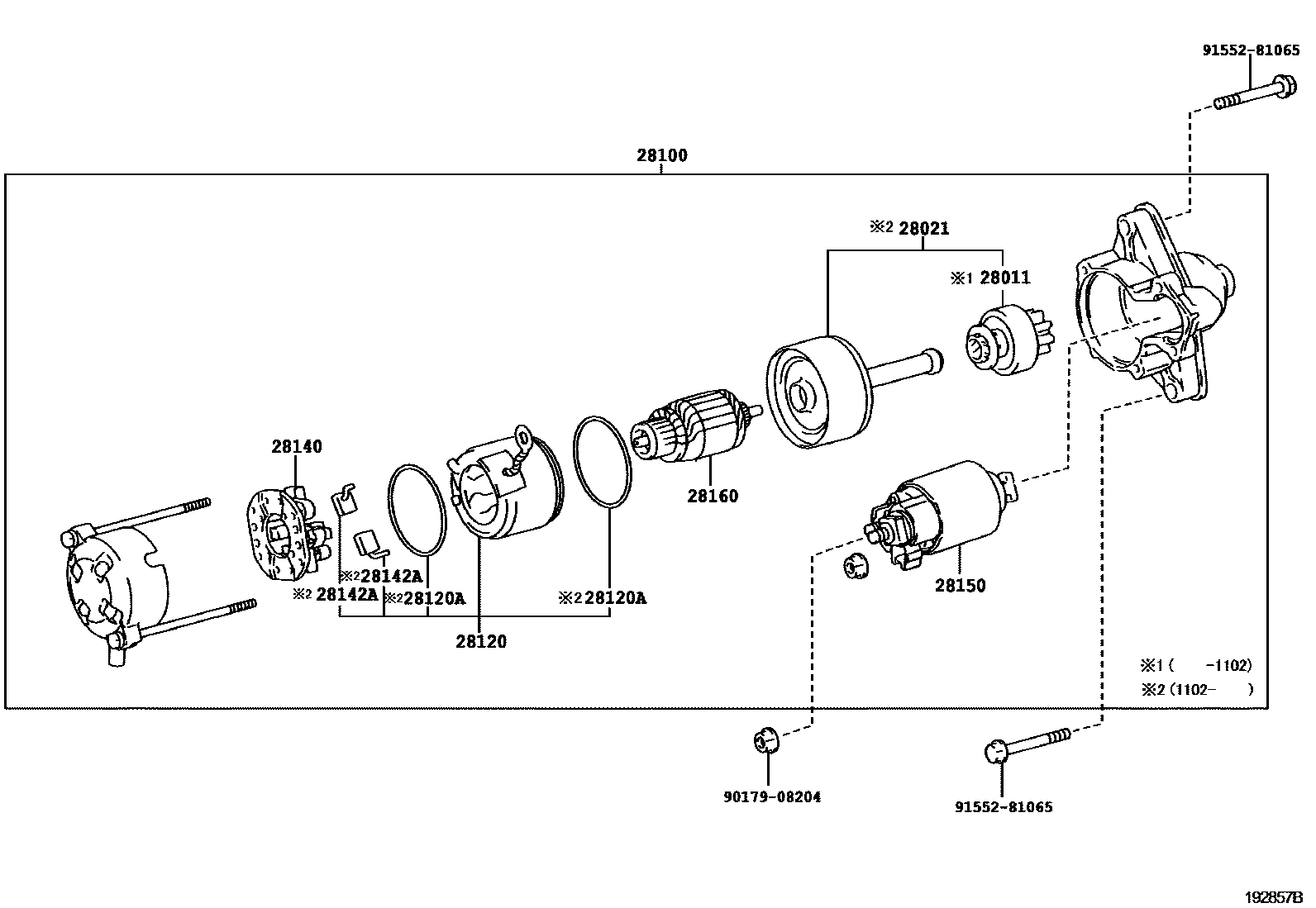

Toyota NOAH/VOXY — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-70020i3ZRFAE..ZRR7#..CBU,IV5201102-201401

28100STARTER ASSY

main28100-37030i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-200906

main28100-37031i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200907-201004

sub28100-37032

28120YOKE ASSY, STARTER

main28120-40130i3ZRFAE..ZRR7#..CBU,IV5201004-201401

main28120-70050i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-200907

28120ARING, O(FOR STARTER YOKE)

main90099-14092×2i3ZRFAE..ZRR7#..CBU,IV5201102-201401

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

28142ASTARTER KIT

main28142-70020×2i3ZRFAE..ZRR7#..CBU,IV5201102-201401

28150SWITCH ASSY, MAGNET STARTER

main28150-22100i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

28160ARMATURE ASSY, STARTER

main28160-70050i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

9017908204

main90179-08204

9155281065

main91552-81065

11 parts on this diagram · 1 diagram in section
