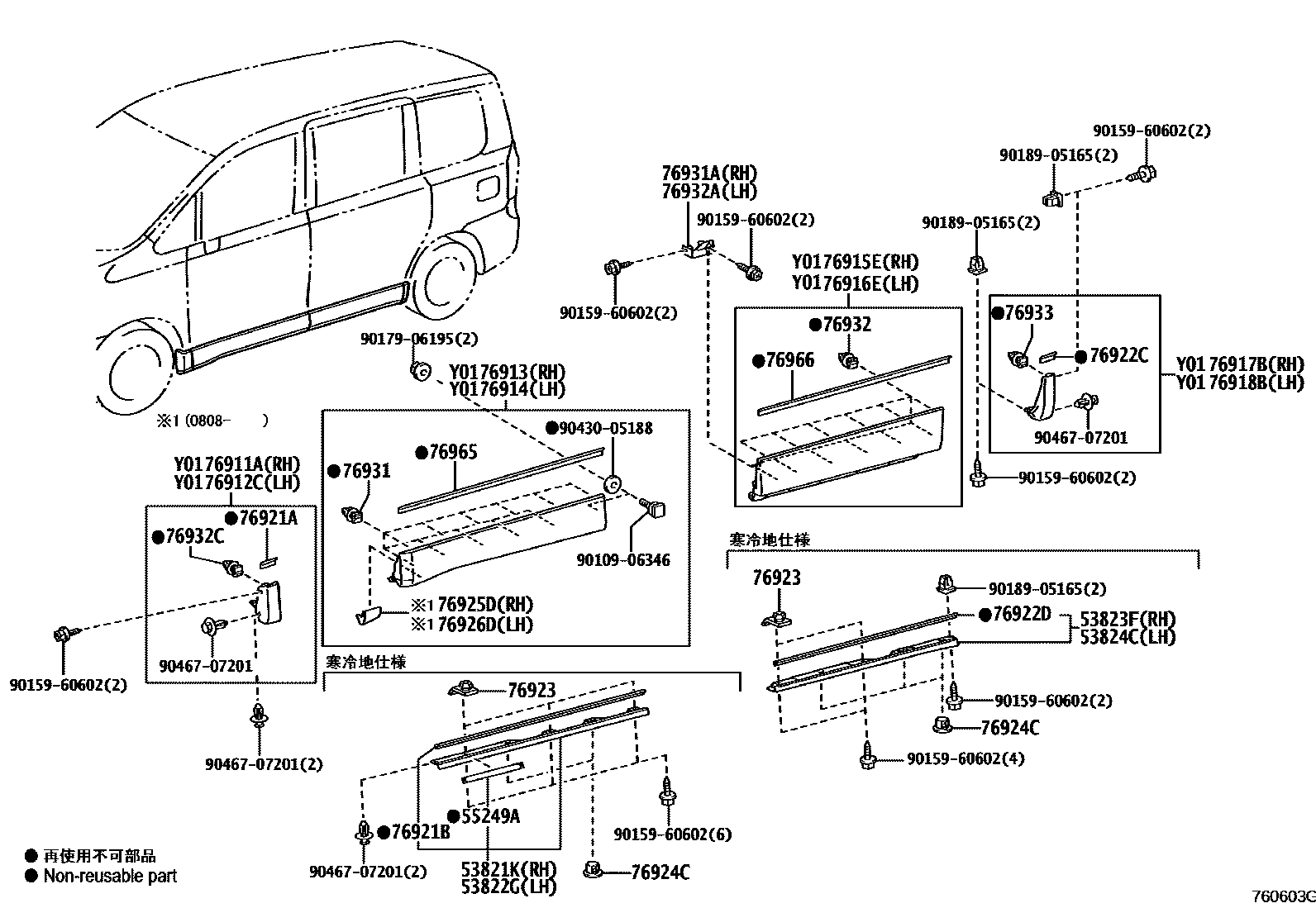

Toyota NOAH/VOXY — SPOILER & SIDE MUDGUARD

0001 1 0002 1 0003 1

53821KPROTECTOR, FRONT SIDE PANEL, NO.1 RH

53822GPROTECTOR, FRONT SIDE PANEL, NO.1 LH

53823FPROTECTOR, FRONT SIDE PANEL, NO.2 RH

53824CPROTECTOR, FRONT SIDE PANEL, NO.2 LH

55249ASEAL, FRONT PANEL

76911AMUDGUARD, FENDER PANEL, RH

main76901-28060-A1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

WHITE PEARL CS.,070

main76901-28060-B3iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

SILVER ME.,1F7

main76901-28060-B4iZRR7#..NOAH..(G,X,YY)..(CBU,IV5)200706-201401

GRAY ME.,1G3

main76901-28060-C1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

BLACK,202

main76901-28060-D0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

main76901-28060-D1iZRR7#..NOAH..X..CBU201209-201401

DEEP RED M.M.,3R9

main76901-28060-F0iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main76901-28060-J0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

main76901-28060-J1iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

main76901-28060-J2iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main76901-28060-K2iZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5)200706-201401

DK.VIOLET M.M.,9AF

main76901-28060-K3iZRR7#..NOAH..08S..X..CBU200904-201004

LT.PURPLE M.M.,9AE

main76901-28070-A0iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

WHITE PEARL CS.,070

main76901-28070-B3iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

SILVER ME.,1F7

main76901-28070-B4iZRR7#..(S,SI)..(CBU,IV5)200706-201401

GRAY ME.,1G3

main76901-28070-C1iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

BLACK,202

main76901-28070-D0iZRR70..ZS..IV5;ZRR7#..(SI,Z,ZS)..CBU201004-201401

DEEP RED M.M.,3R9

main76901-28070-K2iZRR7#..(Z,ZS)..(CBU,IV5)200706-201401

DK.VIOLET M.M.,9AF

76912CMUDGUARD, FENDER PANEL, LH

main76902-28060-A1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

WHITE PEARL CS.,070

main76902-28060-B3iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

SILVER ME.,1F7

main76902-28060-B4iZRR7#..(G,V,X,YY)..(CBU,IV5)200706-201401

GRAY ME.,1G3

main76902-28060-C1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

BLACK,202

main76902-28060-D0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

main76902-28060-D1iZRR7#..NOAH..X..CBU201209-201401

DEEP RED M.M.,3R9

main76902-28060-F0iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main76902-28060-J0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

main76902-28060-J1iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

main76902-28060-J2iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main76902-28060-K2iZRR7#..(G,TRASX,V,X)..(CBU,IV5)200706-201401

DK.VIOLET M.M.,9AF

main76902-28060-K3iZRR7#..NOAH..08S..X..CBU200904-201004

LT.PURPLE M.M.,9AE

main76902-28070-A0iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

WHITE PEARL CS.,070

main76902-28070-B3iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

SILVER ME.,1F7

main76902-28070-B4iZRR7#..(S,SI)..(CBU,IV5)200706-201401

GRAY ME.,1G3

main76902-28070-C1iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

BLACK,202

main76902-28070-D0iZRR70..ZS..IV5;ZRR7#..(SI,Z,ZS)..CBU201004-201401

DEEP RED M.M.,3R9

main76902-28070-K2iZRR7#..(Z,ZS)..(CBU,IV5)200706-201401

DK.VIOLET M.M.,9AF

76913MUDGUARD, FRONT DOOR, RH

main76903-28080-A1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-200808

WHITE PEARL CS.,070

sub76903-28081

main76903-28080-B3iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-200808

SILVER ME.,1F7

sub76903-28081

main76903-28080-B4iZRR7#..NOAH..(G,X,YY)..(CBU,IV5)200706-200808

GRAY ME.,1G3

sub76903-28081

main76903-28080-C1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-200808

BLACK,202

sub76903-28081

main76903-28080-D0iZRR7#..(G,V,X)..(CBU,IV5)200706-200808

DK. RED M.M.,3Q3

sub76903-28081

main76903-28080-J0iZRR7#..(G,V,X)..(CBU,IV5)200706-200808

DK.BLUE MC.,8S6

sub76903-28081

main76903-28080-J1iZRR7#..(G,V,X)..(CBU,IV5)200706-200808

LT.BLUE M.M.,8S7

sub76903-28081

main76903-28080-K2iZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5)200706-200808

DK.VIOLET M.M.,9AF

sub76903-28081

main76903-28081-A1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200809-201401

WHITE PEARL CS.,070

main76903-28081-B3iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200809-201401

SILVER ME.,1F7

main76903-28081-B4iZRR7#..NOAH..(G,X,YY)..(CBU,IV5)200809-201401

GRAY ME.,1G3

main76903-28081-C1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200809-201401

BLACK,202

main76903-28081-D0iZRR7#..(G,V,X)..(CBU,IV5)200809-201004

DK. RED M.M.,3Q3

main76903-28081-D1iZRR7#..NOAH..X..CBU201209-201401

DEEP RED M.M.,3R9

main76903-28081-F0iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main76903-28081-J0iZRR7#..(G,V,X)..(CBU,IV5)200809-201004

DK.BLUE MC.,8S6

main76903-28081-J1iZRR7#..(G,V,X)..(CBU,IV5)200809-201004

LT.BLUE M.M.,8S7

main76903-28081-J2iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main76903-28081-K2iZRR7#..(G,TRASX,V,X)..(CBU,IV5)200809-201401

DK.VIOLET M.M.,9AF

main76903-28081-K3iZRR7#..NOAH..08S..X..CBU200904-201004

LT.PURPLE M.M.,9AE

main76903-28090-A0iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-200808

WHITE PEARL CS.,070

sub76903-28091

main76903-28090-B3iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-200808

SILVER ME.,1F7

sub76903-28091

main76903-28090-B4iZRR7#..(S,SI)..(CBU,IV5)200706-200808

GRAY ME.,1G3

sub76903-28091

main76903-28090-C1iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-200808

BLACK,202

sub76903-28091

main76903-28090-K2iZRR7#..(Z,ZS)..(CBU,IV5)200706-200808

DK.VIOLET M.M.,9AF

sub76903-28091

main76903-28091-A0iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200809-201401

WHITE PEARL CS.,070

main76903-28091-B3iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200809-201401

SILVER ME.,1F7

main76903-28091-B4iZRR7#..(S,SI)..(CBU,IV5)200809-201401

GRAY ME.,1G3

main76903-28091-C1iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200809-201401

BLACK,202

main76903-28091-D0iZRR70..ZS..IV5;ZRR7#..(SI,Z,ZS)..CBU201004-201401

DEEP RED M.M.,3R9

main76903-28091-K2iZRR7#..(Z,ZS)..(CBU,IV5)200809-201401

DK.VIOLET M.M.,9AF

76914MUDGUARD, FRONT DOOR, LH

main76904-28080-A1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-200808

WHITE PEARL CS.,070

sub76904-28081

main76904-28080-B3iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-200808

SILVER ME.,1F7

sub76904-28081

main76904-28080-B4iZRR7#..NOAH..(G,X,YY)..(CBU,IV5)200706-200808

GRAY ME.,1G3

sub76904-28081

main76904-28080-C1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-200808

BLACK,202

sub76904-28081

main76904-28080-D0iZRR7#..(G,V,X)..(CBU,IV5)200706-200808

DK. RED M.M.,3Q3

sub76904-28081

main76904-28080-J0iZRR7#..(G,V,X)..(CBU,IV5)200706-200808

DK.BLUE MC.,8S6

sub76904-28081

main76904-28080-J1iZRR7#..(G,V,X)..(CBU,IV5)200706-200808

LT.BLUE M.M.,8S7

sub76904-28081

main76904-28080-K2iZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5)200706-200808

DK.VIOLET M.M.,9AF

sub76904-28081

main76904-28081-A1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200809-201401

WHITE PEARL CS.,070

main76904-28081-B3iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200809-201401

SILVER ME.,1F7

main76904-28081-B4iZRR7#..(G,V,X,YY)..(CBU,IV5)200809-201401

GRAY ME.,1G3

main76904-28081-C1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200809-201401

BLACK,202

main76904-28081-D0iZRR7#..(G,V,X)..(CBU,IV5)200809-201004

DK. RED M.M.,3Q3

main76904-28081-D1iZRR7#..NOAH..X..CBU201209-201401

DEEP RED M.M.,3R9

main76904-28081-F0iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main76904-28081-J0iZRR7#..(G,V,X)..(CBU,IV5)200809-201004

DK.BLUE MC.,8S6

main76904-28081-J1iZRR7#..(G,V,X)..(CBU,IV5)200809-201004

LT.BLUE M.M.,8S7

main76904-28081-J2iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main76904-28081-K2iZRR7#..(G,TRASX,V,X)..(CBU,IV5)200809-201401

DK.VIOLET M.M.,9AF

main76904-28081-K3iZRR7#..NOAH..08S..X..CBU200904-201004

LT.PURPLE M.M.,9AE

main76904-28090-A0iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-200808

WHITE PEARL CS.,070

sub76904-28091

main76904-28090-B3iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-200808

SILVER ME.,1F7

sub76904-28091

main76904-28090-B4iZRR7#..(S,SI)..(CBU,IV5)200706-200808

GRAY ME.,1G3

sub76904-28091

main76904-28090-C1iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-200808

BLACK,202

sub76904-28091

main76904-28090-K2iZRR7#..(Z,ZS)..(CBU,IV5)200706-200808

DK.VIOLET M.M.,9AF

sub76904-28091

main76904-28091-A0iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200809-201401

WHITE PEARL CS.,070

main76904-28091-B3iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200809-201401

SILVER ME.,1F7

main76904-28091-B4iZRR7#..(S,SI)..(CBU,IV5)200809-201401

GRAY ME.,1G3

main76904-28091-C1iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200809-201401

BLACK,202

main76904-28091-D0iZRR70..ZS..IV5;ZRR7#..(SI,Z,ZS)..CBU201004-201401

DEEP RED M.M.,3R9

main76904-28091-K2iZRR7#..(Z,ZS)..(CBU,IV5)200809-201401

DK.VIOLET M.M.,9AF

76915EMUDGUARD, SLIDE DOOR, RH

main76905-28110-A1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

WHITE PEARL CS.,070

main76905-28110-B3iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

SILVER ME.,1F7

main76905-28110-B4iZRR7#..NOAH..(G,X,YY)..(CBU,IV5)200706-201401

GRAY ME.,1G3

main76905-28110-C1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

BLACK,202

main76905-28110-D0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

main76905-28110-D1iZRR7#..NOAH..X..CBU201209-201401

DEEP RED M.M.,3R9

main76905-28110-F0iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main76905-28110-J0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

main76905-28110-J1iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

main76905-28110-J2iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main76905-28110-K2iZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5)200706-201401

DK.VIOLET M.M.,9AF

main76905-28110-K3iZRR7#..NOAH..08S..X..CBU200904-201004

LT.PURPLE M.M.,9AE

main76905-28120-A0iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

WHITE PEARL CS.,070

main76905-28120-B3iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

SILVER ME.,1F7

main76905-28120-B4iZRR7#..(S,SI)..(CBU,IV5)200706-201401

GRAY ME.,1G3

main76905-28120-C1iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

BLACK,202

main76905-28120-D0iZRR70..ZS..IV5;ZRR7#..(SI,Z,ZS)..CBU201004-201401

DEEP RED M.M.,3R9

main76905-28120-K2iZRR7#..(Z,ZS)..(CBU,IV5)200706-201401

DK.VIOLET M.M.,9AF

76916EMUDGUARD, SLIDE DOOR, LH

main76906-28110-A1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

WHITE PEARL CS.,070

main76906-28110-B3iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

SILVER ME.,1F7

main76906-28110-B4iZRR7#..(G,V,X,YY)..(CBU,IV5)200706-201401

GRAY ME.,1G3

main76906-28110-C1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

BLACK,202

main76906-28110-D0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

main76906-28110-D1iZRR7#..NOAH..X..CBU201209-201401

DEEP RED M.M.,3R9

main76906-28110-F0iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main76906-28110-J0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

main76906-28110-J1iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

main76906-28110-J2iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main76906-28110-K2iZRR7#..(G,TRASX,V,X)..(CBU,IV5)200706-201401

DK.VIOLET M.M.,9AF

main76906-28110-K3iZRR7#..NOAH..08S..X..CBU200904-201004

LT.PURPLE M.M.,9AE

main76906-28120-A0iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

WHITE PEARL CS.,070

main76906-28120-B3iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

SILVER ME.,1F7

main76906-28120-B4iZRR7#..(S,SI)..(CBU,IV5)200706-201401

GRAY ME.,1G3

main76906-28120-C1iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

BLACK,202

main76906-28120-D0iZRR70..ZS..IV5;ZRR7#..(SI,Z,ZS)..CBU201004-201401

DEEP RED M.M.,3R9

main76906-28120-K2iZRR7#..(Z,ZS)..(CBU,IV5)200706-201401

DK.VIOLET M.M.,9AF

76917BMUDGUARD, QUARTER PANEL, RH

main76907-28060-A1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

WHITE PEARL CS.,070

main76907-28060-B3iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

SILVER ME.,1F7

main76907-28060-B4iZRR7#..(G,V,X,YY)..(CBU,IV5)200706-201401

GRAY ME.,1G3

main76907-28060-C1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

BLACK,202

main76907-28060-D0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

main76907-28060-D1iZRR7#..NOAH..X..CBU201209-201401

DEEP RED M.M.,3R9

main76907-28060-F0iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main76907-28060-J0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

main76907-28060-J1iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

main76907-28060-J2iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main76907-28060-K2iZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5)200706-201401

DK.VIOLET M.M.,9AF

main76907-28060-K3iZRR7#..NOAH..08S..X..CBU200904-201004

LT.PURPLE M.M.,9AE

main76907-28070-A0iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

WHITE PEARL CS.,070

main76907-28070-B3iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

SILVER ME.,1F7

main76907-28070-B4iZRR7#..(S,SI)..(CBU,IV5)200706-201401

GRAY ME.,1G3

main76907-28070-C1iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

BLACK,202

main76907-28070-D0iZRR70..ZS..IV5;ZRR7#..(SI,Z,ZS)..CBU201004-201401

DEEP RED M.M.,3R9

main76907-28070-K2iZRR7#..(Z,ZS)..(CBU,IV5)200706-201401

DK.VIOLET M.M.,9AF

76918BMUDGUARD, QUARTER PANEL, LH

main76908-28060-A1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

WHITE PEARL CS.,070

main76908-28060-B3iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

SILVER ME.,1F7

main76908-28060-B4iZRR7#..(G,V,X,YY)..(CBU,IV5)200706-201401

GRAY ME.,1G3

main76908-28060-C1iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

BLACK,202

main76908-28060-D0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

main76908-28060-D1iZRR7#..NOAH..X..CBU201209-201401

DEEP RED M.M.,3R9

main76908-28060-F0iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main76908-28060-J0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

main76908-28060-J1iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

main76908-28060-J2iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main76908-28060-K2iZRR7#..(G,TRASX,V,X)..(CBU,IV5)200706-201401

DK.VIOLET M.M.,9AF

main76908-28060-K3iZRR7#..NOAH..08S..X..CBU200904-201004

LT.PURPLE M.M.,9AE

main76908-28070-A0iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

WHITE PEARL CS.,070

main76908-28070-B3iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

SILVER ME.,1F7

main76908-28070-B4iZRR7#..(S,SI)..(CBU,IV5)200706-201401

GRAY ME.,1G3

main76908-28070-C1iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

BLACK,202

main76908-28070-D0iZRR70..ZS..IV5;ZRR7#..(SI,Z,ZS)..CBU201004-201401

DEEP RED M.M.,3R9

main76908-28070-K2iZRR7#..(Z,ZS)..(CBU,IV5)200706-201401

DK.VIOLET M.M.,9AF

76921APROTECTOR, SIDE MUDGUARD, NO.1

main76921-28070iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

76921BPROTECTOR, SIDE MUDGUARD, NO.1

76922CPROTECTOR, SIDE MUDGUARD, NO.2

main76922-28080iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

main76922-28090-B0iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

LT. GRAY,070

main76922-28090-B1iZRR7#..(S,SI)..(CBU,IV5)200706-201004

DARK GRAY,202 ,9AF

main76922-28090-B1iZRR7#..(Z,ZS)..(CBU,IV5)200706-201401

DARK GRAY,1G3 ,202

main76922-28090-B1iZRR7#..SI..CBU201004-201401

DARK GRAY,1G3 ,202 ,3R9

main76922-28090-B1iZRR7#..SI..CBU201004-201401

DARK GRAY,1G3 ,1H4 ,202 ,3R9 ,9AF

main76922-28090-B1iZRR7#..SI..CBU201004-201401

DARK GRAY,202 ,3R9 ,9AF

main76922-28090-B2iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

MEDIUM GRAY,1F7

76922DPROTECTOR, SIDE MUDGUARD, NO.2

76923RETAINER, SIDE MUDGUARD

main53867-28030

76924CRETAINER, SIDE MUDGUARD, NO.2

76925DPROTECTOR, SIDE MUDGUARD, RH

main76925-28120iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-200808

sub76925-28121

main76925-28121iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200809-201401

main76925-28150iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200809-201401

76926DPROTECTOR, SIDE MUDGUARD, LH

main76926-28120iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-200808

sub76926-28121

main76926-28121iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200809-201401

main76926-28150iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200809-201401

76931RETAINER, SIDE MUDGUARD, NO.3

main76932-26010iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

76931ABRACKET, SIDE MUDGUARD, NO.1 RH

main76931-28040iZRR7#..CBU,IV5200706-201401

76932RETAINER, SIDE MUDGUARD, NO.4

main76932-26010iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

76932ABRACKET, SIDE MUDGUARD, NO.1 LH

main76932-28070iZRR7#..CBU,IV5200706-201401

76932CRETAINER, FENDER PANEL MUDGUARD

main76932-26010iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

76933RETAINER, SIDE MUDGUARD, NO.5

main76932-26010iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

main76932-28030iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

76965PROTECTOR, FRONT DOOR LOWER MUDGUARD

main76965-28070iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

main76965-28080-B0iZRR7#..SI..(CBU,IV5)200706-201401

LT. GRAY,070

main76965-28080-B1iZRR7#..(Z,ZS)..(CBU,IV5)200706-201004

DARK GRAY,202 ,9AF

main76965-28080-B1iZRR7#..(S,SI)..(CBU,IV5)200706-201401

DARK GRAY,1G3 ,202

main76965-28080-B1iZRR7#..SI..CBU201004-201401

DARK GRAY,1G3 ,202 ,3R9

main76965-28080-B1iZRR7#..SI..CBU201004-201401

DARK GRAY,202 ,3R9 ,9AF

main76965-28080-B2iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

MEDIUM GRAY,1F7

76966PROTECTOR, SLIDE DOOR LOWER MUDGUARD

main76966-28070iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

main76966-28080-B0iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

LT. GRAY,070

sub76965-28080

main76966-28080-B1iZRR7#..S;ZRR70..SI..IV5200706-201401

DARK GRAY,1G3 ,202

sub76965-28080

main76966-28080-B1iZRR7#..(Z,ZS)..(CBU,IV5)200706-201004

DARK GRAY,202 ,9AF

sub76965-28080

main76966-28080-B1iZRR7#..S;ZRR70..SI..IV5201004-201401

DARK GRAY,202 ,3R9 ,9AF

sub76965-28080

main76966-28080-B1iZRR7#..S;ZRR70..SI..IV5201004-201401

DARK GRAY,1G3 ,202 ,3R9

sub76965-28080

main76966-28080-B2iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

MEDIUM GRAY,1F7

sub76965-28080

9010906346

main90109-06346

9015960602

main90159-60602

9017906195

main90179-06195

9018905165

main90189-05165

9043005188

main90430-05188

9046707201

main90467-07201

35 parts on this diagram · 3 diagrams in section
