Toyota NOAH/VOXY — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-22A10iZRR7#..CBU,IV5201004-201109

main86160-22A10iZRR7#..CBU,IV5200706-201004

main86160-52300iZRR7#..CBU,IV5201110-201401

86160BSPEAKER ASSY, REAR

main86160-28720iZRR7#..08S..X..CBU200706-201004

main86160-28720iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU200706-201004

main86160-28720iZRR7#..X..IV5;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)201004-201401

main86160-28720iZRR7#..X..IV5;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)201004-201401

main86160-28770iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU200706-201401

86160DSPEAKER ASSY, STEREO COMPONENT, FRONT

86160PSPEAKER ASSY, FRONT NO.2

86160QSPEAKER ASSY, ROOF

main86160-28660iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-201004

main86160-28660iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-201004

main86160-28660iZRR7#..X..IV5;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)201004-201401

main86160-28660iZRR7#..X..IV5;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)201004-201401

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-28070iZRR7#..CBU,IV5200706-201401

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9011906915

main90119-06915

9015950327

main90159-50327

9026905034

main90269-05034

9095006117

main90950-06117

9155380612

main91553-80612

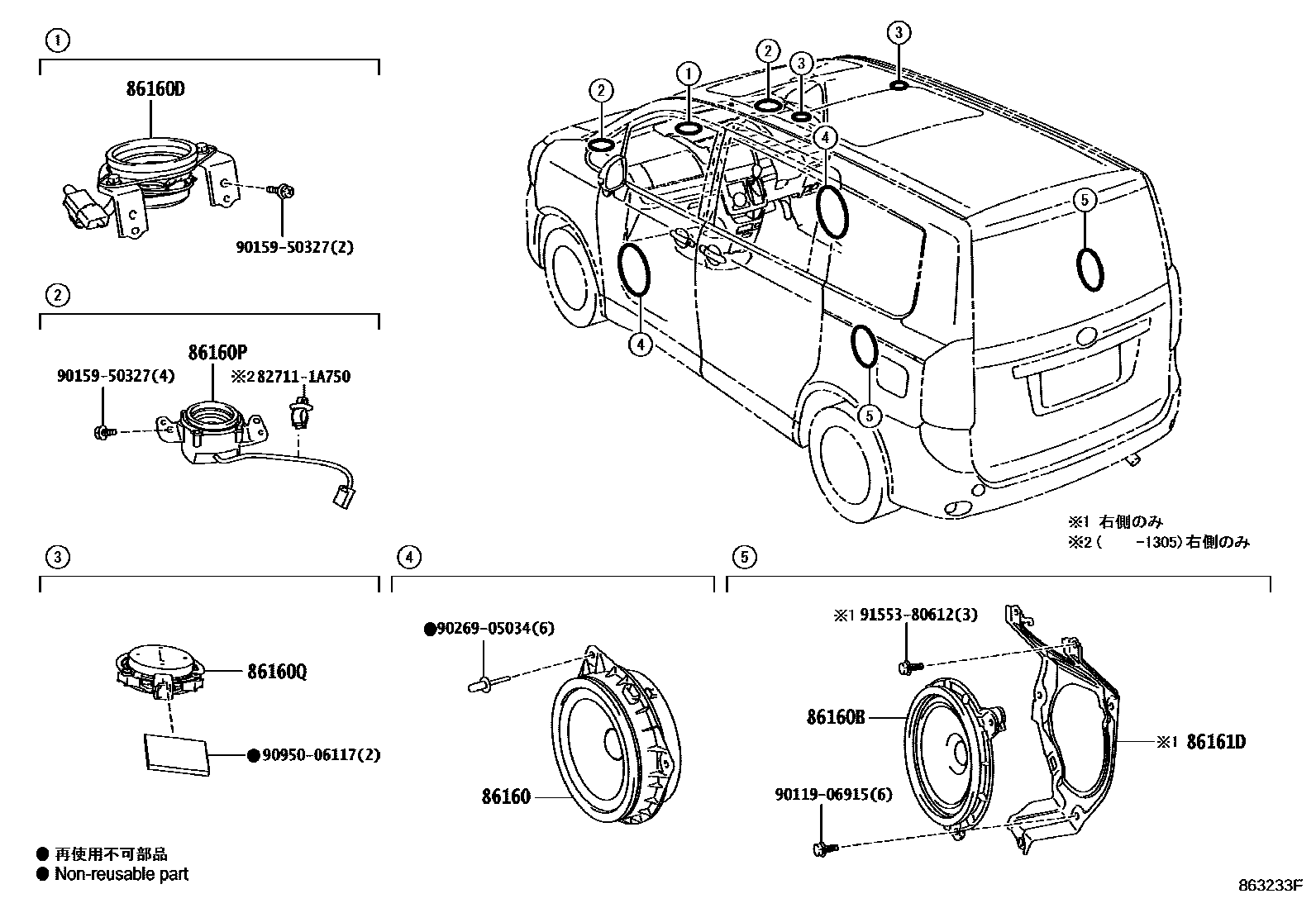

12 parts on this diagram · 1 diagram in section
