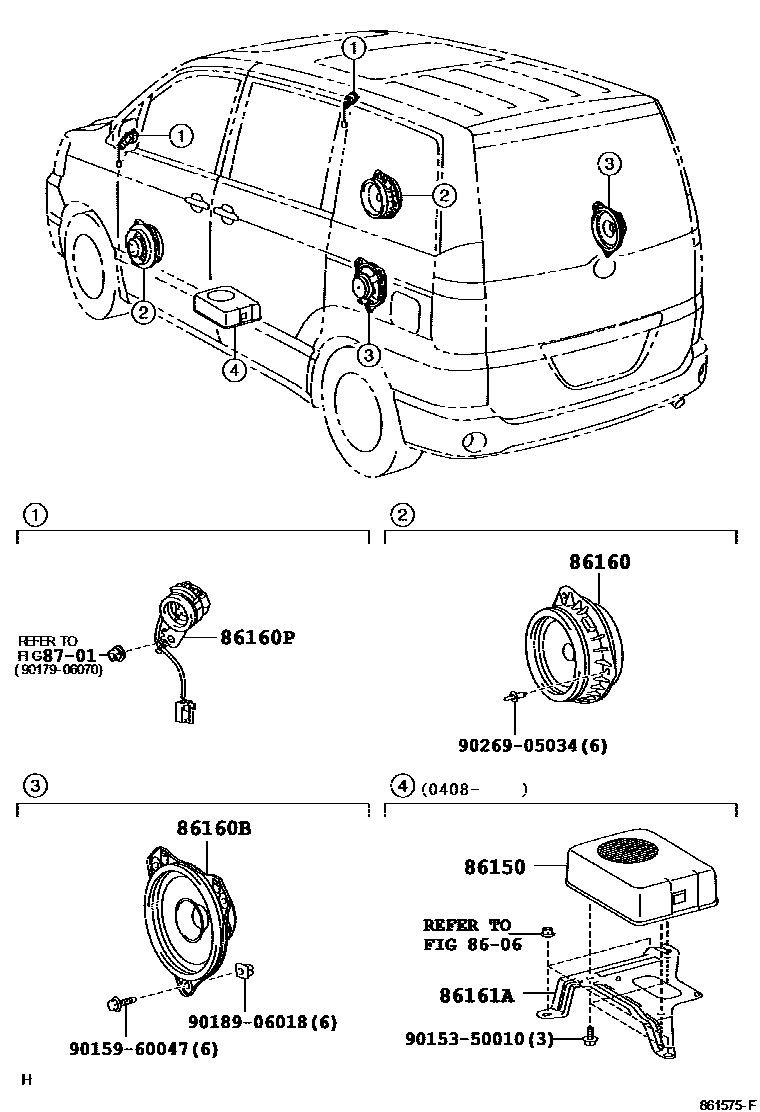

Toyota NOAH/VOXY — SPEAKER

8606

86150SPEAKER ASSY, W/BOX, NO.1

main86150-21010iAZR6#..07S,08S200408

86160SPEAKER ASSY, FRONT NO.1

main86160-22A10×2iAZR6#200408

main86160-44120×2iAZR6#..4HC200111-200308

main86160-68090×2iAZR6#200308-200408

86160BSPEAKER ASSY, REAR

main86160-28550×2iAZR6#200408

86160PSPEAKER ASSY, FRONT NO.2

main86160-28560iAZR6#200111-200408

main86160-28570iAZR6#200111-200408

86161ABRACKET, SPEAKER, REAR

main86161-28060iAZR6#..07S,08S200408

8701

9015350010

main90153-50010

9015960047

main90159-60047

9018906018

main90189-06018

9026905034

main90269-05034

11 parts on this diagram · 1 diagram in section
