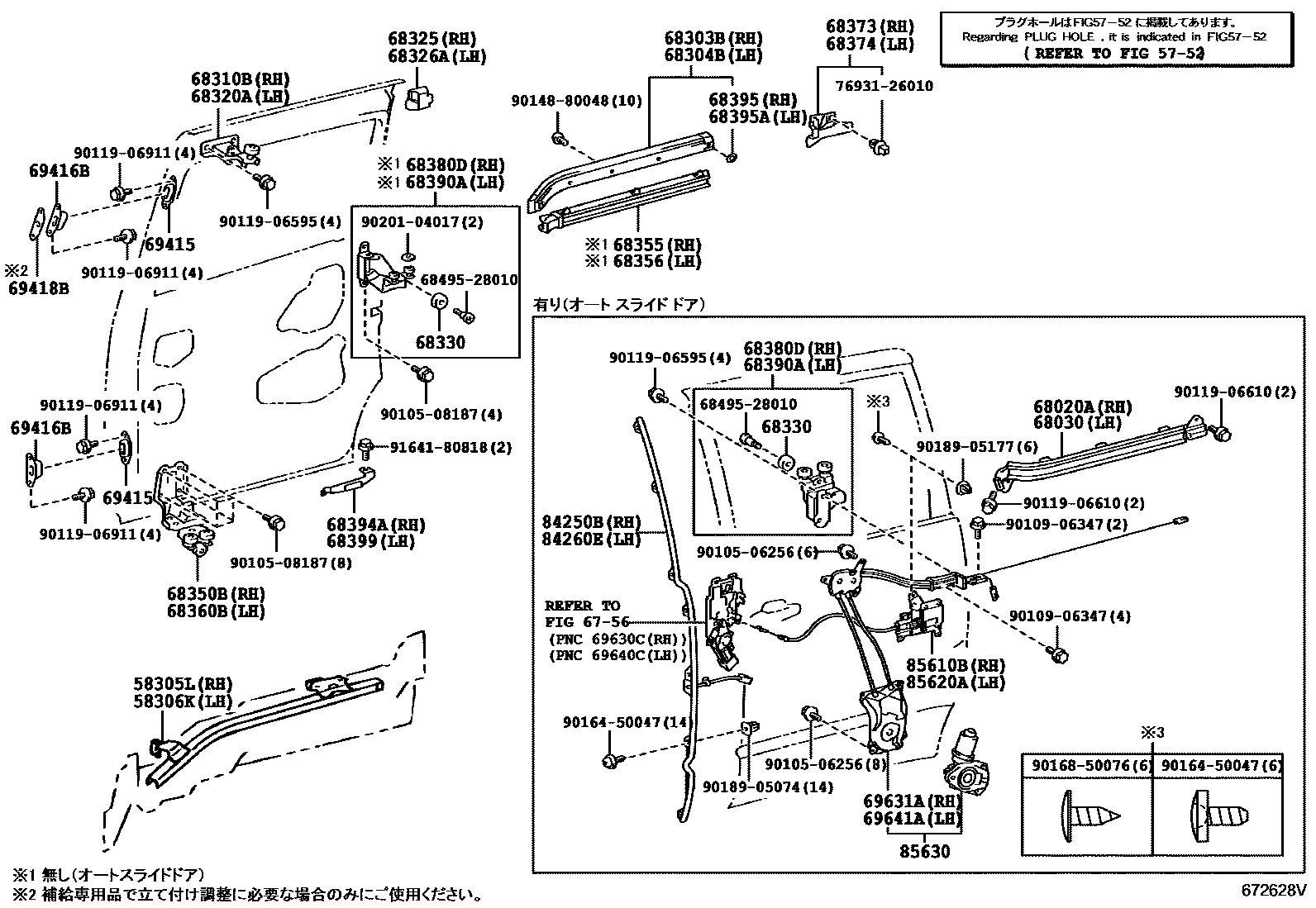

Toyota NOAH/VOXY — SLIDE ROLLER & RAIL
5752
58305LGUIDE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH
58306KGUIDE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH
6756
68020AGUIDE ASSY, SLIDE DOOR CABLE, RH
68030GUIDE ASSY, SLIDE DOOR CABLE
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68310BROLLER ASSY, SLIDE DOOR, UPPER RH
68320AROLLER ASSY, SLIDE DOOR, UPPER, LH
68350BROLLER ASSY, SLIDE DOOR, LOWER RH
68355GARNISH, SLIDE DOOR CENTER RAIL, RH
68356GARNISH, SLIDE DOOR CENTER RAIL, LH
68360BROLLER ASSY, SLIDE DOOR, LOWER LH
68373MOULDING, SLIDE RAIL END, RH
68374MOULDING, SLIDE RAIL END, LH
68394APLATE, SLIDE DOOR LOWER RAIL, RH
68395PACKING, SLIDE DOOR CENTER RAIL
68395APACKING, SLIDE DOOR CENTER RAIL
68399PLATE, SLIDE DOOR LOWER RAIL, LH
69418BSHIM, SLIDE DOOR DOWN STOP MALE
69631ACONTROL, SLIDE DOOR ATTACHMENT, RH
69641ACONTROL, SLIDE DOOR ATTACHMENT, LH
84250BSENSOR ASSY, POWER SLIDE DOOR, RH
85610BMOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH
85620AMOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH
85630MOTOR ASSY, SLIDE DOOR
sub85005-28011
sub85005-28012
sub85006-28021
sub85006-28022
sub85006-28022
sub85006-28023
6849528010
main68495-28010
7693126010RETAINER, SIDE MUDGUARD, NO.3
main76931-26010
9010506256
main90105-06256
9010508187
main90105-08187
9010906347
main90109-06347
9011906595
main90119-06595
9011906610
main90119-06610
9011906911
main90119-06911
9014880048
main90148-80048
9016450047
main90164-50047
9016850076
main90168-50076
9018905074
main90189-05074
9018905177
main90189-05177
9020104017
main90201-04017
9164180818
main91641-80818
50 parts on this diagram · 1 diagram in section
