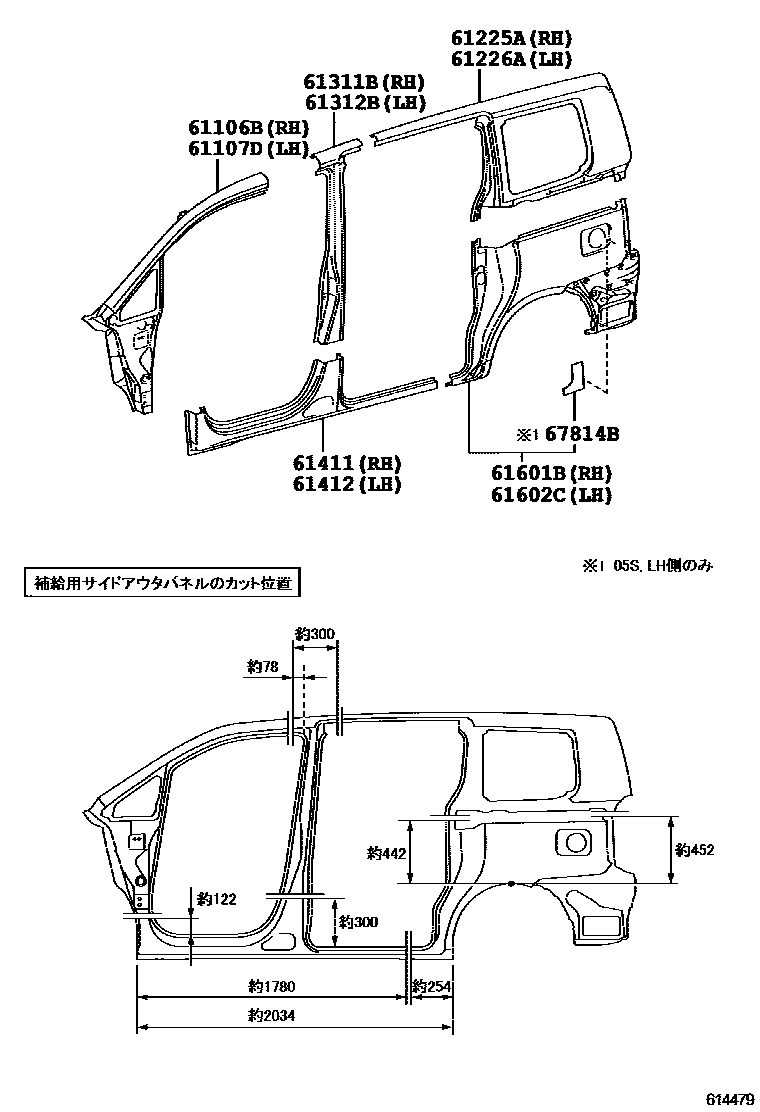

Toyota NOAH/VOXY — SIDE MEMBER

0001 1������� 0002 1RH,������� 0003 1LH,�������

61106BPILLAR SUB-ASSY, FRONT, RH

main61106-28060iZRR7#..CBU,IV5200706-201004

61107DPILLAR SUB-ASSY, FRONT, LH

main61107-28060iZRR7#..CBU,IV5200706-201004

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-28020iZRR7#..CBU,IV5200706-201004

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-28020iZRR7#..CBU,IV5201004-201401

61311BPILLAR, CENTER BODY, OUTER RH

main61311-28140iZRR7#..CBU,IV5200706-201004

61312BPILLAR, CENTER BODY, OUTER LH

main61312-28140iZRR7#..CBU,IV5200706-201004

61411PANEL, ROCKER, OUTER RH

main61411-28080iZRR7#..CBU,IV5200706-201002

main61411-28090iZRR7#..CBU,IV5201004-201401

61412PANEL, ROCKER, OUTER LH

main61412-28070iZRR7#..CBU,IV5201004-201401

main61412-28080iZRR7#..CBU,IV5200706-201002

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-28B10iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)201004-201401

main61601-28B00supersedes 61601-28A90iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201004

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-28B10iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

main61602-28B00supersedes 61602-28A90iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

main61602-28B30supersedes 61602-28B20iZRR7#..05S200706-201004

67814BSHEET, QUARTER PANEL SILENCER, LH

main67814-28030iZRR7#..05S200706-201004

11 parts on this diagram · 3 diagrams in section
