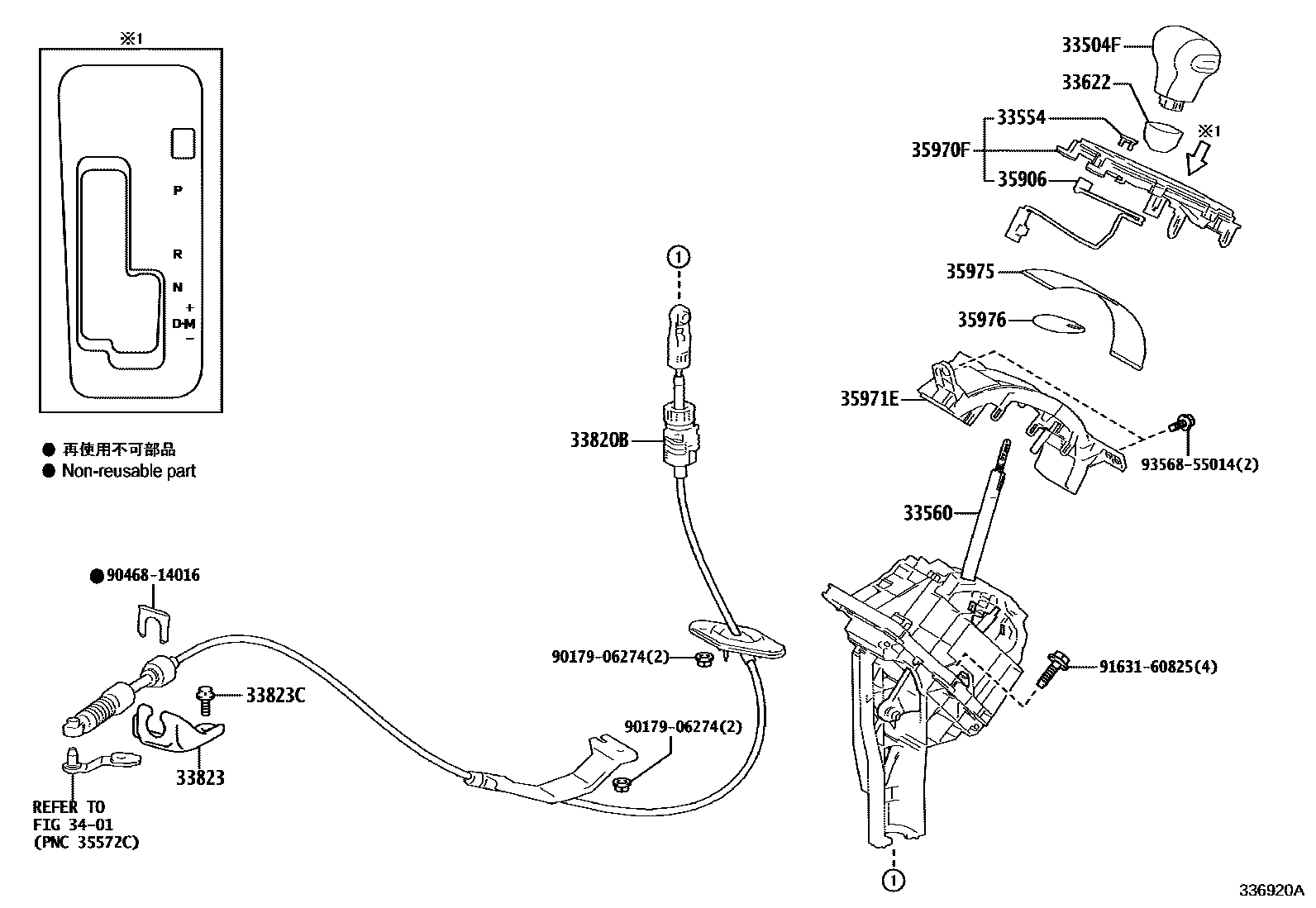

Toyota NOAH/VOXY — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
33554CAP, SHIFT LEVER
main33554-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU; ZWR9#..SG,SZ202201
33560UNIT ASSY, SHIFT LOCK CONTROL
main33560-28150supersedes 33560-28140iMZRA9#..G,Z;MZRA92..08S..SG;MZRA95..SG..IV5; MZRA95..X..IV5202201-202501
33622COVER, SHIFT LEVER KNOB, NO.1
33820BCABLE ASSY, TRANSMISSION CONTROL
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
3401TRANSAXLE ASSY(CVT)
35906WIRE SUB-ASSY, INDICATOR LAMP
main35906-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU; ZWR9#..SG,SZ202201
35970FHOUSING ASSY, POSITION INDICATOR
35971EHOUSING, POSITION INDICATOR
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
9017906274
main90179-06274
9046814016
main90468-14016
9163160825
main91631-60825
9356855014
main93568-55014
17 parts on this diagram · 3 diagrams in section
SHIFT LEVER & RETAINER for Toyota NOAH/VOXY
This section contains 24 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota NOAH/VOXY. Key components include: KNOB SUB-ASSY, SHIFT LEVER, SHIFT ASSY, TRANSMISSION INSTRUMENT PANEL, CAP, SHIFT LEVER, UNIT ASSY, SHIFT LOCK CONTROL, COVER, SHIFT LEVER KNOB, NO.1.
