Toyota NOAH/VOXY — SEAT RAIL

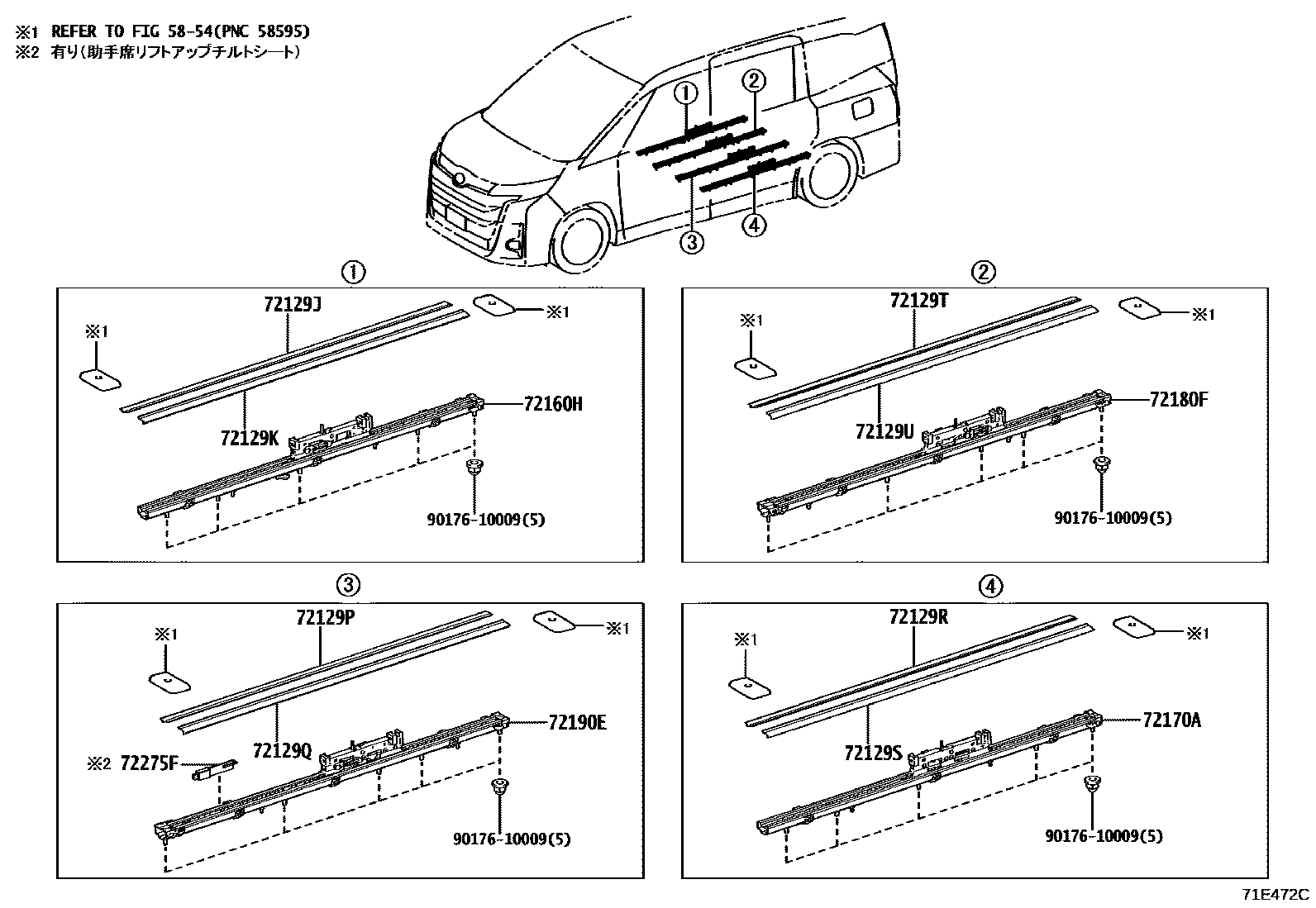

Parts diagram

5854FLOOR MAT & SILENCER PAD

→ Go to FIG 58-54

72129JPROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1

main72129-V1010i202201-202501

main72129-V1030i202201-202501

72129KPROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2

main72129-V1010i202201-202501

main72129-V1030i202201

72129PPROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1

main72129-V1030i202201

main72129-V1050i202201-202501

main72129-V1070i202201-202501

main72129-V1060i202201

72129QPROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2

main72129-V1030i202201-202501

main72129-V1050i202201-202501

main72129-V1070i202201-202501

main72129-V1060i202201

72129RPROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1

main72129-V1010i202201-202501

main72129-V1030i202201

72129SPROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2

main72129-V1010i202201

main72129-V1030i202201-202501

72129TPROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1

main72129-V1030i202201

main72129-V1050i202201-202501

main72129-V1060i202201-202501

main72129-V1070i202201

72129UPROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2

main72129-V1030i202201-202501

main72129-V1050i202201

main72129-V1060i202201-202501

main72129-V1070i202201

72160HTRACK ASSY, REAR SEAT, OUTER RH

main72160-V1010i202201-202501

main72160-V1020i202201

main72160-V1030i202201-202501

72170ATRACK ASSY, REAR SEAT, OUTER LH

main72170-V1010i202201

main72170-V1020i202201-202501

main72170-V1030i202201-202501

main72170-V1040i202201

72180FTRACK ASSY, REAR SEAT, INNER RH

main72180-V1020i202201

main72180-V1030i202201-202501

main72180-V1040i202201-202501

main72180-V1050i202201

72190ETRACK ASSY, REAR SEAT, INNER LH

main72190-V1010i202201-202501

main72190-V1020i202201

main72190-V1030i202201-202501

main72190-V1040i202201

main72190-V1050i202201-202502

72275FSTOPPER, REAR SEAT TRACK SLIDE, LH NO.1

main72275-V1010i202201-202502

main72275-V1020i202201

9017610009

main90176-10009

15 parts on this diagram · 5 diagrams in section

SEAT RAIL for Toyota NOAH/VOXY

This section contains 18 genuine Toyota parts for the SEAT RAIL system of the Toyota NOAH/VOXY. Key components include: FLOOR MAT & SILENCER PAD, RAIL SUB-ASSY, SEAT TRACK, LWR RH, RAIL SUB-ASSY, SEAT TRACK, LWR LH, PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1, PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2.
