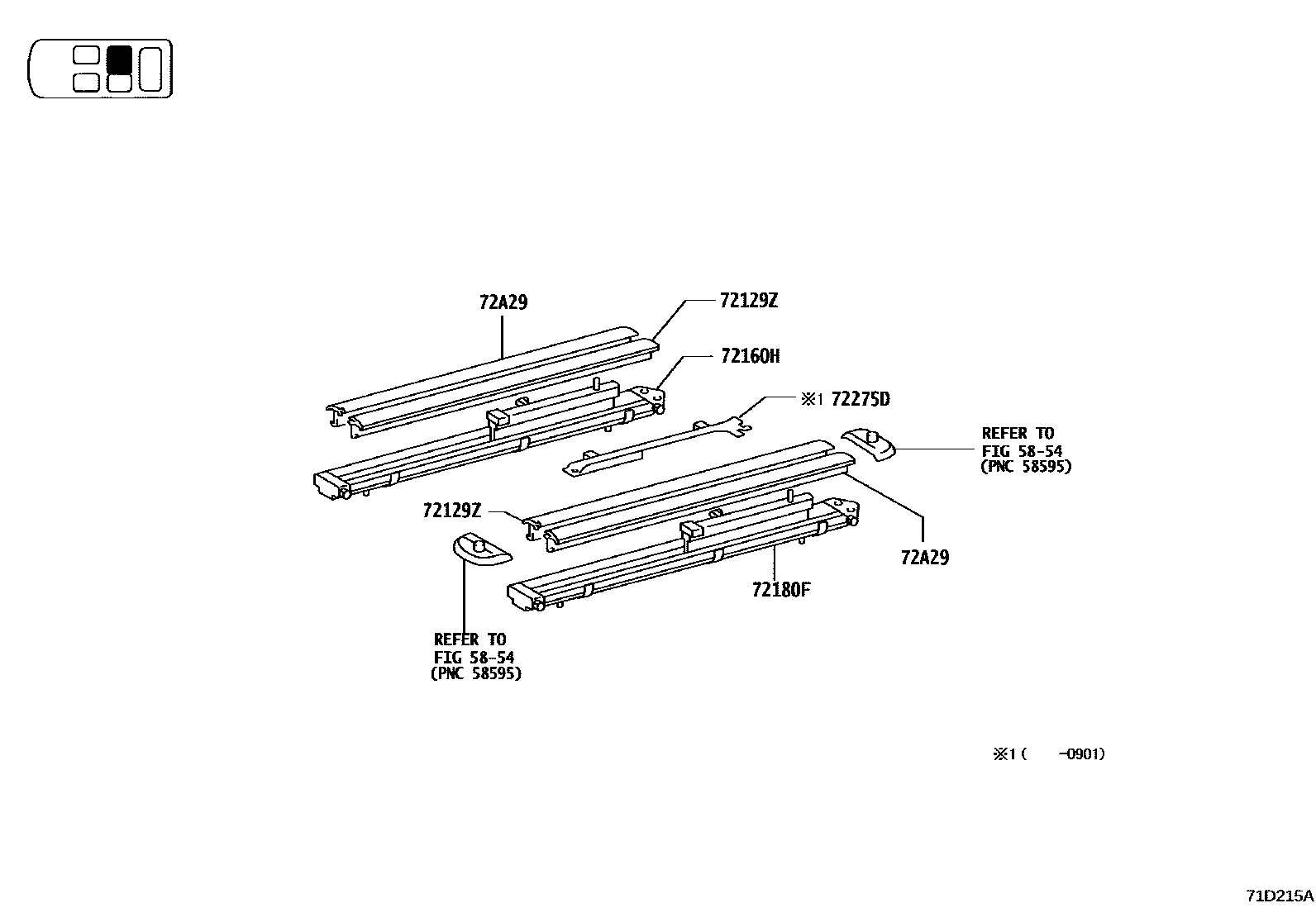

Toyota NOAH/VOXY — SEAT RAIL
5854FLOOR MAT & SILENCER PAD
72129ZPROTECTOR, SEAT TRACK LOWER RAIL
main72129-28240-B0×4iZRR70..V; ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU200706-201004
main72129-28300-B0×2iZRR70..(05S,08S)..(CBU,IV5);ZRR70..07S..(S,SI,V,X,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU; ZRR75..IV5201004-201401
main72129-28300-E0×2iZRR70..NOAH..08S..X..IV5;ZRR7#..NOAH..(G,SI,X)..CBU; ZRR75..NOAH..IV5201004-201401
72160HTRACK ASSY, REAR SEAT, OUTER RH
main72160-28650iZRR70..G,V; ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU200706-201004
72180FTRACK ASSY, REAR SEAT, INNER RH
main72180-28050iZRR70..G,V; ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU200706-201004
main72180-28090iZRR7#..07S..(SI,X,ZS)..CBU; ZRR7#..07S..IV5; ZRR70..07S..(SI,ZS)..CBU;ZRR75..07S..(SI,X,ZS)..CBU; ZRR70..07S..X..CBU201004-201401
72275DSTOPPER, REAR SEAT TRACK SLIDE, RH NO.1
main72275-28060×2iZRR70..G,V; ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU200706-200901
72A29PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
main72129-28230-B0×4iZRR70..V; ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU200706-201004
main72129-28290-B0iZRR70..08S..(CBU,IV5);ZRR75..(S,SI,V,X,Z,ZS)..CBU;ZRR70..07S..(S,SI,V,X,Z,ZS)..CBU; ZRR70..NOAH..07S..X..CBU; ZRR70..NOAH..07S..X..CBU;ZRR75..NOAH..07S..(SI,X)..CBU; ZRR75..IV5; ZRR75..NOAH..07S..(SI,X)..CBU201004-201401
main72129-28290-E0iZRR7#..NOAH..07S..X..CBU; ZRR70..NOAH..07S..X..CBU; ZRR70..NOAH..08S..X..IV5;ZRR7#..NOAH..(G,SI,X)..CBU; ZRR75..NOAH..IV5; ZRR75..NOAH..X..CBU201004-201401
DK.GRAY,TRIM2#
6 parts on this diagram · 3 diagrams in section
SEAT RAIL for Toyota NOAH/VOXY
This section contains 13 genuine Toyota parts for the SEAT RAIL system of the Toyota NOAH/VOXY. Key components include: FLOOR MAT & SILENCER PAD, CLIP(FOR SEAT TRACK LOWER RAIL PROTECTOR), PROTECTOR, SEAT TRACK LOWER RAIL, NO.3, PROTECTOR, SEAT TRACK LOWER RAIL, TRACK ASSY, REAR SEAT, OUTER RH.
