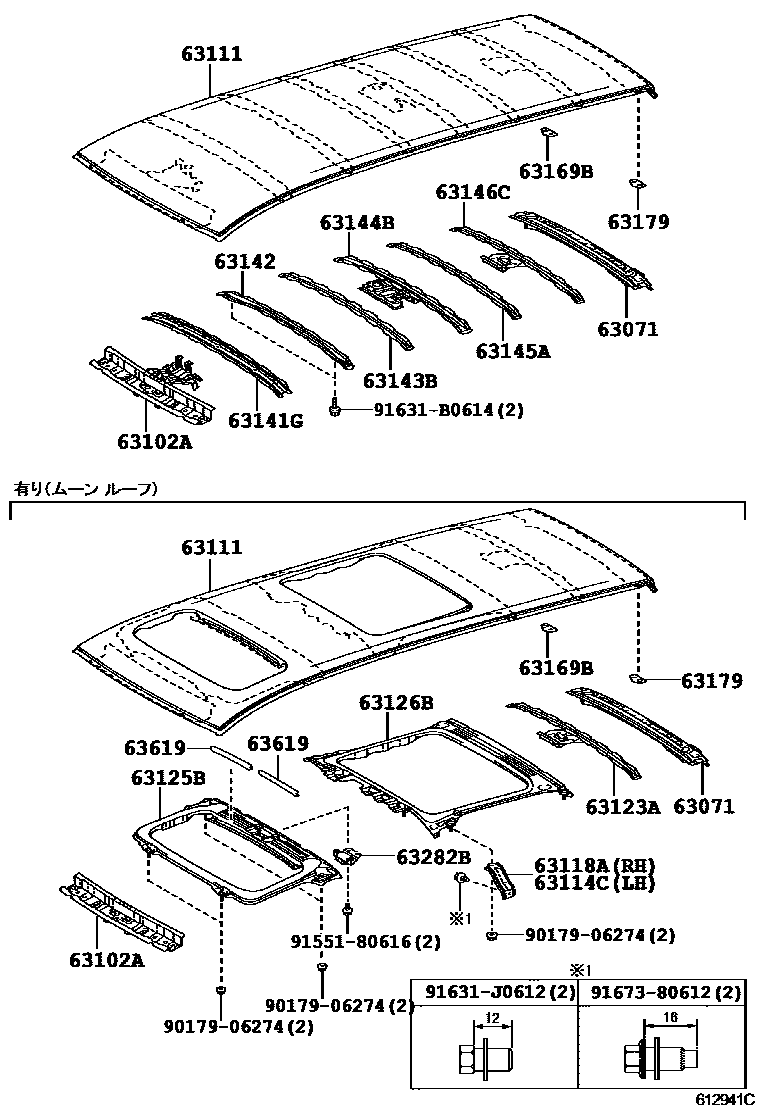

Toyota NOAH/VOXY — ROOF PANEL & BACK PANEL

0001 1 0002 1��(���������) 0003 1��(���������)

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-28050iZRR7#..CBU,IV5200706-201004

main63071-28070iZRR7#..CBU,IV5201004-201401

main63071-28060iZRR7#..IV5200706-201004

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-28070iZRR7#..CBU,IV5200706-201004

main63102-28080iZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(G,S,SI,V,Z,ZS)..CBU200706-201004

63111PANEL, ROOF

main63111-28280iZRR7#..CBU,IV5200706-201004

main63111-28290iZRR70..(G,S,SI,V,Z,ZS)..CBU;ZRR75..07S..(G,S,SI,V,Z,ZS)..CBU201004-201401

63114CSUPPORT, ROOF PANEL, FRONT LH

main63118-28010iZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(G,S,SI,V,Z,ZS)..CBU200706-201004

63118SUPPORT, ROOF PANEL, RH

main63118-28020iZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(G,S,SI,V,Z,ZS)..CBU200706-201004

63118ASUPPORT, ROOF PANEL, FRONT RH

main63118-28010iZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(G,S,SI,V,Z,ZS)..CBU200706-201004

63123AREINFORCEMENT, ROOF PANEL, REAR NO.1

main63128-28020iZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(G,S,SI,V,Z,ZS)..CBU200706-201004

63125BREINFORCEMENT, ROOF PANEL, FRONT

main63125-28090iZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(G,S,SI,V,Z,ZS)..CBU200706-201004

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-28010iZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(G,S,SI,V,Z,ZS)..CBU200706-201004

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-28150iZRR7#..CBU,IV5200706-201004

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-28100iZRR7#..CBU,IV5201004-201401

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-28100iZRR7#..CBU,IV5200706-201004

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63103-28100iZRR7#..(G,SI,TRASX,V,YY,ZS)..(CBU,IV5)201004-201401

main63103-28110iZRR7#..X..(CBU,IV5)200706-201004

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63127-28020iZRR7#..CBU,IV5200706-201004

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63104-28080iZRR7#..CBU,IV5201004-201401

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-35020iZRR7#..CBU,IV5200706-201004

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-35020iZRR7#..CBU,IV5200706-201004

63282BSTRIKER, TILT ROOF LOCK

main63282-44021iZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(G,S,SI,V,Z,ZS)..CBU200706-201004

63619COVER, TILT ROOF PANEL

main63619-28050×2iZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(G,S,SI,V,Z,ZS)..CBU200706-201004

9017906274

main90179-06274

9155180616

main91551-80616

91631B0614

main91631-B0614

91631J0612

main91631-J0612

9167380612

main91673-80612

24 parts on this diagram · 3 diagrams in section
