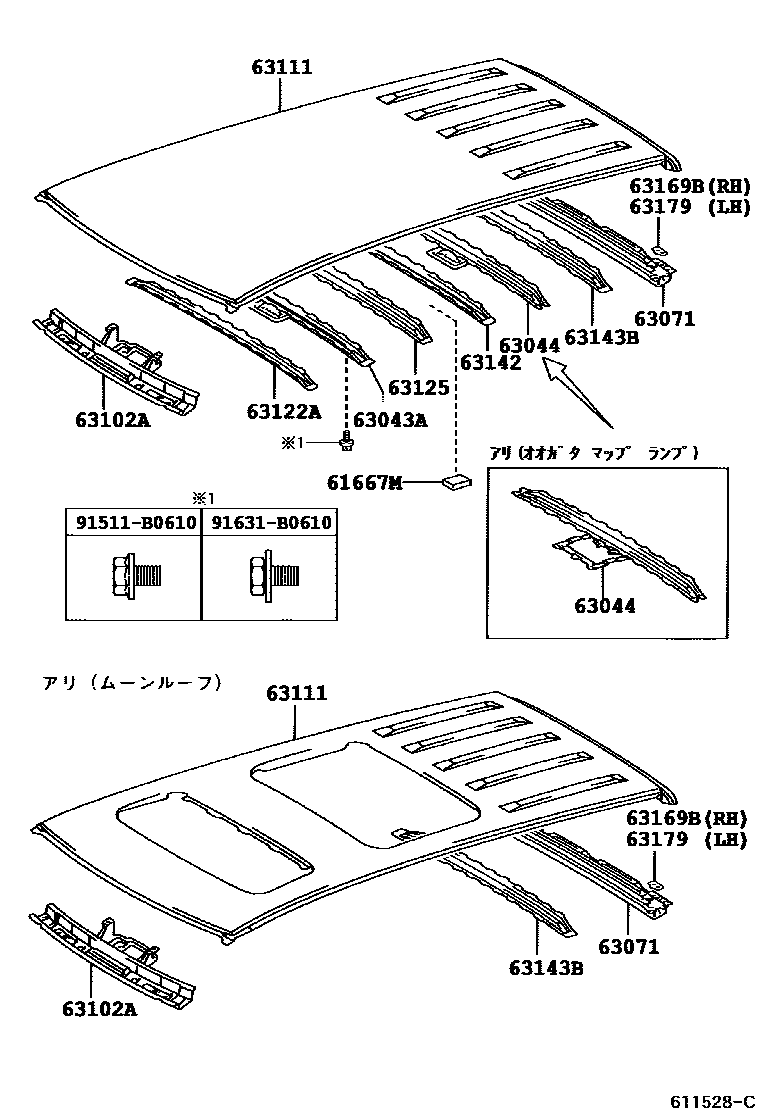

Toyota NOAH/VOXY — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

61667MSEAL, ROOF PANEL

main61667-28070×2iAZR6#200607

63043AREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.1

main63043-28010iAZR6#200111-200408

63044REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 A

main63044-28020iAZR6#..S,X,Z200111-200408

main63045-28010iAZR6#200408

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-28030iAZR6#200111-200408

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-28020iAZR6#200408

63111PANEL, ROOF

main63111-28230iAZR6#200111-200408

main63111-28240iAZR6#200111-200408

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63122-28070iAZR6#200111-200408

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-28060iAZR6#200111-200408

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-28070iAZR6#200111-200408

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-28060iAZR6#200111-200408

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-44010iAZR6#200111-200408

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-44010iAZR6#200111-200408

91511B0610

main91511-B0610

91631B0610

main91631-B0610

14 parts on this diagram · 3 diagrams in section
