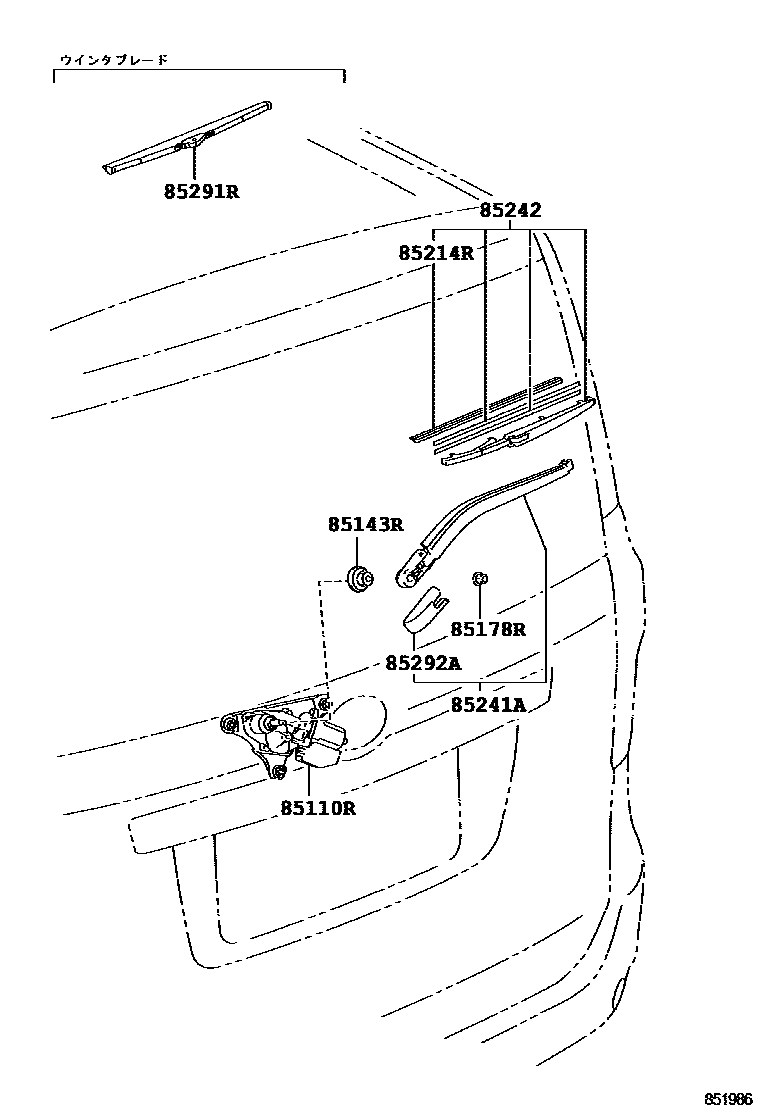

Toyota NOAH/VOXY — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-28090i200706-201004

85143RGROMMET, REAR WIPER MOTOR

main85143-52020i200706-201004

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158i200706-201004

85214RRUBBER, REAR WIPER

main85214-10100i200706-201004

85241AARM, REAR WIPER

main85241-28120i200706-201004

85242BLADE, RR WIPER

main85242-28080i200706-201004

85291RBLADE,REAR WIPER, WINTER

main85291-44100i200706-201004

85292ACAP, REAR WIPER ARM HEAD

main85292-28050i200706-201004

8 parts on this diagram · 1 diagram in section

REAR WIPER for Toyota NOAH/VOXY

This section contains 8 genuine Toyota parts for the REAR WIPER system of the Toyota NOAH/VOXY. Key components include: MOTOR ASSY, REAR WIPER, GROMMET, REAR WIPER MOTOR, NUT (FOR REAR WIPER ARM SETTING), RUBBER, REAR WIPER, ARM, REAR WIPER.
